Part no.: 10.01.38.00690

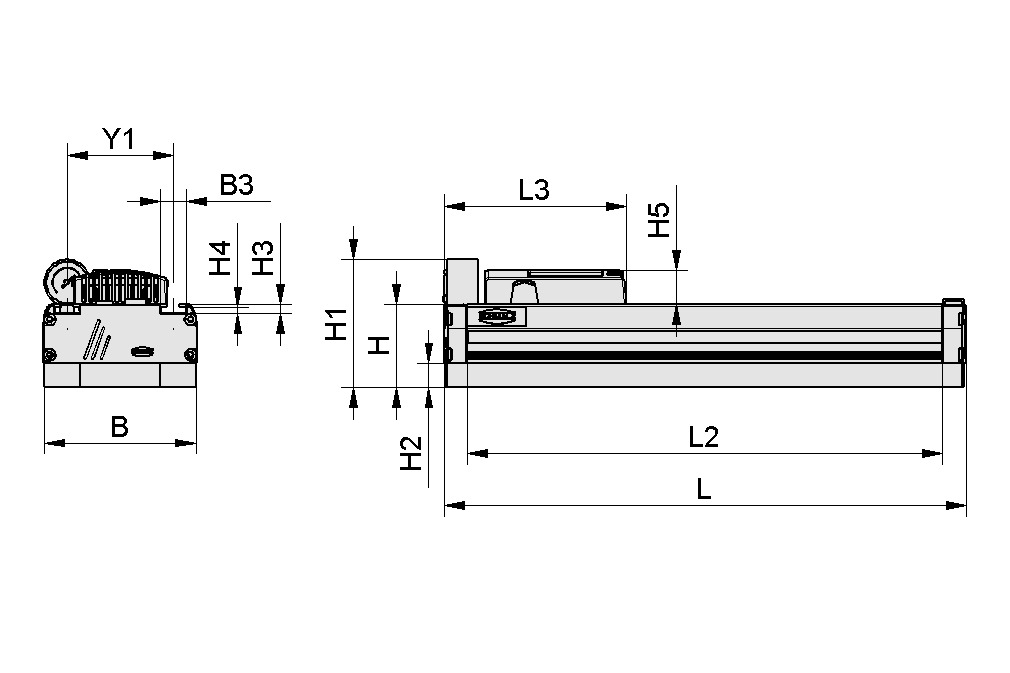

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 130 mm |
| B3 | 21.6 mm |
| H | 70 mm |
| H1 | 109 mm |
| H2 | 20 mm |
| H3 | 7.7 mm |
| H4 | 5.5 mm |
| H5 | 28 mm |
| L | 442 mm |
| L2 | 402 mm |
| L3 | 154 mm |
| Y1 | 90 mm |
| Valve type | SW |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Arrangement | 3R18 |
| Number of suction cells | 66 |
| Suction force at -250 mbar | 440 N |
| Suction rate (max.) | 1,050 l/min |
| Air consumption [l/min] | 250 l/min |
| Sealing element | Sealing Foam |
| Additional function area gripper | Filter |
| with | Filter |
| Weight | 2.5 kg |
| Product family | FXP |
