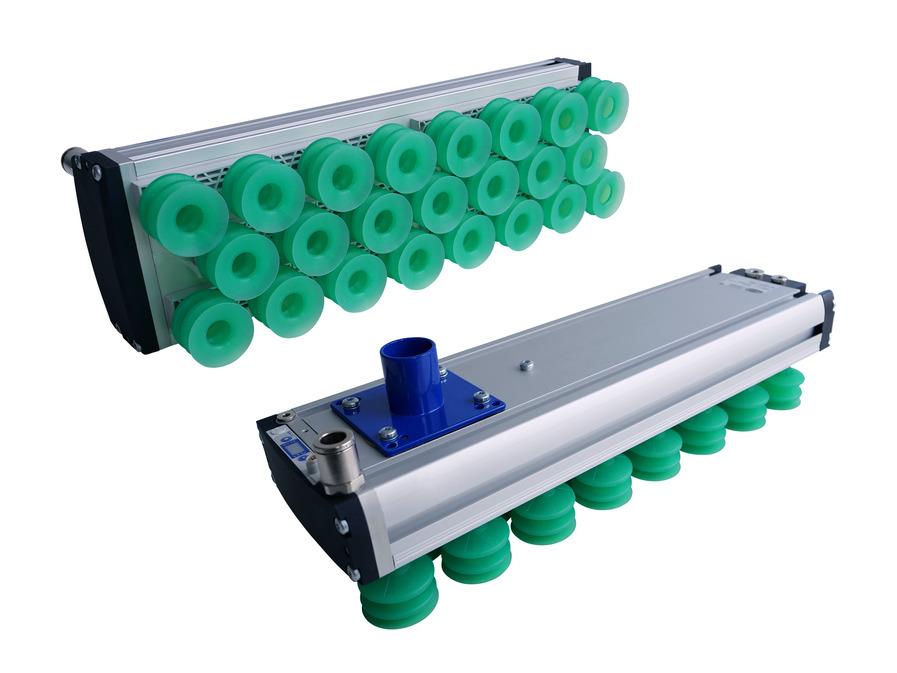

Part no.: 10.01.38.06818
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 130 mm |
| B3 | 21.6 mm |
| D | 32 mm |
| H | 106 mm |
| H1 | 147 mm |
| H2 | 56 mm |
| H3 | 7.7 mm |
| H4 | 5.5 mm |
| H5 | 41 mm |
| L | 442 mm |
| L1 | 446 mm |
| L2 | 402 mm |
| L3 | 80.9 mm |
| Y1 | 90 mm |
| Valve type | SW |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Arrangement | 3R54 |
| Number of suction cells | 23 |
| Suction force at -250 mbar | 250 N |
| Voltage | 24V - DC |
| with | No vacuum display |
| Additional function area gripper | 1x control valve vacuum / blow-off |
| Weight | 3.4 kg |
| Sealing element | Suction Cups |
| Required suction capacity for pu = -0.25 bar | 300 l/min |
| Product family | FMP |
