Part no.: 10.01.45.00012

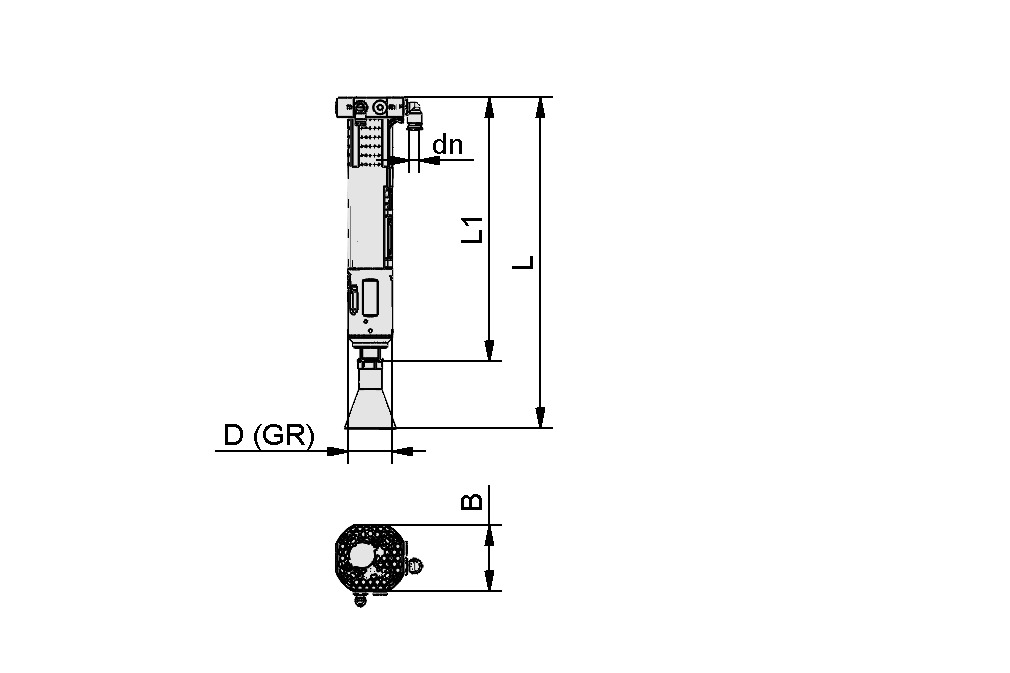

| Attribute | Value |
|---|---|
| D (GR) | 45 mm |
| L | 336 mm |
| Attribute | Value |
|---|---|
| Air consumption [l/min] | 140 l/min |
| Suction force (-600mbar) | 20 N |
| Suction rate (max.) | 180 l/min |
| Sound pressure level suction | 77 dB(A) |
| Max. vacuum | 600 mbar |
| with | Quick Start System |
| Weight | 0.56 kg |
| Size | 53 |
| Suction cup material | Polyurethane PU |
| Material hardness [Shore A] | 55 (Shore A) |
| Thread G1 | G3/8"-M |
| Length L | 37 (mm) |
| Utilization design | Bin Picker SBPG |
| Size | P/Pu |
| Outside diameter D | 45 (mm) |
| Color | blue |
| Measuring range [bar] | -1,0 ... 0,0 bar |
| Construction vacuum switch | with display |
| Electrical connection | Male connect M8, 4 pole |
| Indication | 2xLED |
| Protection type IP | IP 65 |
| Voltage DC | 24 V - DC |
| Pressure range (operating pressure) [bar] | 3.0 ... 10.0 bar |
| Type | 1,8m |
| Length L | 1760 (mm) |
| Weight | 2.5 (kg) |
| Voltage DC | 24 V - DC |
| Pressure range (operating pressure) [bar] | 3.0 ... 10.0 bar |
| Type | 2,2m |
| Length L | 2170 (mm) |
| Weight | 2.7 (kg) |
| Cross-beam connection | Universal holder |
| Suction cup connection | Rectangular adapter |
| Utilization design | Bin Picker SBPG |
| Outside diameter D | 45 (mm) |
| Color | blue |
| Length L | 50 (mm) |
| Width B | 50 (mm) |
| Suction cup type | Bellows suction cups SPB2 |
| Length L | 100 (mm) |
| Width B | 58 (mm) |
| Suction cup type | Bellows suction cups SPB2 |
| Length L | 100 (mm) |
| Width B | 58 (mm) |
| Material type | Foam O, Height 10 mm |
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Suction cup type | Bellows suction cups SPB2 |
| Length L | 120 (mm) |
| Width B | 120 (mm) |
| Material type | Foam O, Height 10 mm |
