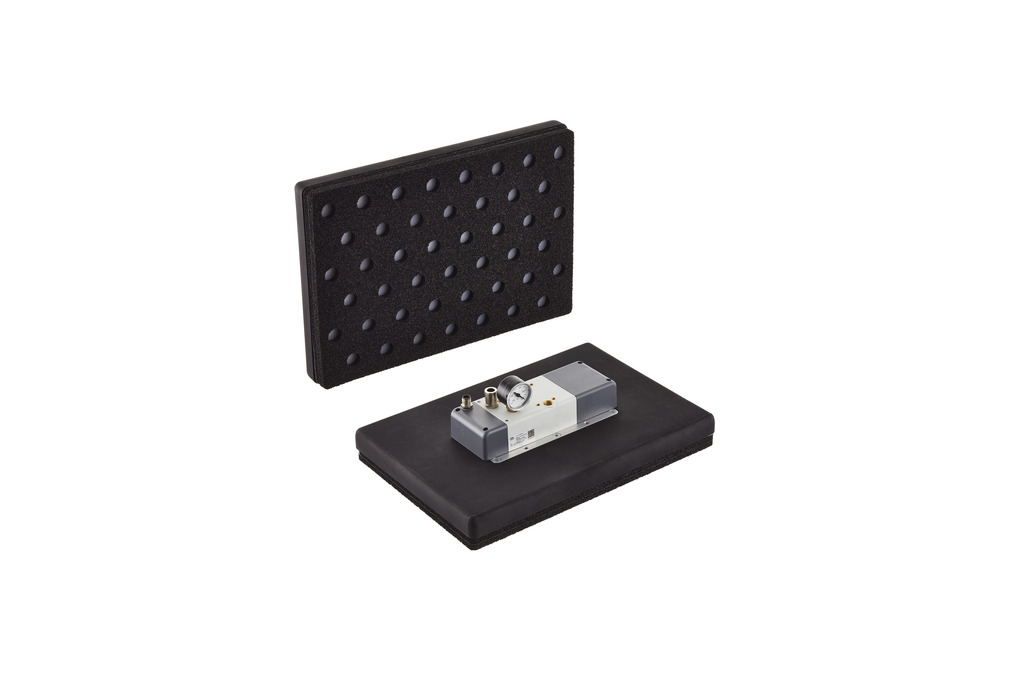

Part no.: 10.01.44.00565
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 280 mm |
| dn | 10 mm |
| G2 | M5-F |
| H | 86.3 mm |
| H1 | 131.8 mm |
| H2 | 20 mm |
| L | 400 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Shape | Integrated vacuum generation |
| Form | Rectangular |
| Nozzle diameter | 0.8 mm |
| Control valve | Normally open |
| Construction vacuum switch | PNP switching |
| Number of suction cells | 45 |
| Weight | 1.8 kg |
Documentation
Documentation
Spare parts
DI-PL 396x279 47x40.7 O20 KE10.01.44.00563Sealing plate (FQE)
| Length L | 396 (mm) |
| Width B | 279 (mm) |
| Grid spacing | 47 x 41 |
| Material type | Foam O, Height 20 mm |
| Additional function area gripper | Adhesive tape on one side |
Accessories
ASK B-M12-5 5000 K-5P21.04.05.00080Connection cable
| Electrical connection | Fem connect M12, 5 pol |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 5-pole |
| Material hose | PUR cable |
ASK WB-M12-5 5000 K-4P21.04.05.00557Connection cable
| Electrical connection | Elbow fem con M12, 5pol |
| Material hose | PUR cable |
| Cable length | 5000 (mm) |
| Connection 2 | Cable, 4-pole |
VAM 40 V U BAR10.07.02.00046Vacuum gauge (manometer)
for analogue measurement and
monitoring of the vacuum
| Width B | 23 (mm) |
| Height H | 46 (mm) |
| Outside diameter D | 40 (mm) |
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Shape manometers | Connection at bottom |
| Vacuum connection | G1/8"-M |
| Thread G1 | G1/8"-M |
| Weight | 0.06 (kg) |
VSi V D M8-410.06.02.00577Universal vacuum and pressure
switch with IO-Link function
| Measuring range [bar] | -1,0 ... 0,0 bar |
| Construction vacuum switch | with display |
| Electrical connection | Male connect M8, 4 pole |
| Indication | 2xLED |
| Protection type IP | IP 65 |
