Schmalz

Vacuum Operation Center VOC

Suction capacities of 40, 63 and 100 m³/h

Uninterrupted processing even with large parts, as liquids are automatically returned to the machine circuit

Vacuum and level monitoring guarantees maximum process control and transparency

Monitoring and operation via the machine panel possible, as sensor/control signals can be integrated

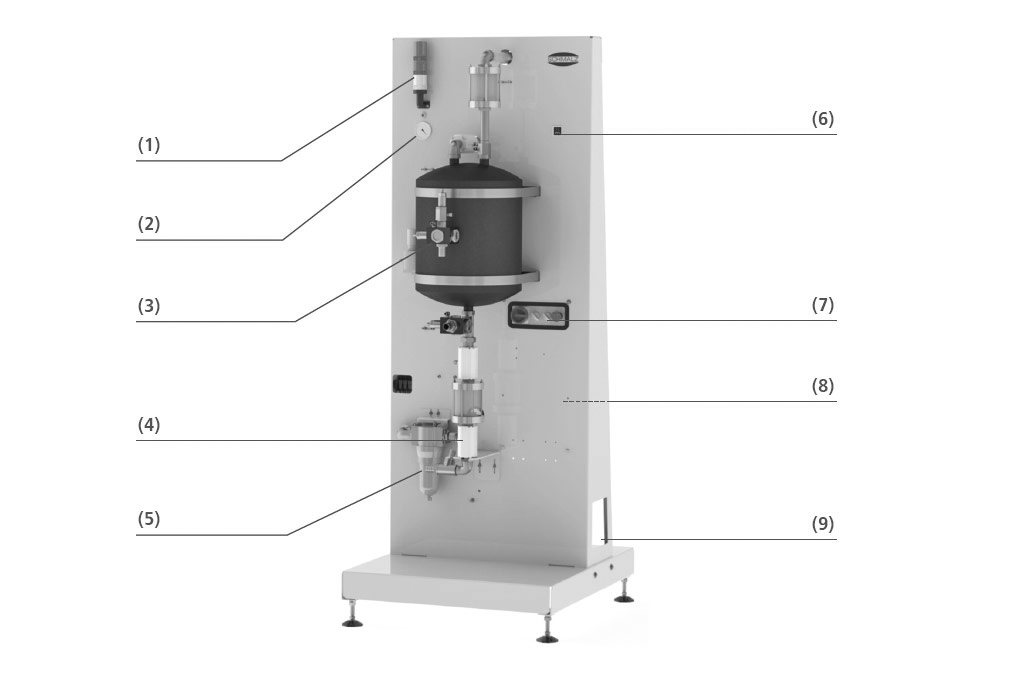

Design
  • Signal lamps and audible alarm sounds (1) and vacuum gauge (2) for vacuum level in reservoir
  • Vacuum and liquid reservoir (3)
  • Interface for automatic liquid recirculation (4)
  • Water separator (5) for separation of remaining liquid
  • Vacuum switch (6) with digital or analog output for the control; control panel (7) of self-sufficient execution
Technical Data
  • Central vacuum generation and monitoring
  • Suction capacities of 40, 63, 100 m³/h
