| Dimension (LxW) | 145x145 |
| Height H | 50 (mm) |
| Additional function vacuum block | Touch valve + diaphragm |
| Applications | For machine tables Flexmatic, Start and Pilot further accessories are required |

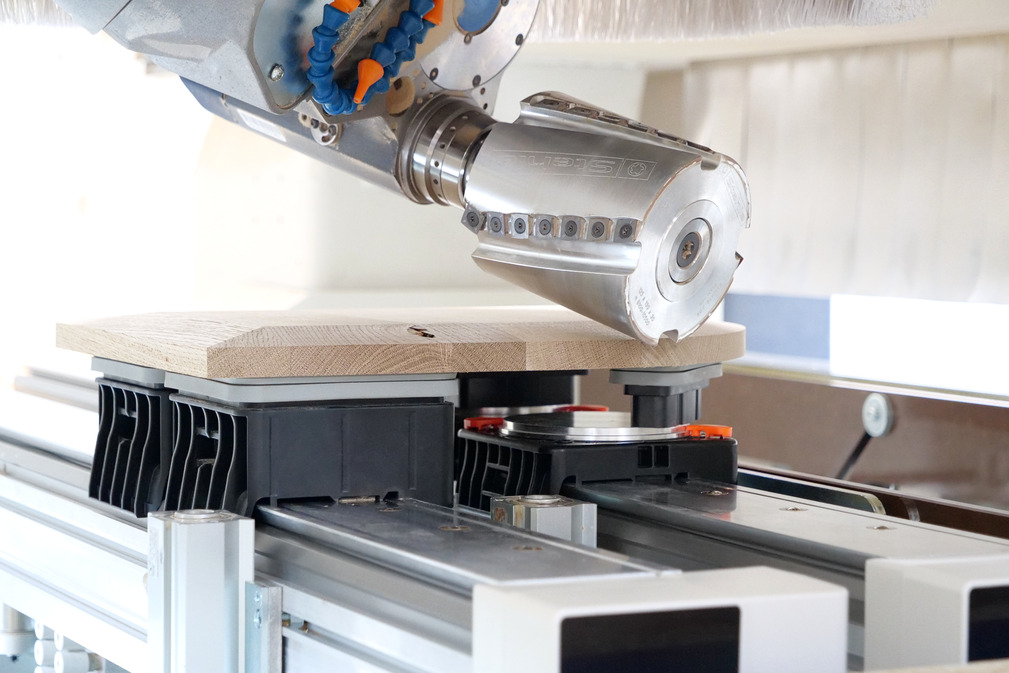

Vacuum Blocks VCBL-S6
For TV systems from SCM · Height 50 mm, 75 mm and 110 mm
Proven clamping concept guarantees highest holding forces and precision for optimum efficiency and quality in the production process
Range of flexible suction cups and accessories enables a wide range of applications in woodworking
Shorter set-up times and reduced spare parts costs due to pluggable suction cups, tool-free fixing and simple spare parts exchange
Replaceable suction plate with membrane prevents penetration of dirt and ensures constant performance
Integrated NFC tag for quick readout of product data and matching spare parts
Design
Design
- Suction plate with membrane (1) made of elastomer for optimum sealing behaviour, high friction forces and protection against penetrating chips
- Integrated NFC tag (2) for reading out product data via smartphone
- Easy-action touch valve (3) for automatic activation of the vacuum
- Suction cup (4) can be inserted into the mounting in 15° steps and fixed by turning the clamping levers (5)
- Robust main body (6) made of glass-fibre reinforced plastic with dovetail mount for fixing on SCM/Morbidelli consoles
Technical Data
Technical Data
- For SCM TV consoles of the series Flex, Flexmatic, Start or Pilot with 98 mm console width
- Integrated touch valve and NFC tag
- With mechanical pre-fixation
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
1 - 10 from 22 results
| Dimension (LxW) | 145x145 |
| Height H | 75 (mm) |
| Additional function vacuum block | Touch valve + diaphragm |
| Applications | For machine tables Flexmatic, Start and Pilot further accessories are required |
| Dimension (LxW) | 145x145 |
| Height H | 110 (mm) |
| Additional function vacuum block | Touch valve + diaphragm |
| Applications | For machine tables Flexmatic, Start and Pilot further accessories are required |
VCBL-S6 125x75x50 S-360-15 TV+ME
Part no.: 10.01.12.04461
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 125x75 |
| Height H | 50 (mm) |
| Arrangement | insertable 360°/15° |
| Additional function vacuum block | Touch valve + diaphragm |
| Applications | For machine tables Flexmatic, Start and Pilot further accessories are required |
VCBL-S6 125x75x75 S-360-15 TV+ME
Part no.: 10.01.12.04457
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 125x75 |
| Height H | 75 (mm) |
| Arrangement | insertable 360°/15° |
| Additional function vacuum block | Touch valve + diaphragm |
| Applications | For machine tables Flexmatic, Start and Pilot further accessories are required |
VCBL-S6 125x75x110 S-360-15 TV+ME
Part no.: 10.01.12.04453
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 125x75 |
| Height H | 110 (mm) |
| Arrangement | insertable 360°/15° |
| Additional function vacuum block | Touch valve + diaphragm |
| Applications | For machine tables Flexmatic, Start and Pilot further accessories are required |
VCBL-S6 120x50x50 S-360-15 TV
Part no.: 10.01.12.04462
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 120x50 |
| Height H | 50 (mm) |
| Arrangement | insertable 360°/15° |
| Additional function vacuum block | Touch valve |
| Applications | For machine tables Flexmatic, Start and Pilot further accessories are required |
VCBL-S6 120x50x75 S-360-15 TV
Part no.: 10.01.12.04458
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 120x50 |
| Height H | 75 (mm) |
| Arrangement | insertable 360°/15° |
| Additional function vacuum block | Touch valve |
| Applications | For machine tables Flexmatic, Start and Pilot further accessories are required |
VCBL-S6 120x50x110 S-360-15 TV
Part no.: 10.01.12.04454
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 120x50 |
| Height H | 110 (mm) |
| Arrangement | insertable 360°/15° |
| Additional function vacuum block | Touch valve |
| Applications | For machine tables Flexmatic, Start and Pilot further accessories are required |
VCBL-S6 130x30x50 S-360-15 TV
Part no.: 10.01.12.04463
Vacuum block for SCM/Morbidelli console - Type 6
| Dimension (LxW) | 130x30 |
| Height H | 50 (mm) |
| Arrangement | insertable 360°/15° |
| Additional function vacuum block | Touch valve |
| Applications | For machine tables Flexmatic, Start and Pilot further accessories are required |
