Product information

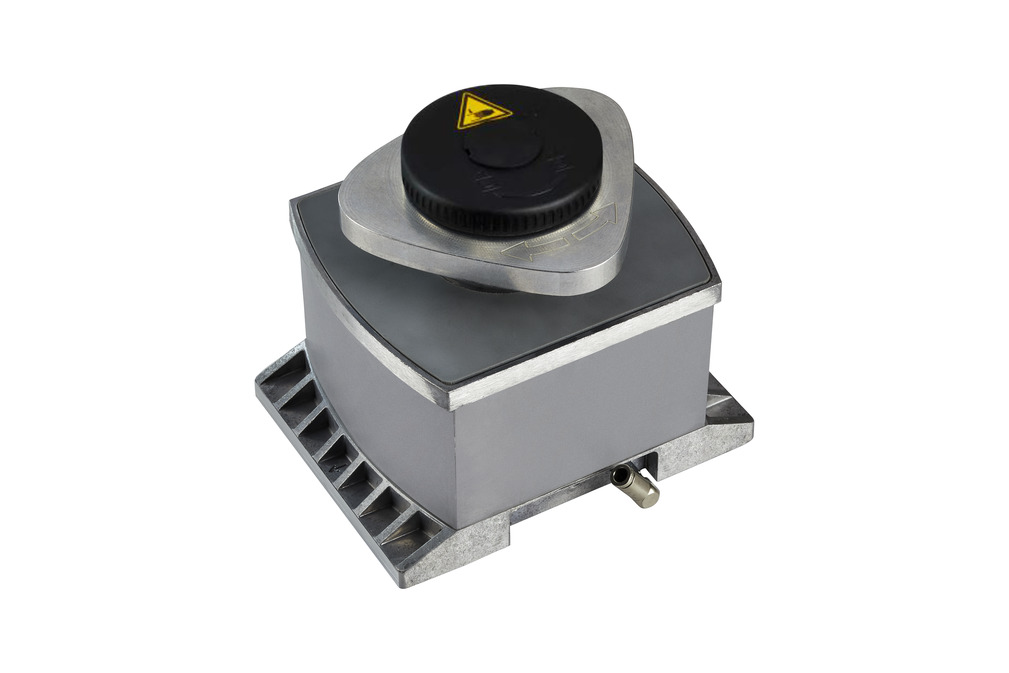

Part no.: 10.01.12.04759

Product information

Design Data

Design image

Attribute	Value
B	133 mm
B1	162.5 mm
H	100 mm
H1	233.5 mm
L	171 mm

Documentation

Spare parts

VCDR 166x113x6.6 VCMC-G

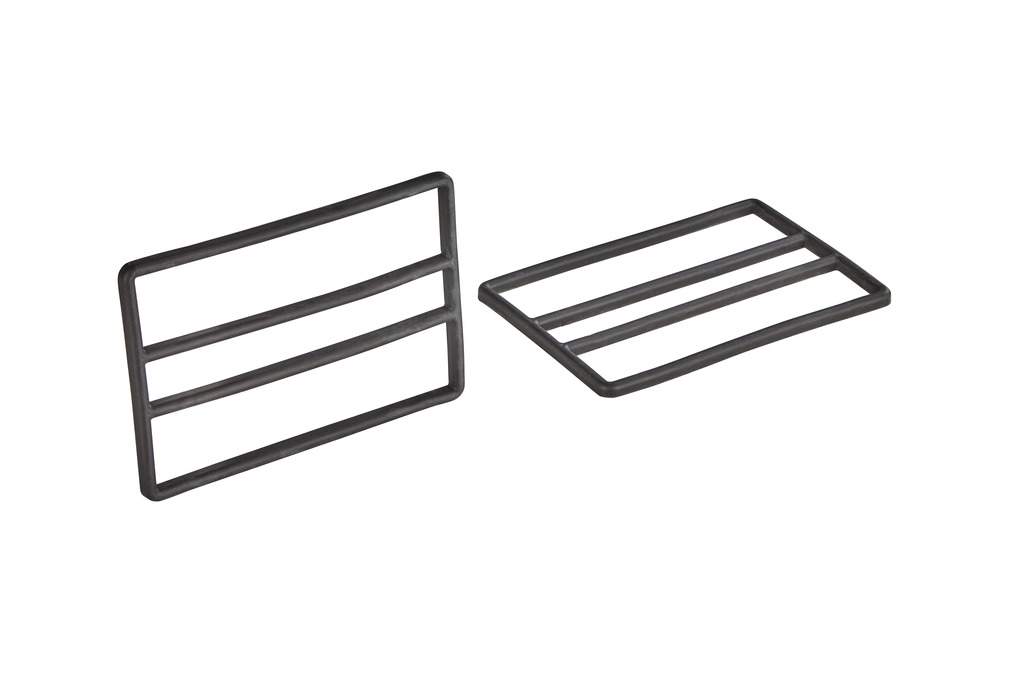

VCDR 166x113x6.6 VCMC-G 10.01.12.04758 Sealing frame (bottom)

Length L	166 (mm)
Width B	113 (mm)
Height H	6.6 (mm)
Utilization design	Mechanical clamp VCMC-G

SPAN-TELL 110 EXZ VCMC

SPAN-TELL 110 EXZ VCMC 10.01.12.04239 Clamping disc for mechanical clamp VCMC

Outside diameter D	110 (mm)
Installation position	EXZ
Utilization design	Mechanical clamp VCMC
