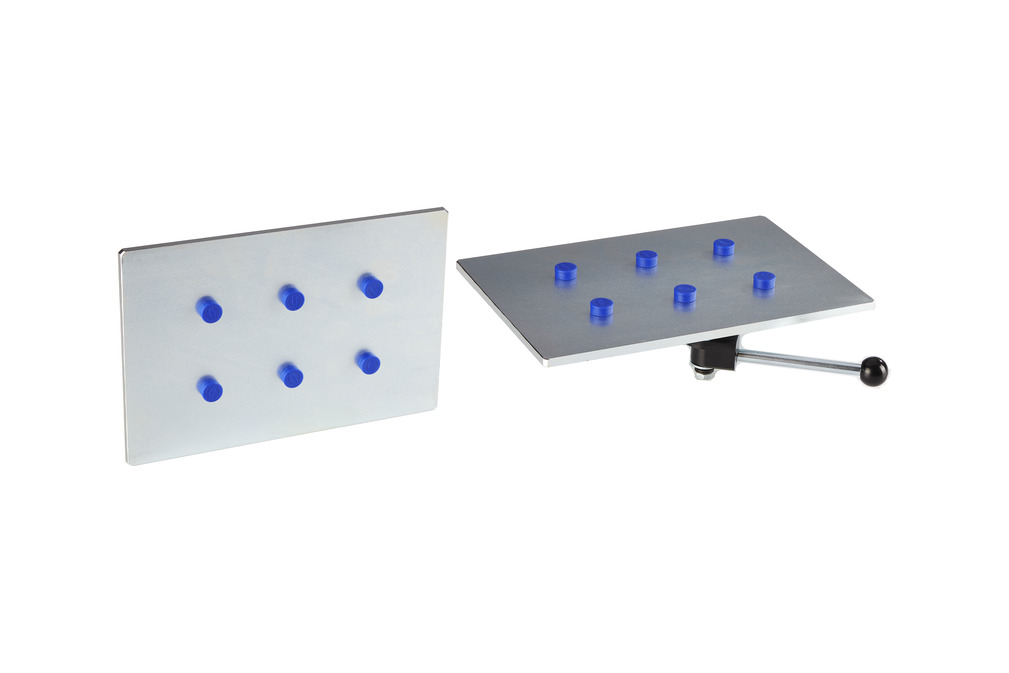

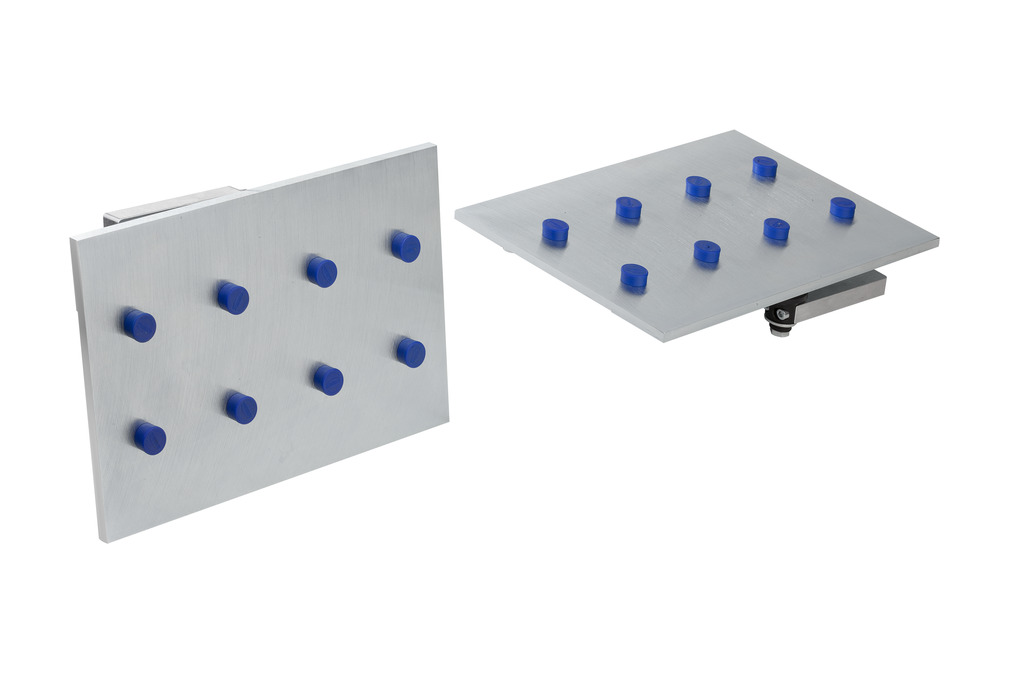

ISMST 19-7 4ISMST10.01.14.00847Sealing magnet for
clamping system Innospann
| Outside diameter D | 7 (mm) |
| Height H | 11.5 (mm) |
Part no.: 10.01.14.00025
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 200 mm |
| H | 8 mm |
| L | 300 mm |
Technical Data
Technical Data
| Attribute | Value |
|---|---|
| Weight | 2.05 kg |
Documentation
Documentation
Spare parts
Accessories
ISCUP Cup 1 80x80x1610.01.15.00209Suction cup for Innospann
| Dimension (LxW) | 80 x 80 |
| Length L | 80 (mm) |
| Width B | 80 (mm) |
| Height H | 16 (mm) |
ISCUP Cup 2 80x40x1610.01.15.00210Suction cup for Innospann
| Dimension (LxW) | 80 x 40 |
| Length L | 80 (mm) |
| Width B | 40 (mm) |
| Height H | 16 (mm) |
ISCUP Cup 3 80x28x1610.01.15.00211Suction cup for Innospann
| Dimension (LxW) | 80 x 28 |
| Length L | 80 (mm) |
| Width B | 28 (mm) |
| Height H | 16 (mm) |
ISCUP Cup 1 80x80x3010.01.15.00003Suction cup for Innospann
| Dimension (LxW) | 80 x 80 |
| Length L | 80 (mm) |
| Width B | 80 (mm) |
| Height H | 30 (mm) |
ISCUP Cup 2 80x40x3010.01.15.00004Suction cup for Innospann
| Dimension (LxW) | 80 x 40 |
| Length L | 80 (mm) |
| Width B | 40 (mm) |
| Height H | 30 (mm) |
ISCUP Cup 3 80x28x3010.01.15.00005Suction cup for Innospann
| Dimension (LxW) | 80 x 28 |
| Length L | 80 (mm) |
| Width B | 28 (mm) |
| Height H | 30 (mm) |
ISMB 80x80x2610.01.15.00214Mono-Base for Steelplate
and Adapterplate
| Base area | 80 x 80 mm |
| Length L | 80 (mm) |
| Width B | 80 (mm) |
| Height H | 26 (mm) |
ISZR-V 80x3010.01.15.00248Spacer ring, Innospann
- Extension -
| Outside diameter D | 80 (mm) |
| Height H | 30 (mm) |
