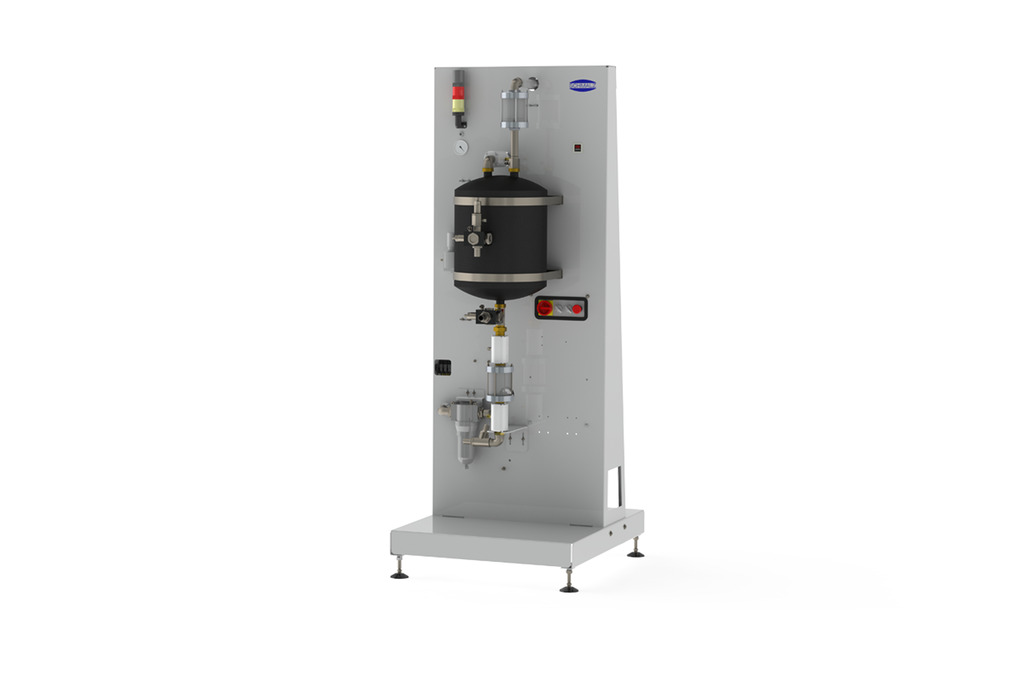

Part no.: 10.01.27.01881
Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 1,000 mm |
| D | 32 mm |
| D1 | 32 mm |
| H | 2,200 mm |
| L | 940 mm |
| L1 | 1,000 mm |
Documentation
Documentation
Spare parts
VAM 67 V H-SE BAR/PSI10.07.02.00016Vacuum gauge (manometer)
for analogue measurement and
monitoring of the vacuum
| Outside diameter D | 67 (mm) |
| Measuring range [bar] | -1,00 ... 0,00 bar |
| Shape manometers | For panel mounting |
| Vacuum connection | G1/8"-M |
| with_02 | BAR/PSI scale |
EVE-OG 100 AC3 AQUA IE310.03.02.00094Oil-lubricated pump for maximum
vacuum levels, requires little
maintenance
| Length L | 700 (mm) |
| Current type | Three phase A.C. |
| Voltage at 50 Hz | 190-208 V / 380 - 415 V AC3 |
| Voltage at 60 Hz | 220 - 230 V / 440 - 480 V AC3 |
| Rated power at 50 Hz | 2.7 (kW) |
| Rated power at 60 Hz | 3.4 (kW) |
| Suction rate (50 Hz) | 100 (m³/h) |
FILT-EINS 77x90 PE WAS-ABS10.07.01.00310Filter insert (round)
| Utilization design | Water separator |
| Outside diameter D | 77.2 (mm) |
| Length L | 90 (mm) |
SIEB-EINS 36x 50 VOC10.01.27.01621Screen insert
| Utilization design | Vacuum Operation Center |
| Outside diameter D | 36 (mm) |
| Length L | 50 (mm) |
| Size | 65M-0,3 |
