VRS-STEC 8x18.510.08.06.00013Sealing plug
| Operating temperature | °C |
| Outside diameter D | 8 (mm) |
| Length L | 18.5 (mm) |
Part no.: 10.01.27.01897
Documentation
Documentation
Spare parts
HSV 12 3/2 G1/2-IG10.05.07.00036Manual slide valve for manual
switching of vacuum and
compressed air
| Nominal size | 12 (mm) |
| Function valve | 3/2 multiway valve |
| Thread G1 | G1/2"-F |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
SET VC-MPL 4/210.01.27.01733Connection set for hose connection
| Utilization design | Matrix-Plate |
| Connection | Hose 4/2 |
VSL 8-6 PU MI-TR10.07.09.00003Hose for vacuum and
compressed-air systems
| Outside diameter D | 8 (mm) |
| Internal diameter d | 6 (mm) |
| Length max. | 500 (m) |
| Material hose | PU |
| Bending radius min. | 45 (mm) |
| Pressure range (operating pressure) [bar] | -0.95 ... 10.00 bar |
| Operating temperature | -35 ... 60 °C |
| Color | Milky-transparent |
STV-W G1/4-AG 810.08.02.00161Push-in Fitting, swivelling
elbow
| Thread G1 | G1/4"-M |
| Outer hose diameter | 8 (mm) |
| Material | Nickel plated |
| Operating temperature | -20 ... 80 °C |
| Length L | 24 (mm) |

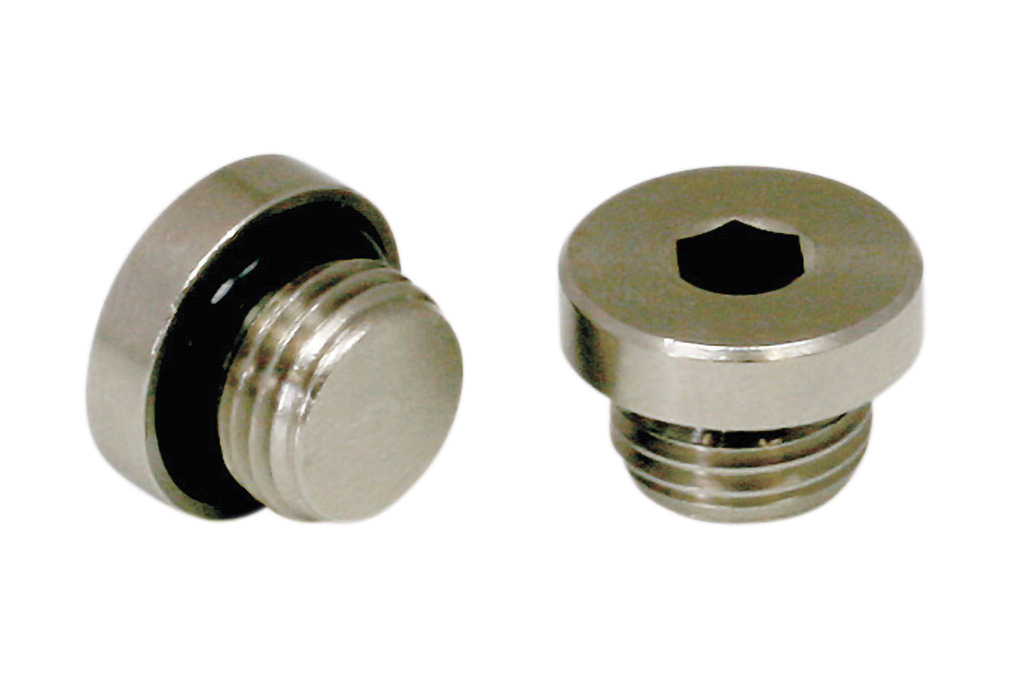

VRS-SB G1/4-AG ISKT O-Ring10.08.06.00044Sealing screw with collar
| Thread G1 | G1/4"-M |
| Material | Brass |
| Surface | nickel plated |
