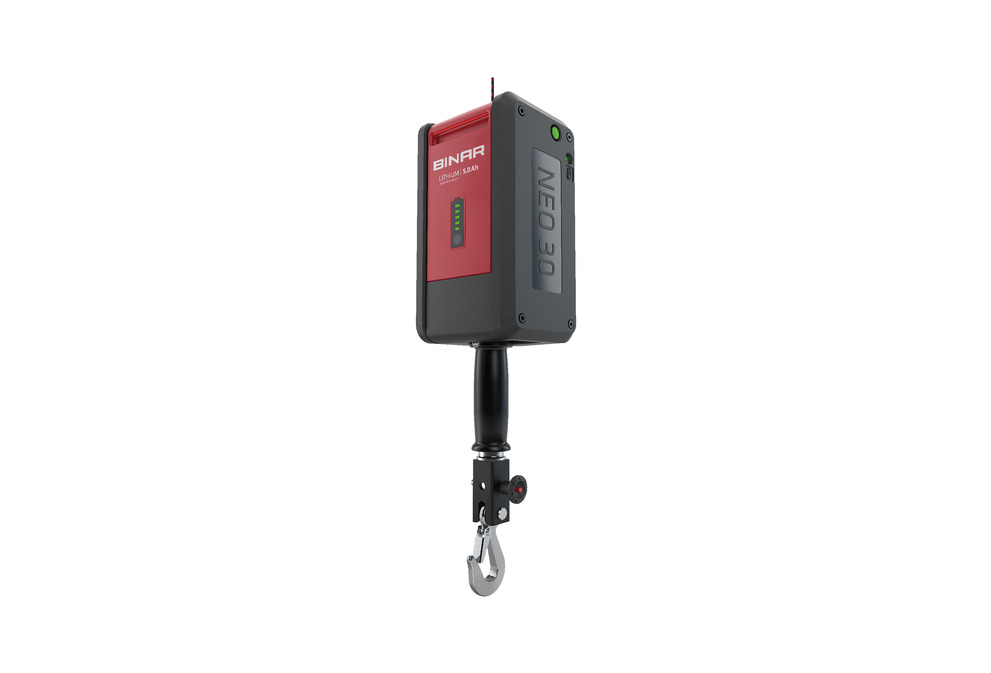

Part no.: 18.05.08.00015

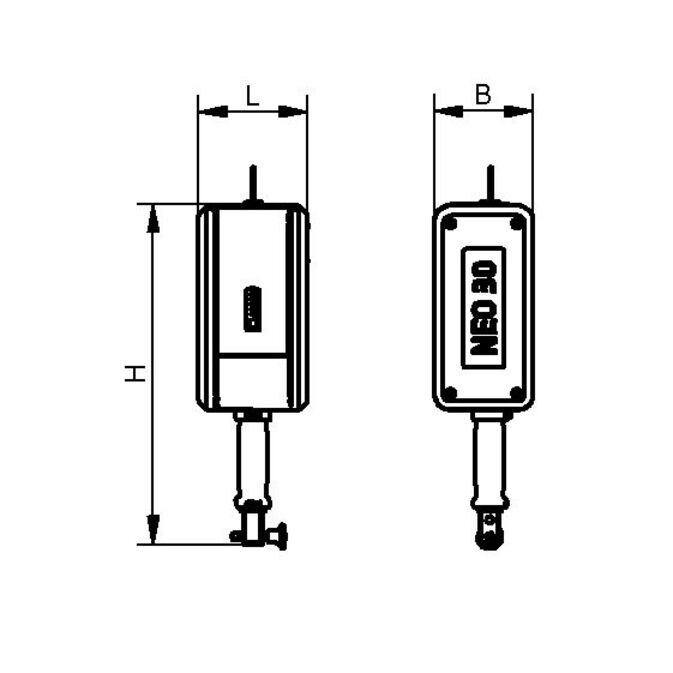

| Attribute | Value |
|---|---|
| Z (Stroke) | 1,400 mm |
| L | 121 mm |
| B | 132 mm |
| H | 410 mm |
| Attribute | Value |
|---|---|
| Drive type | Electrical |
| Weight | 7.5 kg |
| Lift capacity | 30 kg |
| Stroke speed (maximum) | 0.5 m/sec |
| Length L | 74 (mm) |
| Width B | 37 (mm) |
| Height H | 168 (mm) |
| Internal diameter d | 33 (mm) |
| Width B1 | 20 (mm) |
| Utilization design | Neo 30 |
| Connection | Rectangular adapter |
| Cross-beam connection | Bolt adapter A1 |
| Utilization design | Neo 30 |
| Length L | 100 (mm) |
| Width B | 180 (mm) |
| Height H | 25 (mm) |
| Voltage | 14,4V - DC |
| Capacity | 5 (Ah) |
| Primary voltage | 24V-DC |
| Voltage | 14,4V - DC |
| Rated current | 1.7 (A) |
| Utilization design | Neo 30 |
| Clamping range [mm] | 270.0 ... 500.0 mm |
| Utilization design | Neo 30 |
| Length L | 95 (mm) |
| Width B | 70 (mm) |
| Height H | 236 (mm) |
| Internal diameter d | 32 (mm) |
| Width B1 | 70 (mm) |
| Length L | 65 (mm) |
| Width B | 81 (mm) |
| Height H | 267 (mm) |
| Internal diameter d | 15 (mm) |
| Width B1 | 10 (mm) |
| Utilization design | Neo 30 |
| Size | 27 |
| Holding force | 300 (N) |
| Utilization design | Neo 30 |
