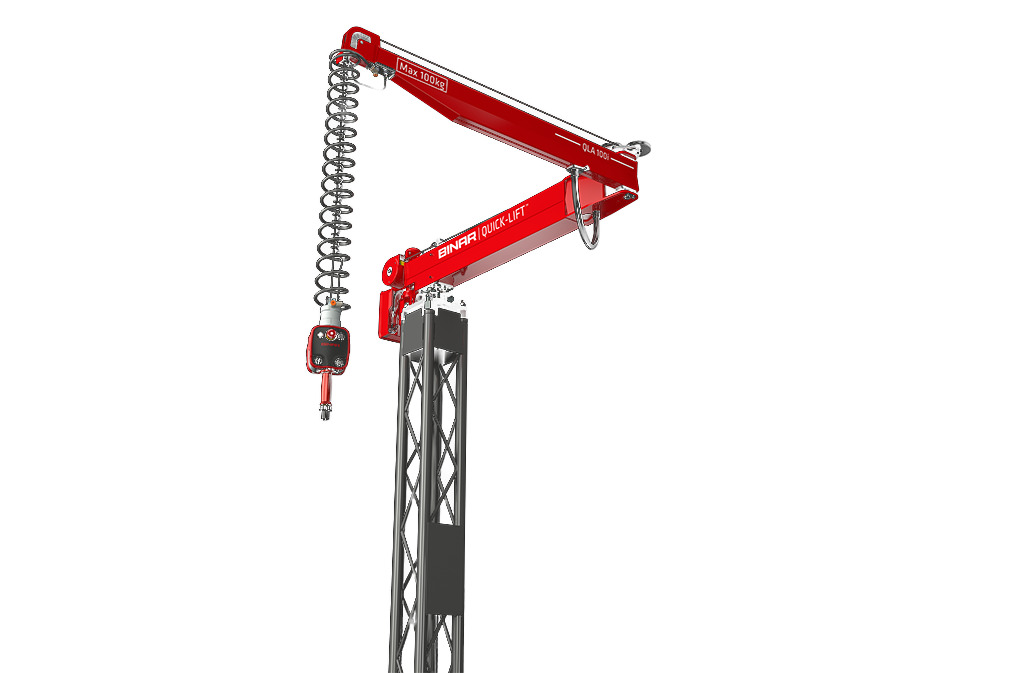

Our control handle incorporates all our know-how for the optimum connection between efficiency and ergonomics. In combination with our lifting arms, we manufacture lifting devices for 50, 100, 200 and 300 kg. The lifting arms can be mounted on a column on the floor or on a steel structure on the ceiling. The movement of the control handle is moved by means of the patented handle. Only a small initial force is required for the up/down movement. As soon as the user releases the handle, the up/down movement is stopped immediately.
The unique mechanical, electrical and pneumatic rotary feed-through, which is integrated into the system, allows easy operation and minimizes maintenance.
Easy operation both on the control unit and directly on the workpiece (= Auto Balance Mode) regardless of the weight.
A high level of safety is achieved by our intelligent control system.
With the free iLab PC program, various parameters can be conveniently set and optimally adapted to the application.
Maximum cost efficiency due to very low power consumption, high reliability and long service life.
Handling systems for the Chinese market
The product area of handling systems is covered in China by our experienced partner Binar Handling. With this cooperation, we ensure that our high standards for quality, efficiency and service are also met in China.
If you require support or further information, please feel free to contact Binar Handling directly.
Gripper for round bars
Pneumatic gripper for handling round bars up to a weight of 45 kg (depending on the shape and gripping position). The integrated inductive sensor prevents incorrectly gripped workpieces from being lifted.
Vacuum gripper
Versatile gripper as the foam adapts to the shape of the workpiece.
Vacuum gripper with suction plates
Tiltable vacuum gripper with suction plates for handling flat and suction-tight workpieces.
Magnetic gripper
Pneumatic magnetic gripper for handling ferromagnetic workpieces with a payload of up to 110 kg.
Magnetic gripper
Pneumatic magnetic gripper for handling ferromagnetic workpieces with a payload of up to 275 kg. The gripper can be tilted in two directions.
Scissor grabs
Adjustable mechanical gripper for handling workpieces with different dimensions. The gripper can be quickly and easily adapted to the workpiece to be handled.
| Size | QLA 50i | QLA 100i | QLA 200i | QLA 300i | ||||||
| Boom length | 3m | 4m | 3m | 4m | 5m | 3m | 4m | 5m | 3m | 4m |
| Column mounting (standard column 3m) | x | x | x | x | x | x | x | x | x | x |
| Ceiling mounting | x | x | x | x | x | |||||
Additional technical information:
Control handle for mechanical grippers
For mechanical load handling attachments.
Control handle with 5/2-way valve
Can be used in combination with a pneumatically controlled gripper. An electronically controlled gripping function allows release only when the load is completely set down.
Control handle with pneumatic cylinder
Suitable for pneumatic or mechanical grippers.
Control handle with vacuum ejector
Suitable for vacuum grippers due to the built-in ejector.
External control handle
In connection with a Quick-Lift control unit, a workpiece can be handled off-center.
Control unit for mechanical grippers
Can be combined with up to three external control handles. Use in connection with a mechanical gripper.
Control unit with 5/2 pneumatic valve
Can be combined with external control handles. Use in connection with a mechanical or pneumatic gripper.
