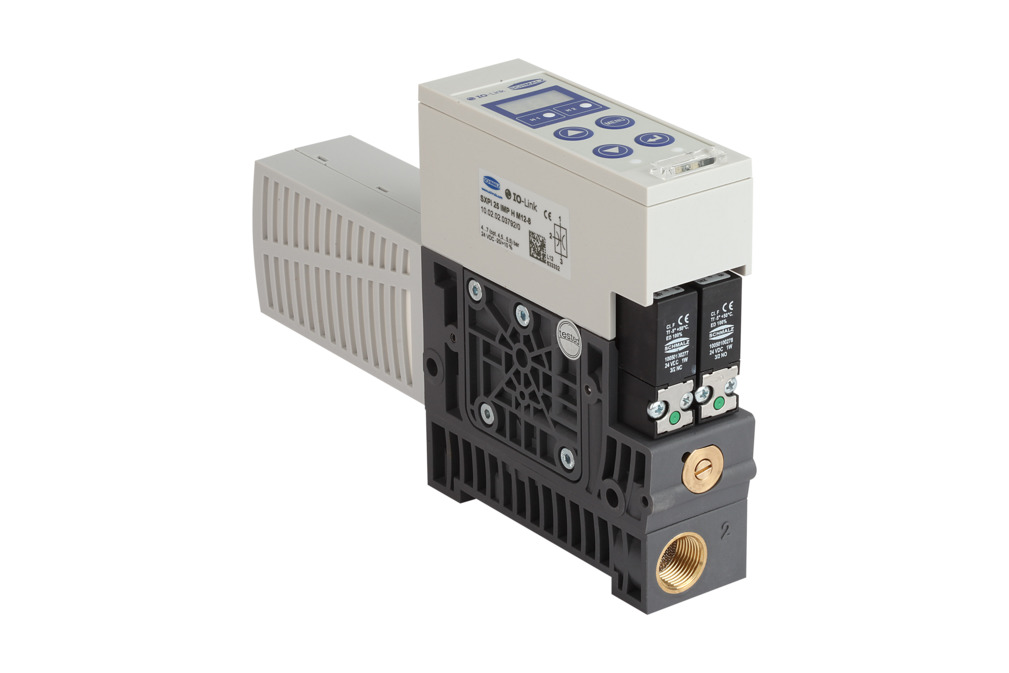

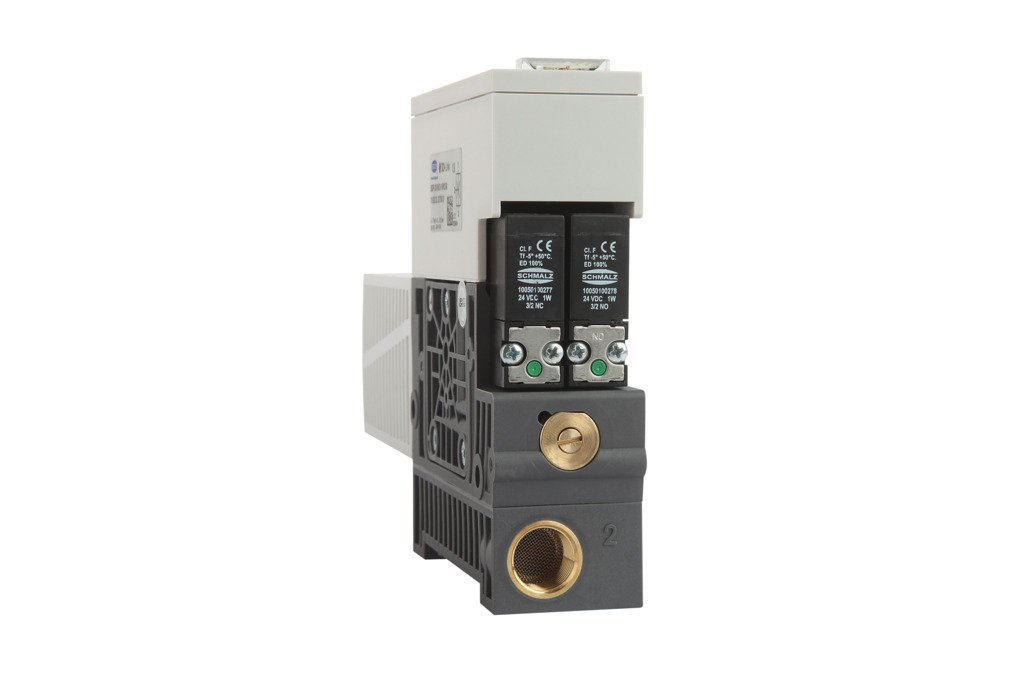

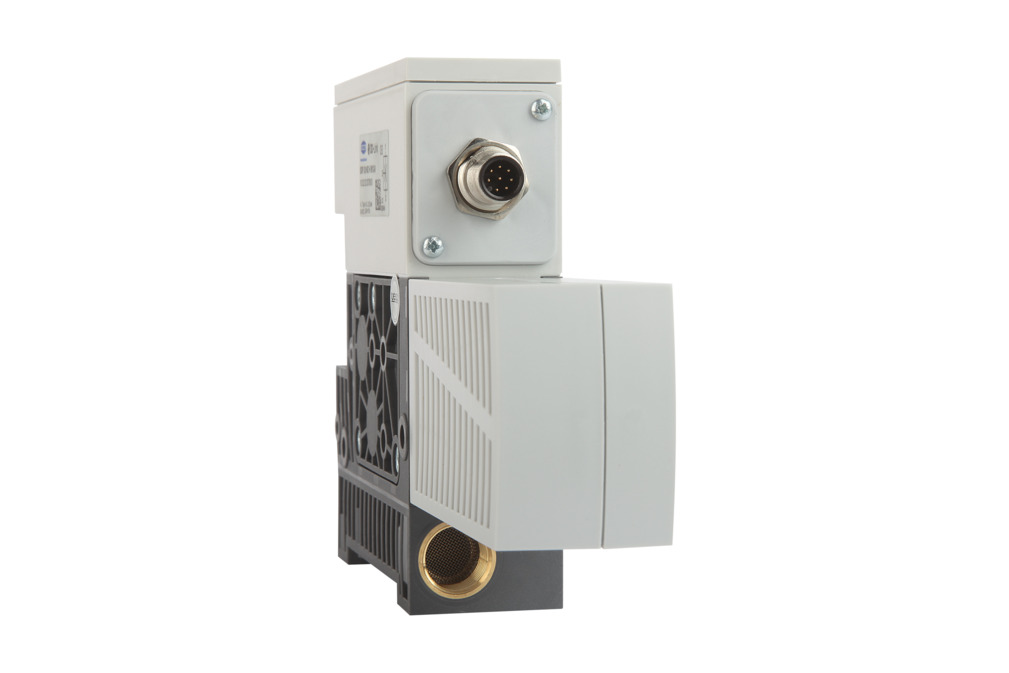

SXPi 25 IMP H M12-8

Part no.: 10.02.02.03792

Compact ejector with Condition Monitoring and air-saving function

Nozzle diameter	2.5 (mm)
Control valve	Impulse valve
Pneumatic connection	Horizontal
Electrical connection	Male connect M12, 8 pol
Communication	IO-Link (Class A)
Suction rate (max.)	185 (l/min)
Air consumption suction	290 (l/min)
Pressure range (operating pressure) [bar]	3.0 ... 6.0 bar
Max. vacuum	850 (mbar)
Sound pressure level free	67 (dB(A))
Protection type IP	IP 65

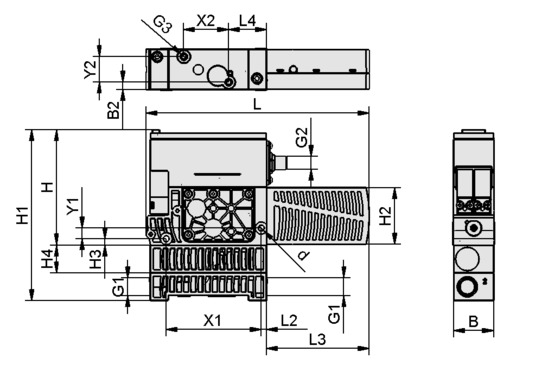

Design Data

Attribute	Value
B	39 mm
B2	6.8 mm
d	5.5 mm
G1	G3/8"-F
G2	M12x1-M
G3	M5-F
H	108 mm
H1	134 mm
H2	54 mm
H3	6 mm
L	210 mm
L2	5 mm
L3	97 mm
L4	35.5 mm
X1	89 mm
X2	42 mm
Y1	10 mm
Y2	24 mm

Technical Data

Attribute	Value
Nozzle diameter	2.5 mm
Degree of evacuation	85 %
Suction rate (max.)	185 l/min
Suction rate (max.)	11.1 m³/h
Suction rate (max.)	6.53 cfm
Air consumption suction	290 l/min
Air consumption suction	17.4 m³/h
Air consumption suction	10.24 cfm
Sound pressure level free	67 dB(A)
Pressure range (operating pressure) [bar]	43.5 ... 87.0
Pressure range (operating pressure) [bar]	3.0 ... 6.0 bar
Max. air consumption blow-off	200 l/min
Air consumption blow-off	7.06 cfm
Air consumption blow-off	12 m³/h
Recommended hose internal diameter compressed air	8 mm
Recommended hose internal diameter vacuum	9 mm
Control valve	Impulse valve
Weight	0.77 kg
Operating temperature	0 ... 50 °C
Product family	SXPi

Note: The supply voltage for vacuum switches and solenoid valves is 24V DC Air consumption: At optimal operating pressure Hose diameter: For max. length 2 m

Performance Data

MetricImperial

	2	3	4	5	6	7
SXPi/SXMPi	550.00	780.00	900.00	880.00	860.00	835.00

	50	100	200	300	400	500	600	700	800
SXPi/SXMPi 25	0.02	0.03	0.06	0.10	0.15	0.18	0.26	0.46	0.87
SXPi/SXMPi 30	0.01	0.02	0.05	0.08	0.11	0.15	0.22	0.37	0.69

	0	50	100	200	300	400	500	600	700	800
SXPi/SXMPi 25	185.00	170.00	158.00	135.00	114.00	95.00	76.00	56.00	33.00	10.00
SXPi/SXMPi 30	220.00	199.00	184.00	160.00	138.00	115.00	91.00	63.00	39.00	15.00

Documentation

The matching documentation for this product is available in this section.

Documentation	Language
Operating instructions	English
Brief operating instructions	English
Maintenance instructions	English
EU declaration of conformity	English
Product family overview	English
UKCA declaration of conformity	English
