Elbow Connectors (Geared) SXT-ANG
Gearing with 10° pitch
Durable, lighweight elbow connectors with gearings (form-fitting) optimized for highly dynamic processes with maximum output rate
Lean portfolio enables simple assembly of a wide variety of modules
Compatible with common tooling systems and flexible to use thanks to angle adjustment with 10° pitch
Design
Design
- Elbow connector with gearing in 10° pitch

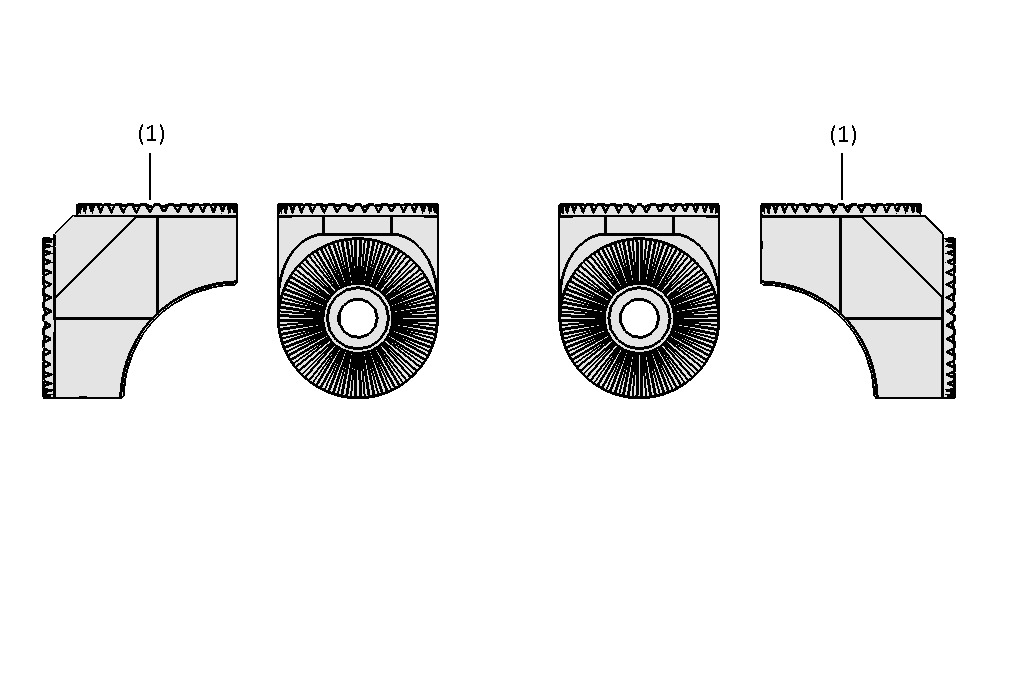

- Safe mounting, as black (F) and gray (M) components are always mounted alternately (1)
Technical Data
Technical Data
- Gearing with 10° pitch
- Male version in gray
- Female version in black
Documentation
Documentation
The matching documentation for this product is available in this section.
| Documents | Language |
|---|---|
| English |
