VCDR 135x25.5x6 VCBL10.01.12.04560Sealing frame (bottom)
| Length L | 135 (mm) |
| Width B | 25.5 (mm) |
| Height H | 6 (mm) |
| Utilization design | Vacuum block |

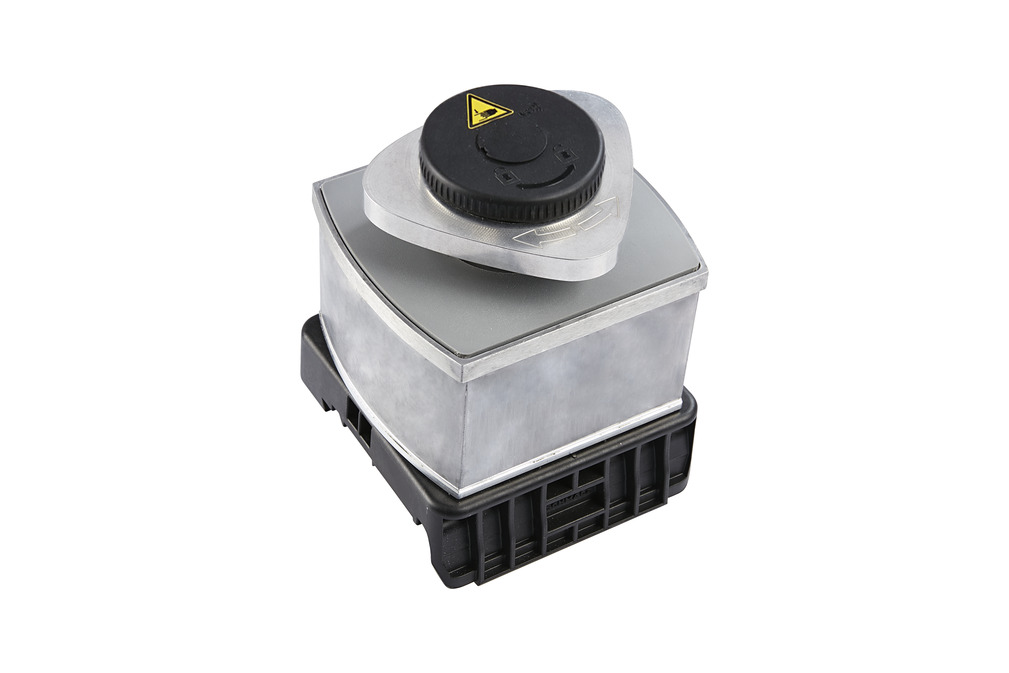

VCMC-S6-QUICK 150x135x110 10-100
Part no.: 10.01.12.04777
Mechanical clamp for narrow and frame parts, Biesse console SCM/ Morbidelli - Typ S6
| Shape | QUICK |
| Dimension (LxW) | 150x135 |
| Height H | 110 (mm) |
| Stroke Z | 10 (mm) |
| Clamping range [mm] | 10.0 ... 100.0 mm |

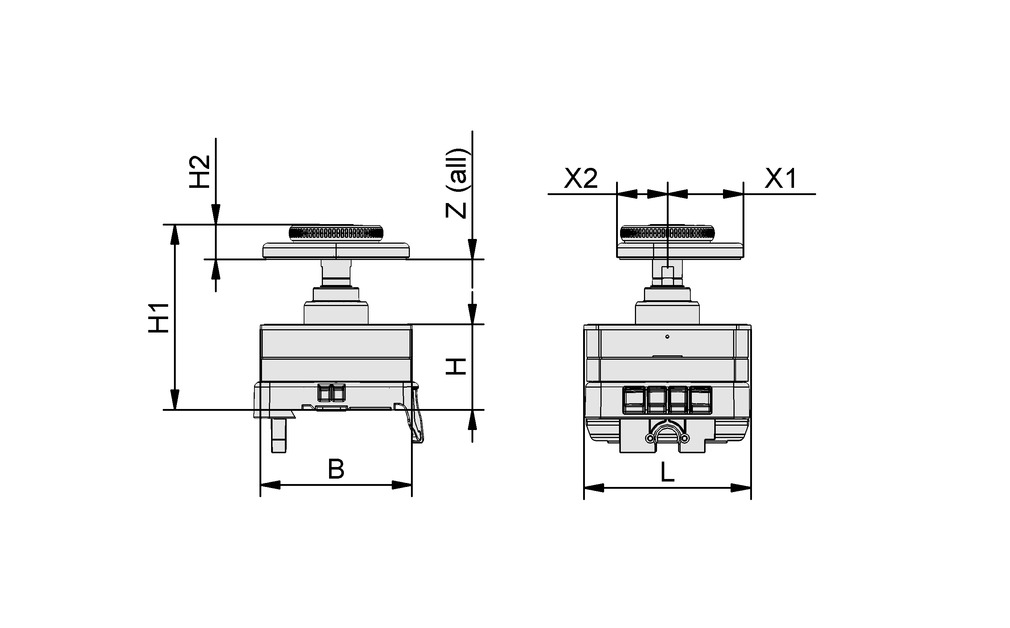

Design Data
Design Data
| Attribute | Value |
|---|---|
| B | 133 mm |
| H | 110 mm |
| H1 | 248.4 mm |
| H2 | 30 mm |
| L | 146.5 mm |
| X1 | 66.5 mm |
| X2 | 44 mm |
| Z (Stroke) | 10 mm |
Documentation
Documentation
Spare parts
SPAN-TELL 110 EXZ VCMC10.01.12.04239Clamping disc for mechanical clamp
VCMC
| Outside diameter D | 110 (mm) |
| Installation position | EXZ |
| Utilization design | Mechanical clamp VCMC |
Product recommendations
Vacuum Blocks VCBL-S6
- For SCM TV consoles of the series Flex, Flexmatic, Start or Pilot with 98 mm console width
- Integrated touch valve and NFC tag
- With mechanical pre-fixation
