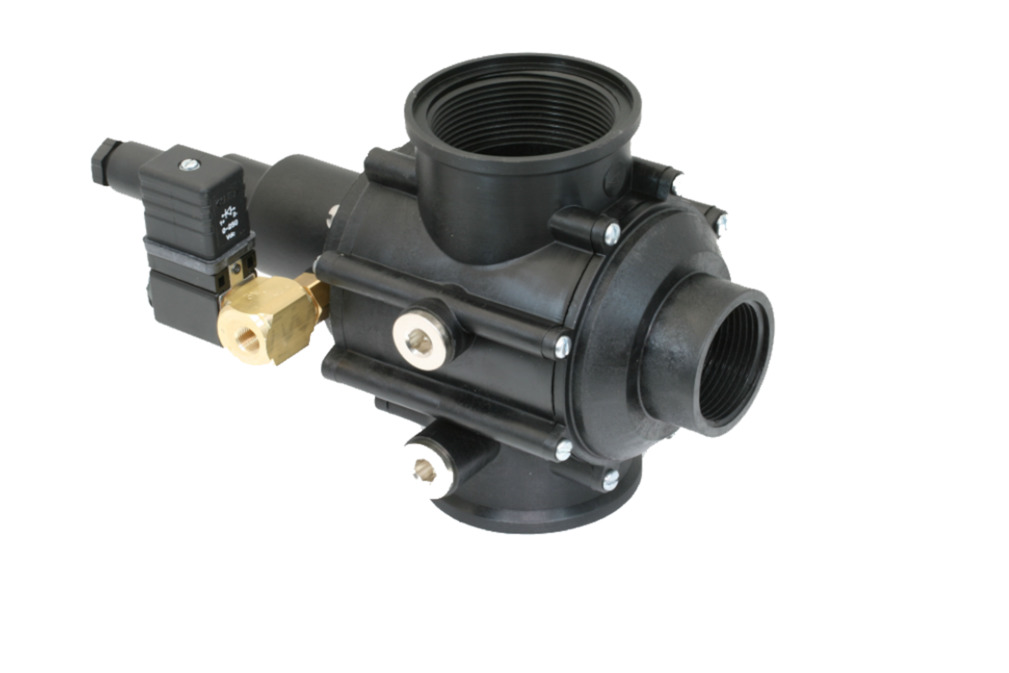

EMVP 50 230V-AC 3/2 NC

Part no.: 10.05.02.00171

Solenoid valve EMVP for vacuum, pneumatic pilot control

EMVP 50 230V-AC 3/2 NC
Nominal size50 mm
Voltage DC230 V - AC
Function3/2 multiway valve
Control valveNormally closed
Connecting threadG2"-F
Pressure range (operating pressure) bar
Nominal flow rate310 m³/h
Weight1.36 kg
EMVP 50 230V-AC 3/2 NC

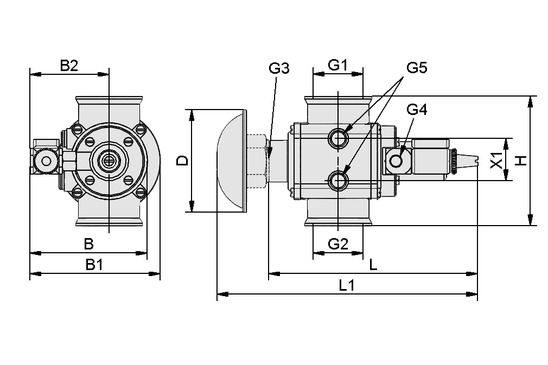

Attribute Value
B 114 mm
B1 151 mm
B2 105.50 mm
D 80 mm
G1 G2"-F
G2 G2"-F
G3 G1-1/4"-F
G4 G1/8"-F
G5 G3/8"-F
H 142 mm
L 225 mm
L1 260 mm
X1 49 mm
Attribute Value
Nominal size 50 mm
Nominal flow rate 310 m³/h
Control valve Normally closed
Nominal flow rate 5,166.70 l/min
Power consumption DC 5 W
Voltage DC 230 V - AC
Closing time 500 ms
Weight 1.36 kg
Product family EMVP
EMVP 50 230V-AC 3/2 NC
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Español
Operating instructions
Français
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
UKCA declaration of conformity
English
UKCA declaration of conformity
Polski
UKCA declaration of conformity
Türkçe
UKCA declaration of conformity
Pусский
UKCA declaration of conformity
한국어
UKCA declaration of conformity
Suomalainen
UKCA declaration of conformity
Nederlands
UKCA declaration of conformity
Česky
UKCA declaration of conformity
Hrvatski
UKCA declaration of conformity
Slovenščina
UKCA declaration of conformity
Srpski
UKCA declaration of conformity
Tiếng Việt
EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Operating instructions
English English
UKCA declaration of conformity
English English
EU declaration of conformity
English English

Ordering information: EMVP 50 230V-AC 3/2 NC

Solenoid valve EMVP is delivered as a ready-to-connect product.



Available accessories: venting filter, connection cable for solenoid valves, socket with M12 connection
