EMVP 5 24V-DC 5/2 IMP

Part no.: 10.05.02.00163

Solenoid valve EMVP for vacuum, pneumatic pilot control

EMVP 5 24V-DC 5/2 IMP
Nominal size5 mm
Voltage DC24 V - DC
Function5/2 multiway valve
Control valveImpulse valve
Connecting threadG1/8"-F
Pressure range (operating pressure)-0.95 ... 0.00 bar
Nominal flow rate3 m³/h
Weight0.156 kg
EMVP 5 24V-DC 5/2 IMP

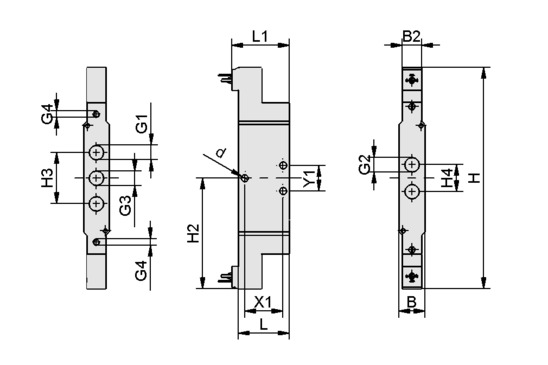

Attribute Value
B 15.20 mm
B2 15.20 mm
d 4.30 mm
G1 G1/8"-F
G2 G1/8"-F
G3 G1/8"-F
G4 M5-F
H 152.70 mm
H2 76.30 mm
H3 30 mm
H4 15 mm
L 32 mm
L1 37 mm
X1 23 mm
Y1 15 mm
Attribute Value
Nominal size 5 mm
Nominal flow rate 3 m³/h
Control valve Impulse valve
Nominal flow rate 50 l/min
Power consumption DC 2.40 W
Voltage DC 24 V - DC
Closing time 13 ms
Weight 0.16 kg
Product family EMVP
EMVP 5 24V-DC 5/2 IMP
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
UKCA declaration of conformity
English
UKCA declaration of conformity
Polski
UKCA declaration of conformity
Türkçe
UKCA declaration of conformity
Pусский
UKCA declaration of conformity
한국어
UKCA declaration of conformity
Suomalainen
UKCA declaration of conformity
Nederlands
UKCA declaration of conformity
Česky
UKCA declaration of conformity
Hrvatski
UKCA declaration of conformity
Slovenščina
UKCA declaration of conformity
Srpski
UKCA declaration of conformity
Tiếng Việt
EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Operating instructions
English English
UKCA declaration of conformity
English English
EU declaration of conformity
English English

Ordering information: EMVP 5 24V-DC 5/2 IMP

Solenoid valve EMVP is delivered as a ready-to-connect product.



Available accessories: venting filter, connection cable for solenoid valves, socket with M12 connection
