Solenoid Valves

Solenoid valves, which are controlled via electrical switch signals, are used for the control of compressed air or vacuum. These valves can be controlled directly as well as with pneumatic pilot operation.

Nominal size [mm]
-
Nominal flow rate [m³/h]
-
Control valve
Industry sector
Product family

Results 1 to 10 of 63 items

EMV 1.5 24V-DC 3/2 NC K-2P

EMV 1.5 24V-DC 3/2 NC K-2P

Part no.: 10.05.01.00288
Solenoid valve EMV for direct control of compressed air
Nominal size1.5 mm
Voltage DC24 V - DC
Function3/2 multiway valve
Control valveNormally closed
Connecting threadM5-M
Pressure range (operating pressure)2.5 ... 7.0 bar
Power consumption DC2.8 W
Interface electrical connectionCable, 2-pole
Nominal size1.5 mm
Voltage DC24 V - DC
Function3/2 multiway valve
Control valveNormally closed
Connecting threadM5-M
Pressure range (operating pressure)2.5 ... 7.0 bar
Power consumption DC2.8 W
Interface electrical connectionCable, 2-pole
EMV 2.5 24V-DC 3/2 NC K-2P

EMV 2.5 24V-DC 3/2 NC K-2P

Part no.: 10.05.01.00289
Solenoid valve EMV for direct control of compressed air
Nominal size2.5 mm
Voltage DC24 V - DC
Function3/2 multiway valve
Control valveNormally closed
Connecting threadG1/8"-M
Pressure range (operating pressure)2.0 ... 8.0 bar
Power consumption DC4.5 W
Interface electrical connectionCable, 2-pole
Nominal size2.5 mm
Voltage DC24 V - DC
Function3/2 multiway valve
Control valveNormally closed
Connecting threadG1/8"-M
Pressure range (operating pressure)2.0 ... 8.0 bar
Power consumption DC4.5 W
Interface electrical connectionCable, 2-pole
ASK B-M8-4 5000 K-4P

ASK B-M8-4 5000 K-4P

Part no.: 10.06.02.00031
Connection cable
Electrical connectionFem connect M8, 4 pol
Cable length5,000 mm
Material hosePUR cable
Electrical connectionFem connect M8, 4 pol
Cable length5,000 mm
Material hosePUR cable
ASK WB-M8-4 5000 K-4P

ASK WB-M8-4 5000 K-4P

Part no.: 10.06.02.00032
Connection cable
Electrical connectionElbow fem con M8, 4 pol
Cable length5,000 mm
Material hosePUR cable
Electrical connectionElbow fem con M8, 4 pol
Cable length5,000 mm
Material hosePUR cable
IV 3 3/2 G3/8-IG G3/8-AG 24V-DC

IV 3 3/2 G3/8-IG G3/8-AG 24V-DC

Part no.: 10.05.01.00172
Inline valve for direct vacuum control at the suction cup
Nominal size3 mm
Function3/2 multiway valve
Thread G1G3/8"-F
Thread G2G3/8"-M
Voltage DC24 V - DC
Nominal size3 mm
Function3/2 multiway valve
Thread G1G3/8"-F
Thread G2G3/8"-M
Voltage DC24 V - DC
IV 3 3/2 G1/4-IG G3/8-AG 24V-DC

IV 3 3/2 G1/4-IG G3/8-AG 24V-DC

Part no.: 10.05.01.00173
Inline valve for direct vacuum control at the suction cup
Nominal size3 mm
Function3/2 multiway valve
Thread G1G1/4"-F
Thread G2G3/8"-M
Voltage DC24 V - DC
Nominal size3 mm
Function3/2 multiway valve
Thread G1G1/4"-F
Thread G2G3/8"-M
Voltage DC24 V - DC
VS-V-SA M5-AG

VS-V-SA M5-AG

Part no.: 10.06.02.00224
Miniature vacuum sensor with analogue output signal
ConnectionM5-M
Measuring range-1,00 ... 0,00 bar
Cable length Lk3 m
ConnectionM5-M
Measuring range-1,00 ... 0,00 bar
Cable length Lk3 m
VS-V-SD 60 M5-AG

VS-V-SD 60 M5-AG

Part no.: 10.06.02.00257
Miniature vacuum switch with digital output signal
Switching point- 600
ConnectionM5-M
Measuring range-1,0 ... 0,0 bar
Cable length Lk3 m
Switching point- 600
ConnectionM5-M
Measuring range-1,0 ... 0,0 bar
Cable length Lk3 m

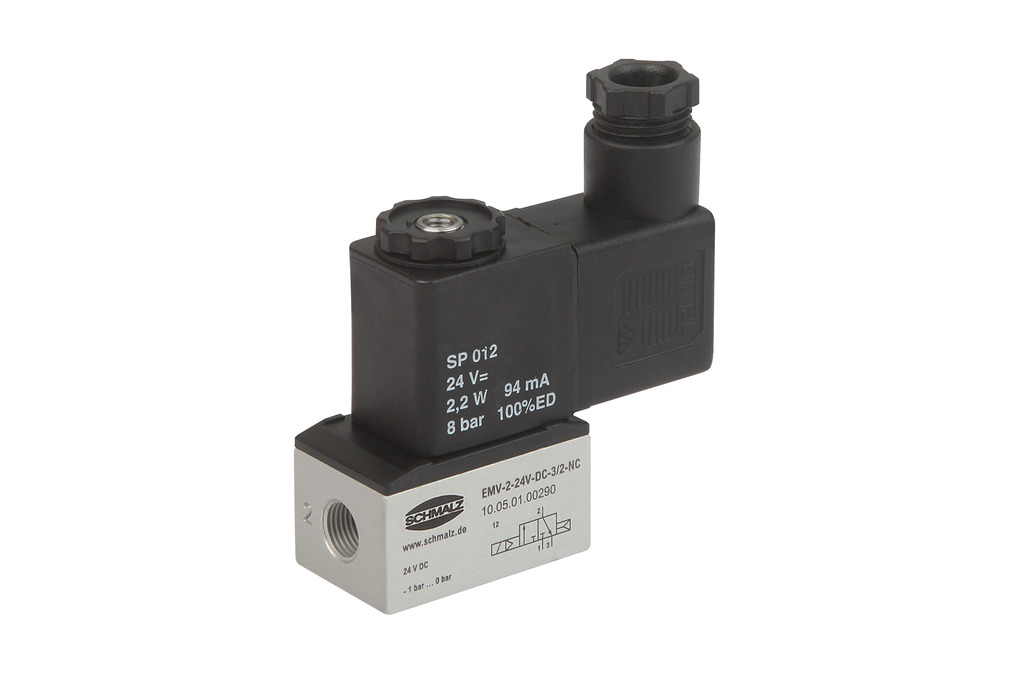

EMV 2 24V-DC 3/2 NC

EMV 2 24V-DC 3/2 NC

Part no.: 10.05.01.00290
Solenoid valve EMV for direct control of vacuum and compressed air
Nominal size2 mm
Voltage DC24 V - DC
Function3/2 multiway valve
Control valveNormally closed
Connecting threadG1/8"-F
Pressure range (operating pressure)-1.00 ... 8.00 bar
Power consumption DC2.4 W
Nominal size2 mm
Voltage DC24 V - DC
Function3/2 multiway valve
Control valveNormally closed
Connecting threadG1/8"-F
Pressure range (operating pressure)-1.00 ... 8.00 bar
Power consumption DC2.4 W

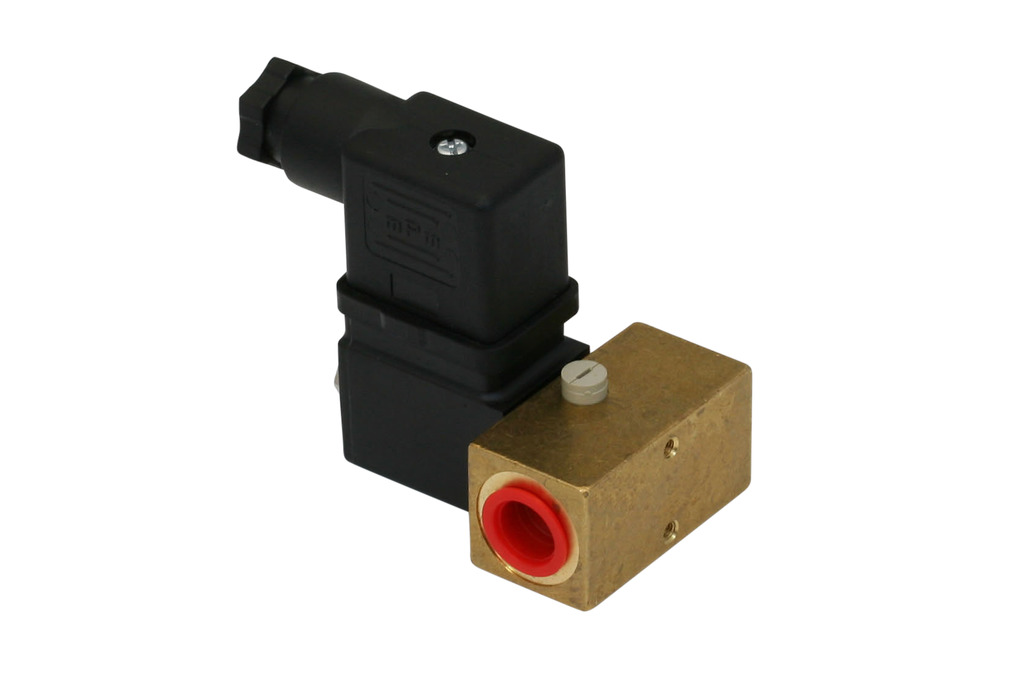

EMV 3 24V-DC 2/2 NC

EMV 3 24V-DC 2/2 NC

Part no.: 10.05.01.00066
Solenoid valve EMV for direct control of vacuum and compressed air
Nominal size3 mm
Voltage DC24 V - DC
Function2/2 multiway valve
Control valveNormally closed
Connecting threadG1/4"-F
Pressure range (operating pressure)-1.00 ... 9.00 bar
Power consumption DC4.8 W
Nominal size3 mm
Voltage DC24 V - DC
Function2/2 multiway valve
Control valveNormally closed
Connecting threadG1/4"-F
Pressure range (operating pressure)-1.00 ... 9.00 bar
Power consumption DC4.8 W
Inline Valves IV
Inline Valves IV
  • Nominal diameter: 3 mm
  • Nominal flow: 2 m³/h
  • Voltage: 24 V
×
Inline Valves IV
Inline valve in compact design for control of the vacuum directly on the suction cup.
Solenoid Valves EMV
Solenoid Valves EMV
  • Nominal diameter: 2 to 25 mm
  • Nominal flow: 1 to 88 m³/h
  • Voltages =/~ 24/230 V
×
Solenoid Valves EMV
Directly controlled vacuum valve with short opening and closing times, possible to control suction, venting and blow off of the suction cup.
Solenoid Valves EMVO
Solenoid Valves EMVO
  • Nominal diameter: 12 to 25 mm
  • Nominal flow: 21 to 101 m³/h
  • Voltages =/~ 24/230 V
×
Solenoid Valves EMVO
Directly controlled solenoid valve with large nominal diameter for high flow rates, possible to control suction and venting of the suction cup.
Solenoid Valves EMVP
Solenoid Valves EMVP
  • Nominal diameter: 5 to 50 mm
  • Nominal flow: 3 to 310 m³/h
  • Voltages =/~ 24/230 V
×
Solenoid Valves EMVP
Pneumatically controlled solenoid valve, extremely short opening and closing times; possible to control suction and venting of the suction cup.
