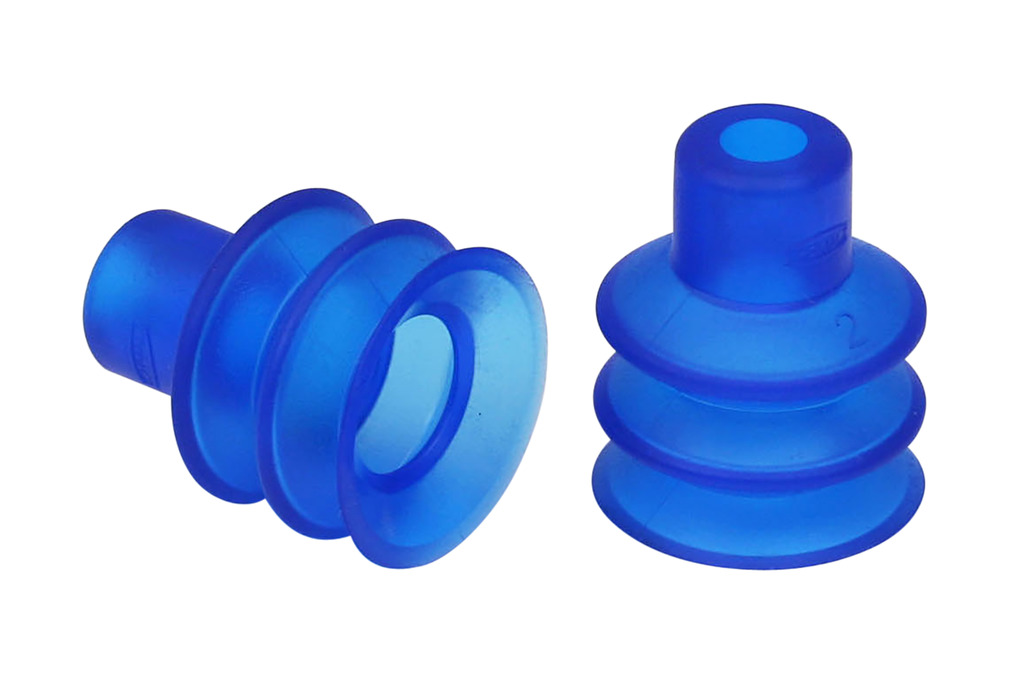

FG 18 PVC-50 N016 > Vacuum Suction Cups

Bellows suction cup (round) for very uneven workpieces

Size	18
Suction cup material	Polyvinyl chloride PVC
Material hardness [Shore A]	50 Shore A
Number of folds	2.5

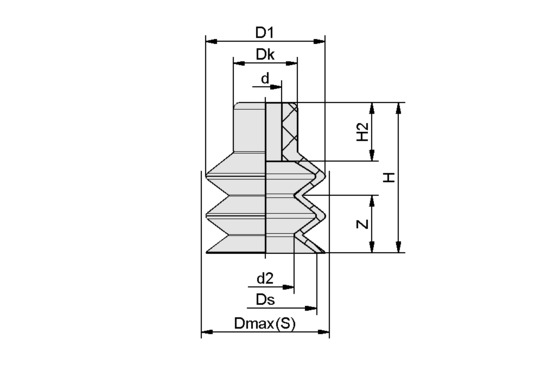

Attribute	Value
d	5 mm
d2	8.90 mm
D1	18.60 mm
Dk	10 mm
Dmax(S)	20 mm
Ds	16 mm
H	23.50 mm
H2	9.20 mm
Z (Stroke)	8.50 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Attribute	Value
Suction force	3.20 N
Pull-off force	8 N
Volume	1.96 cm³
Curve radius (min) (convex)	15 mm
Hose diameter (rec.) d	4 mm
Size	18
Nipple family	N 016
Number of folds	2.50
Suction cup material	Polyvinyl chloride PVC
Material hardness [Shore A]	50 Shore A
Weight	1.80 g
Product family	FG

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

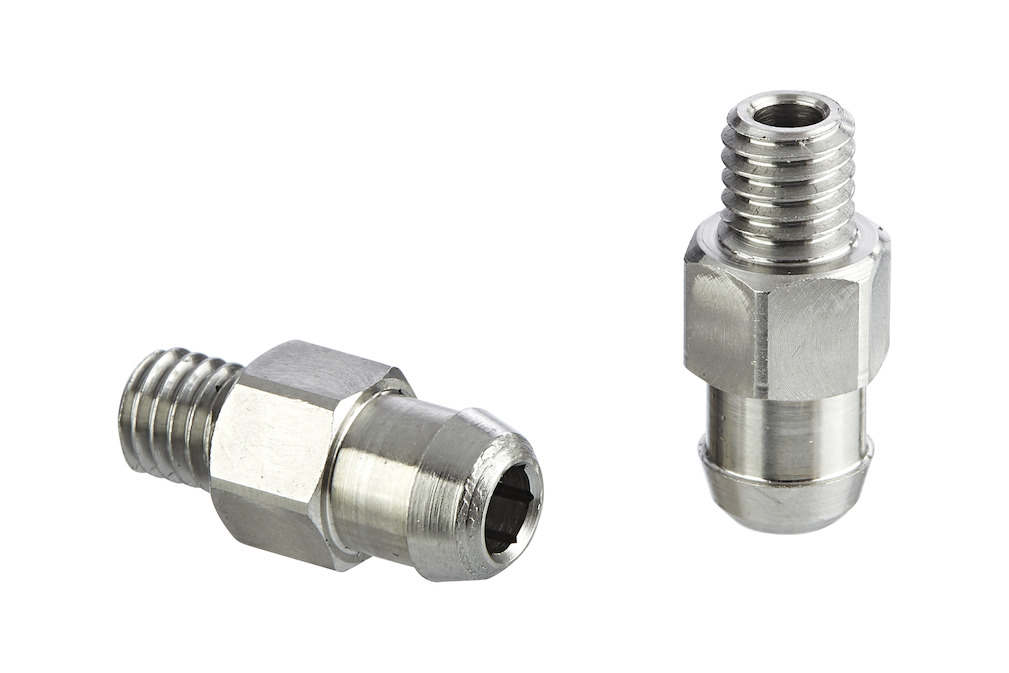

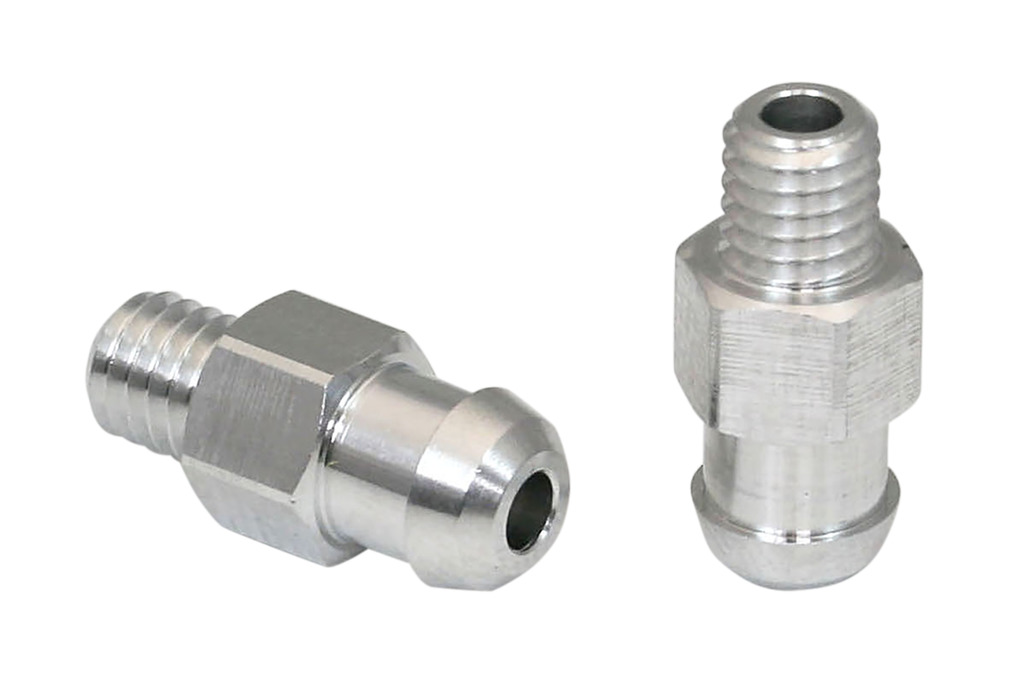

Nipple family	N 016
Thread G1	M5-M
Length L1	16 mm
Fitting length	5 mm
Nominal diameter dn	2.5 mm
Material	Aluminum

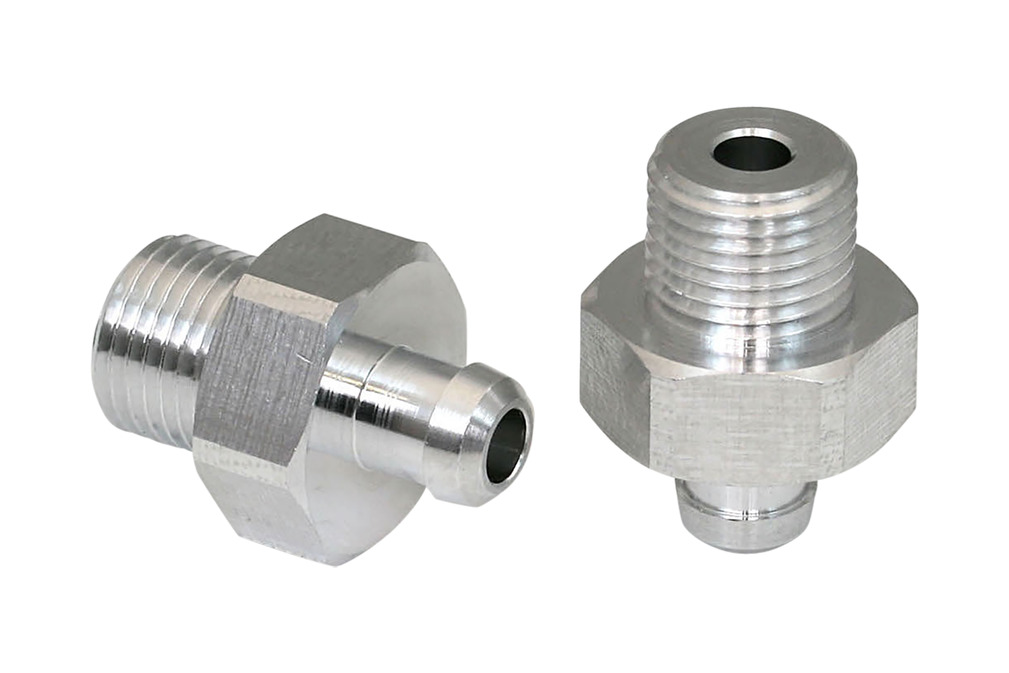

Nipple family	N 016
Thread G1	G1/8"-M
Length L1	20 mm
Fitting length	6 mm
Nominal diameter dn	3.5 mm
Material	Aluminum

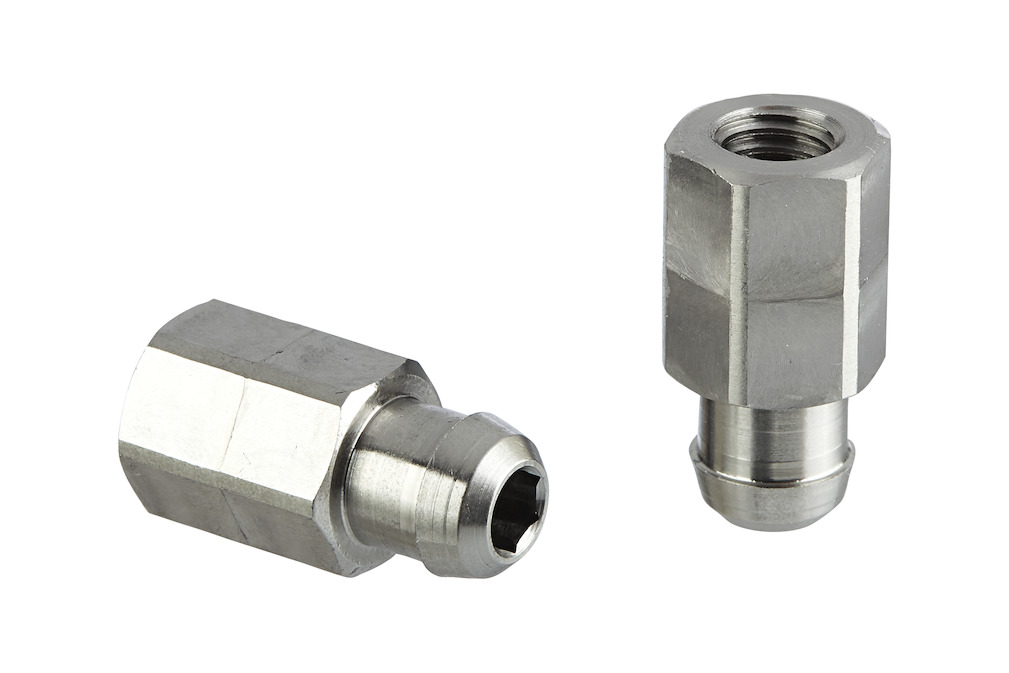

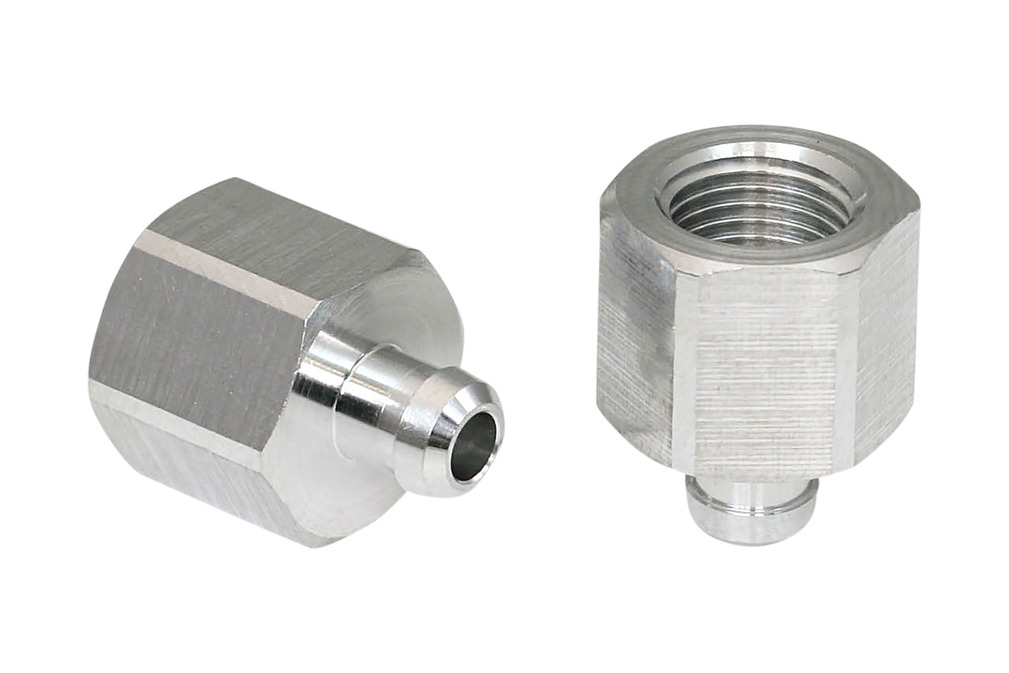

Nipple family	N 016
Thread G1	G1/8"-F
Length L1	18.5 mm
Fitting length	12 mm
Nominal diameter dn	3.5 mm
Material	Aluminum

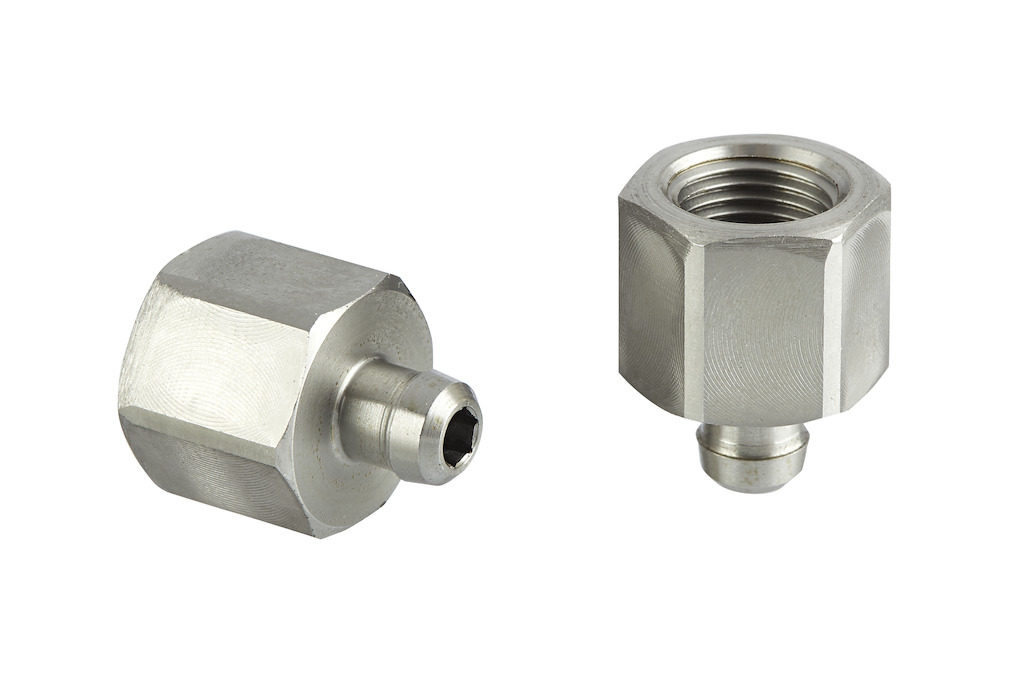

Thread G1	M5-F
Fitting length	10 mm
Material	Aluminum

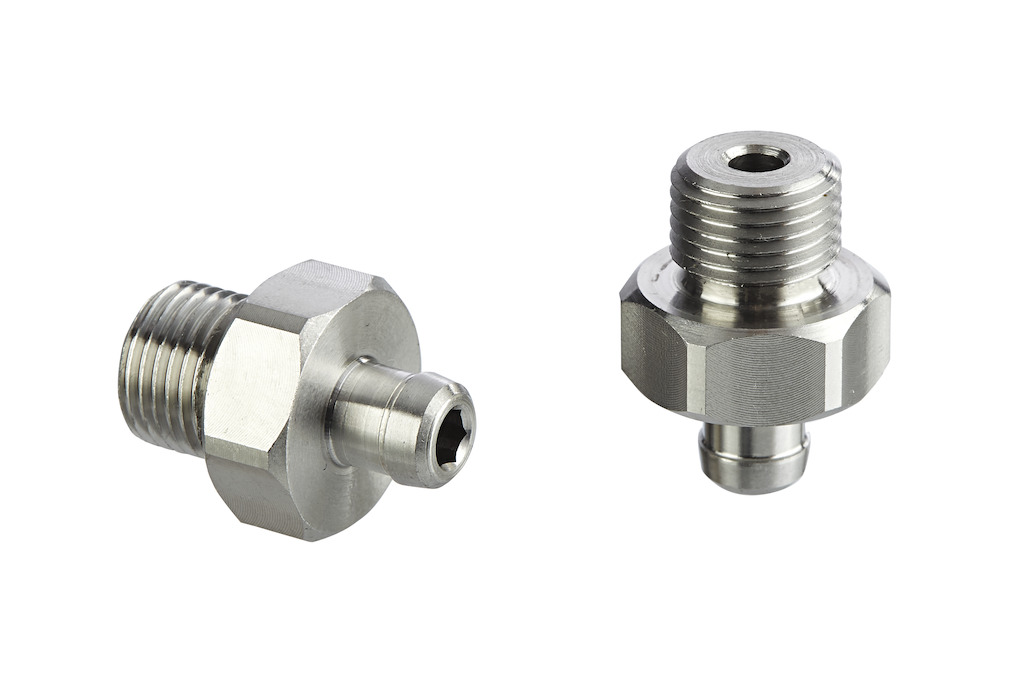

Nipple family	N 016
Thread G1	G1/8"-M
Length L1	20 mm
Fitting length	6 mm
Nominal diameter dn	3.1 mm
Spanner size SW2	3 mm
Material	Austenitic stainless steel
