SGPN 40 HT1-60 G1/8-AG

Part no.: 10.01.01.12847

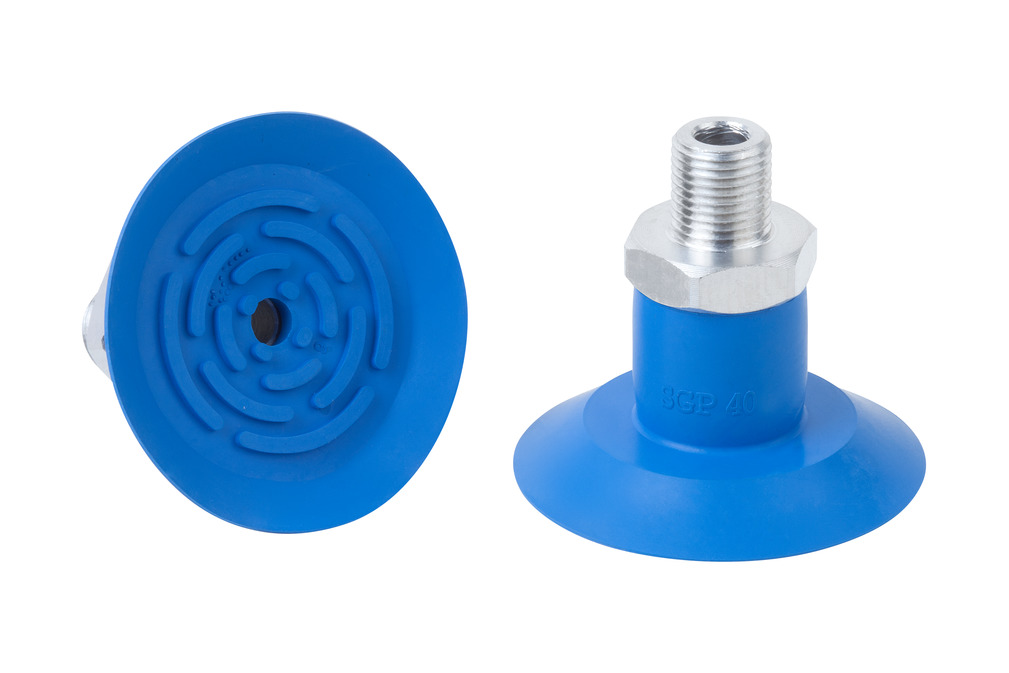

Flat suction cup (round) for careful gripping of paper, plastic film, etc.

SGPN 40 HT1-60 G1/8-AG
Size40
Suction cup materialHigh temperature material HT1
Material hardness [Shore A]60 Shore A
Nipple materialAluminum
Vacuum connectionG1/8"-M
SGPN 40 HT1-60 G1/8-AG

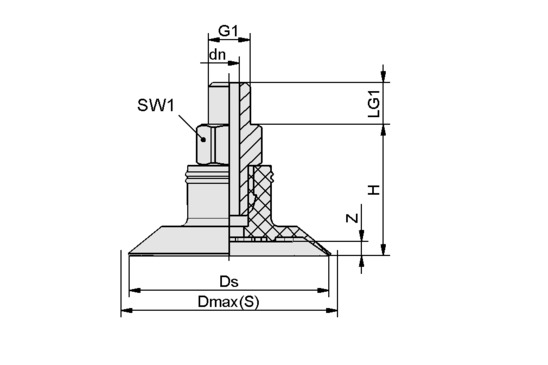

Attribute Value
dn 5 mm
Dmax(S) 42 mm
Ds 40 mm
G1 G1/8"-M
H 25.60 mm
LG1 10 mm
SW1 17 mm
Z (Stroke) 2.30 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Suction force 33 N
Volume 3.80 cm³
Hose diameter (rec.) d 4 mm
Size 40
Number of folds 0
Suction cup material High temperature material HT1
Material hardness [Shore A] 60 Shore A
Weight 11.10 g
Product family SGPN


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SGPN 40 HT1-60 G1/8-AG

Flat suction cup SGPN (elastomer part + connection nipple) is delivered unassembled. The delivery consists of:

  • Suction cup of type SGP – elastomer part, available in various diameters and materials

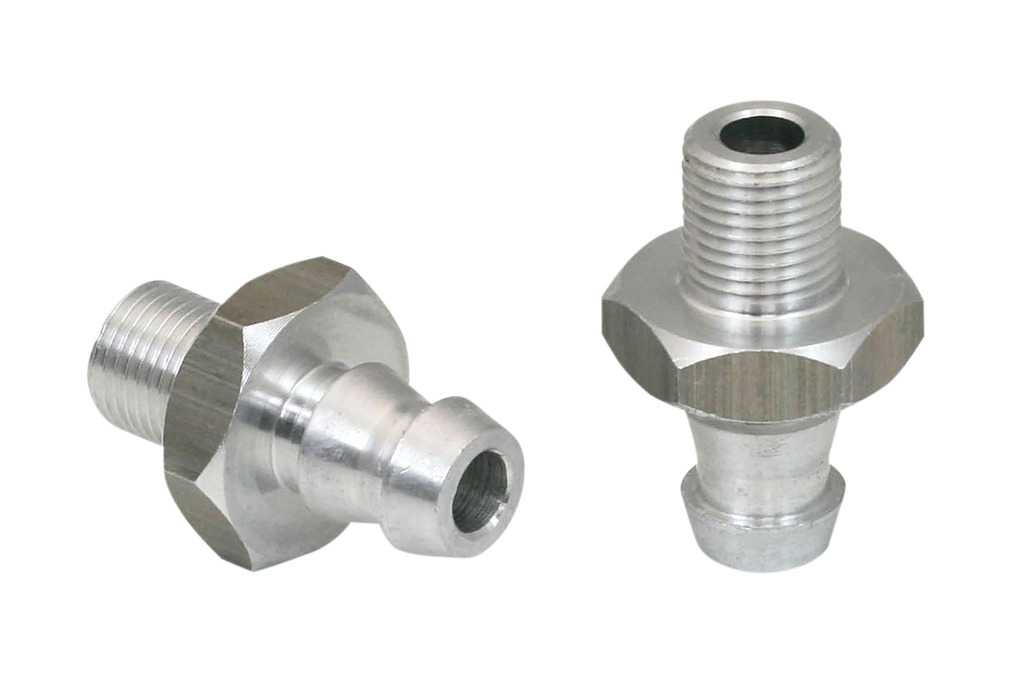

  • Connection nipple of type SA-NIP – available with various threads



Available spare parts: suction cup SGP, connection nipple SA-NIP
