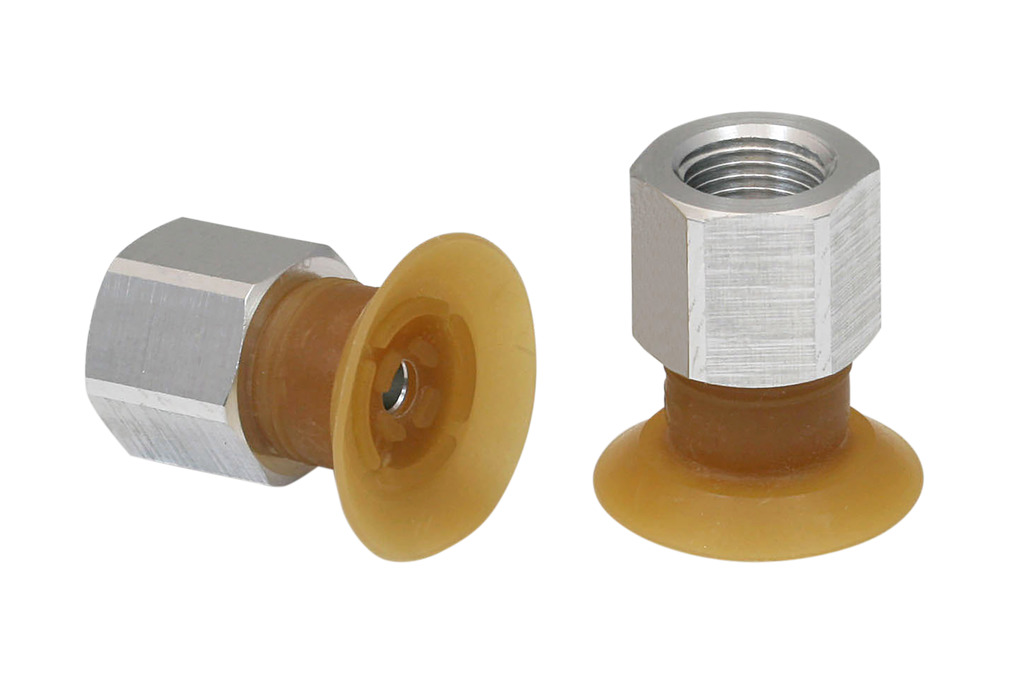

SGPN 20 NK-40 G1/8-IG

Part no.: 10.01.01.10180

Flat suction cup (round) for careful gripping of paper, plastic film, etc.

SGPN 20 NK-40 G1/8-IG
Size20
Suction cup materialNatural rubber NK
Material hardness [Shore A]40 Shore A
Nipple materialAluminum
Vacuum connectionG1/8"-F
SGPN 20 NK-40 G1/8-IG

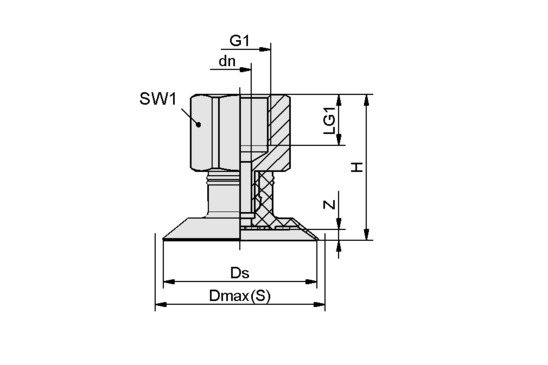

Attribute Value
dn 3.50 mm
Dmax(S) 22 mm
Ds 20 mm
G1 G1/8"-F
H 22.40 mm
LG1 8 mm
SW1 14 mm
Z (Stroke) 1.50 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Suction force 8.50 N
Volume 0.60 cm³
Hose diameter (rec.) d 2 mm
Size 20
Number of folds 0
Suction cup material Natural rubber NK
Material hardness [Shore A] 40 Shore A
Weight 4.80 g
Product family SGPN


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SGPN 20 NK-40 G1/8-IG

Flat suction cup SGPN (elastomer part + connection nipple) is delivered unassembled. The delivery consists of:

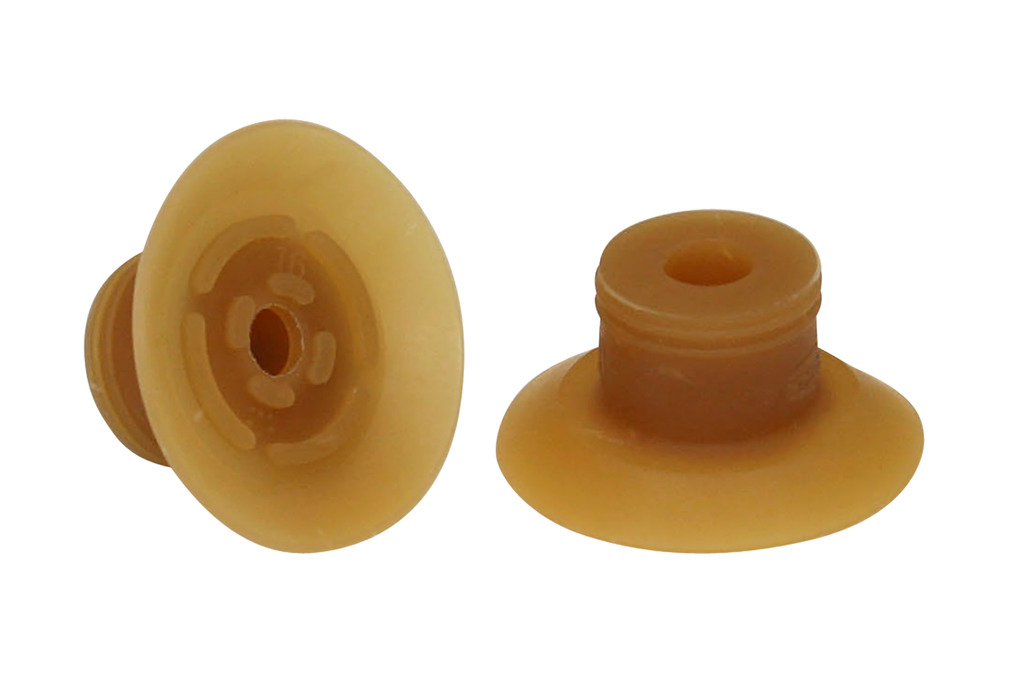

  • Suction cup of type SGP – elastomer part, available in various diameters and materials
  • Connection nipple of type SA-NIP – available with various threads



Available spare parts: suction cup SGP, connection nipple SA-NIP
