SGP 24 HT1-60 N016

Part no.: 10.01.01.12402

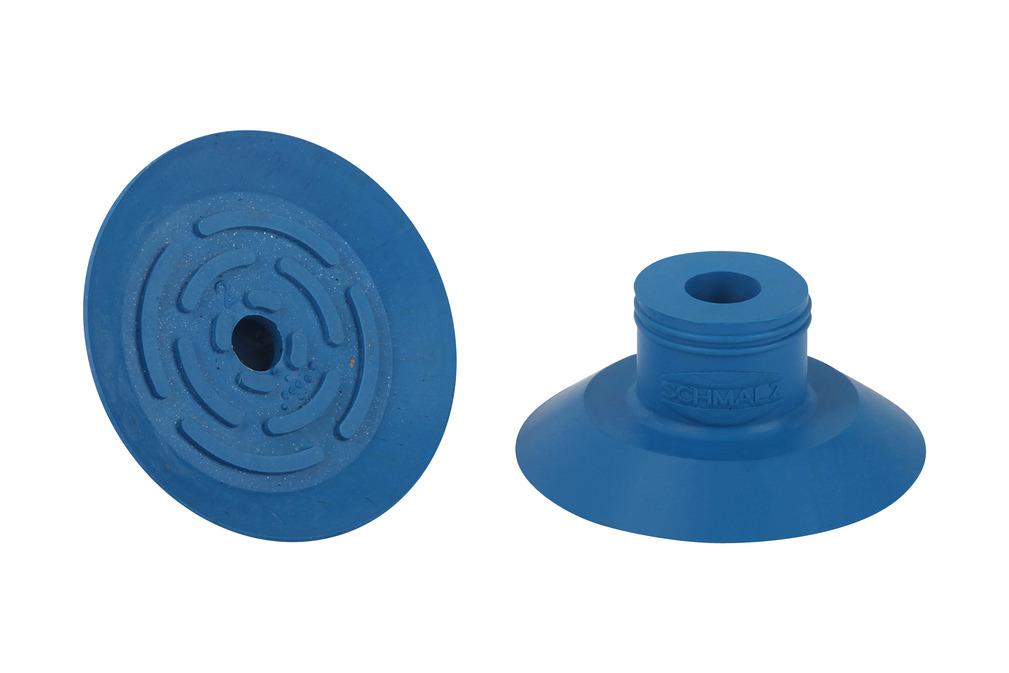

Flat suction cup (round) for careful gripping of paper, plastic film, etc.

SGP 24 HT1-60 N016
Size24
Suction cup materialHigh temperature material HT1
Material hardness [Shore A]60 Shore A
Material propertynon-marking
SGP 24 HT1-60 N016

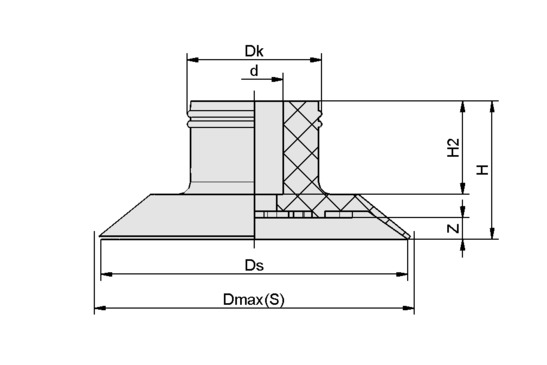

Attribute Value
d 4.50 mm
Dk 10.50 mm
Dmax(S) 25.50 mm
Ds 24 mm
H 10.80 mm
H2 7.30 mm
Z (Stroke) 1.70 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Suction force 11 N
Volume 0.85 cm³
Size 24
Nipple family N 016
Number of folds 0
Suction cup material High temperature material HT1
Material hardness [Shore A] 60 Shore A
Weight 1.10 g
Product family SGP


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SGP 24 HT1-60 N016
