SHFN 50 NK-45 G1/4-IG E

Part no.: 10.01.01.14599

Flat suction cup (round) for highly dynamic handling of wood

SHFN 50 NK-45 G1/4-IG E
Size50
Suction cup materialNatural rubber NK
Material hardness [Shore A]45 Shore A
ConnectionG1/4-IG
TypeE
SHFN 50 NK-45 G1/4-IG E

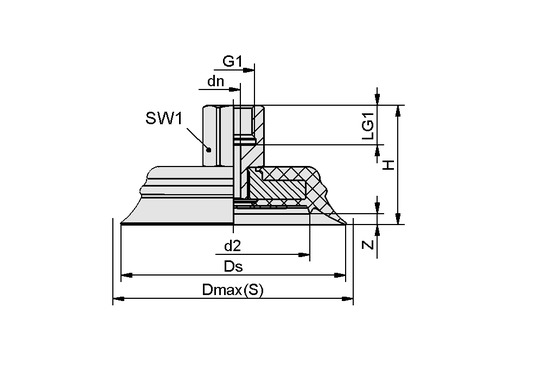

Attribute Value
d2 29.70 mm
dn 4.40 mm
Dmax(S) 54 mm
Ds 52 mm
G1 G1/4"-F
H 37.20 mm
LG1 12.40 mm
SW1 17 mm
Z (Stroke) 3.40 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Size 50
Suction cup material Natural rubber NK
Suction force d2 40 N
Suction force 110 N
Lateral force 90 N
Volume 8 cm³
Curve radius (min) (convex) 50 mm
Number of folds 0
Weight 31 g
Product family SHFN


Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Pull-off force: The pull-off force of the versions made of natural rubber is reduced by about 40% Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SHFN 50 NK-45 G1/4-IG E

Suction cup SHFN (elastomer part + connection nipple) is delivered assembled.
The assembly consists of:

  • Suction cup of type SHF – elastomer part, available in various diameters
  • Connection nipple of type SA-NIP – available with various threads
  • Optional product addition: sealing ring and touch valve

Available spare parts: suction cup SHF, connection nipple SA-NIP and RED-NIP, sealing ring, touch valve
Available accessories: filter screen (sieve, round)
