SAOG 60x20 NBR-45 G3/8-IG

Part no.: 10.01.01.11757

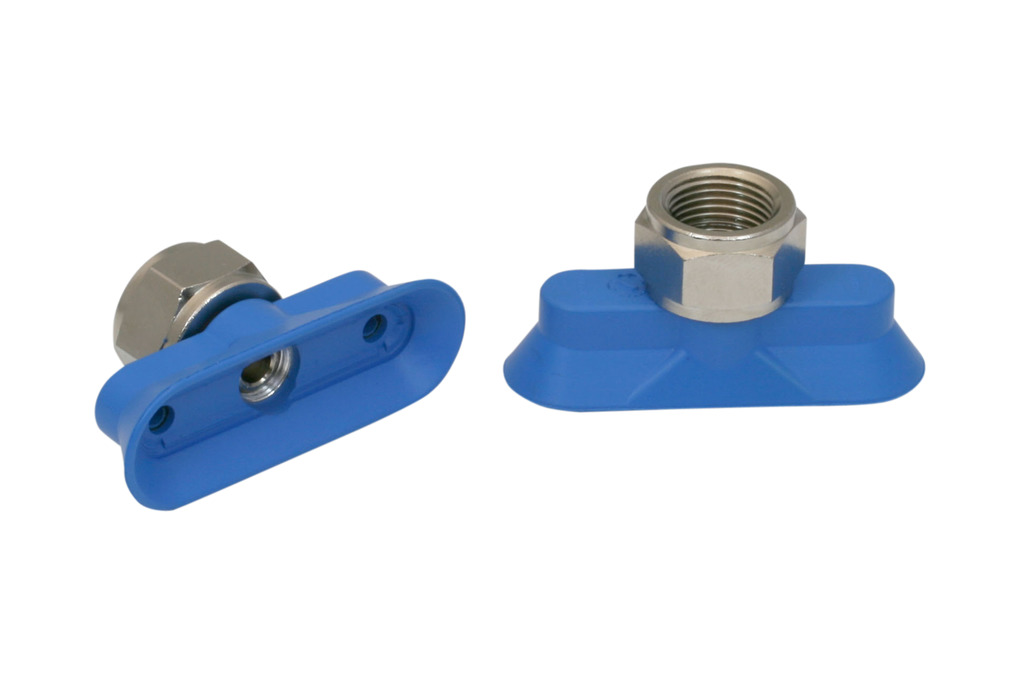

Bell suction cup (oval) for very dynamic handling of smooth and oily workpieces

SAOG 60x20 NBR-45 G3/8-IG
Dimensions (LxB)60 x 20
Suction cup materialNitrile rubber NBR
Material hardness [Shore A]45 Shore A
Nipple materialNickel plated
ConnectionG3/8-IG
SAOG 60x20 NBR-45 G3/8-IG

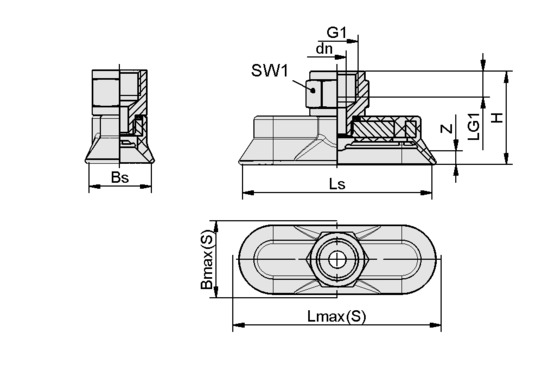

Attribute Value
Bmax(S) 26 mm
Bs 20 mm
dn 6 mm
G1 G3/8"-F
H 29.50 mm
LG1 9 mm
Lmax.(S) 66 mm
Ls 60 mm
SW1 22 mm
Z (Stroke) 4.50 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Suction force 56 N
Lateral force 35 N
Lateral force (oily surface) 10 N
Volume 4.86 cm³
Curve radius (min) (convex) 12.50 mm
Hose diameter (rec.) d 4 mm
Dimensions (LxB) 60 x 20
Suction cup material Nitrile rubber NBR
Weight 39.40 g
Number of folds 0
Product family SAOG


Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Lateral force: The specified lateral forces are values measured at a vacuum of -0.6 bar with a dry or oily, smooth, flat workpiece surface. Depending on the workpiece surface and its quality, the actual values may deviate from these values Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SAOG 60x20 NBR-45 G3/8-IG

Suction cup SAOG, available in various diameters, is delivered with connection nipple vulcanized to elastomer part.
