SAG 60 NBR-60 M10-AG

Part no.: 10.01.01.12297

Bell suction cup (round) for best adaptation to strongly curved surfaces

SAG 60 NBR-60 M10-AG
Size60
Suction cup materialNitrile rubber NBR
Material hardness [Shore A]60 Shore A
Nipple materialSteel
ConnectionM10-AG
SAG 60 NBR-60 M10-AG

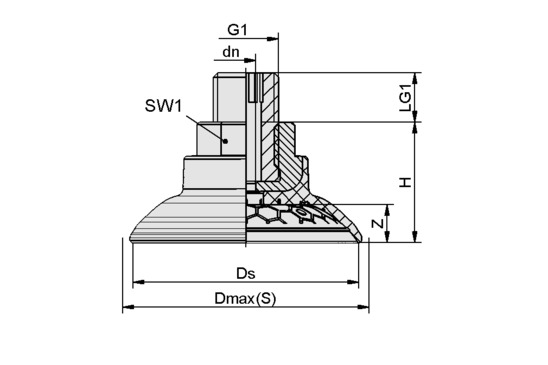

Attribute Value
dn 4 mm
Dmax(S) 70.50 mm
Ds 63.50 mm
G1 M10-M
H 43.20 mm
LG1 12 mm
SW1 22 mm
Z (Stroke) 10.60 mm
Attribute Value
Suction force 122 N
Size 60
Suction cup material Nitrile rubber NBR
Material hardness [Shore A] 60 Shore A
Number of folds 0
Weight 54.40 g
Product family SAG


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SAG 60 NBR-60 M10-AG
