SAG 45 NBR-60 M10-AG

Part no.: 10.01.01.12296

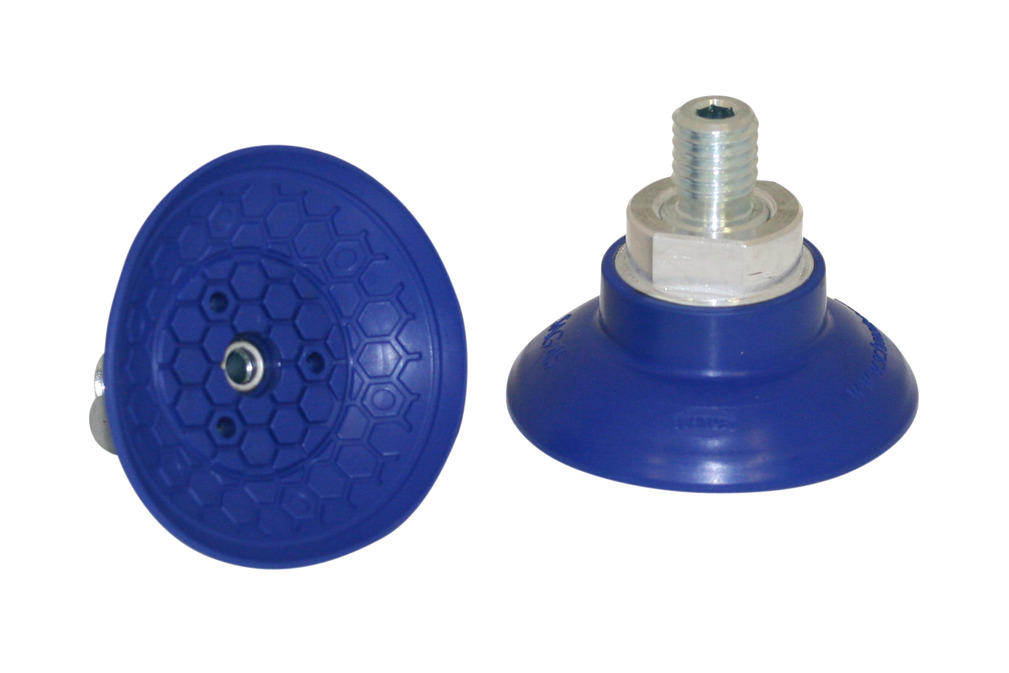

Bell suction cup (round) for best adaptation to strongly curved surfaces

SAG 45 NBR-60 M10-AG
Size45
Suction cup materialNitrile rubber NBR
Material hardness [Shore A]60 Shore A
Nipple materialSteel
ConnectionM10-AG
SAG 45 NBR-60 M10-AG

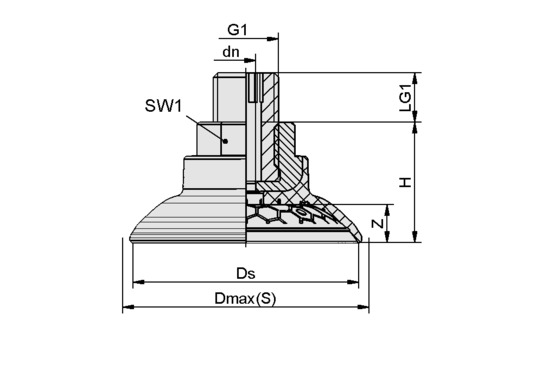

Attribute Value
dn 4 mm
Dmax(S) 51.50 mm
Ds 47 mm
G1 M10-M
H 36.50 mm
LG1 12 mm
SW1 17 mm
Z (Stroke) 7.80 mm
Attribute Value
Suction force 68 N
Size 45
Suction cup material Nitrile rubber NBR
Material hardness [Shore A] 60 Shore A
Number of folds 0
Weight 27.80 g
Product family SAG


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SAG 45 NBR-60 M10-AG
