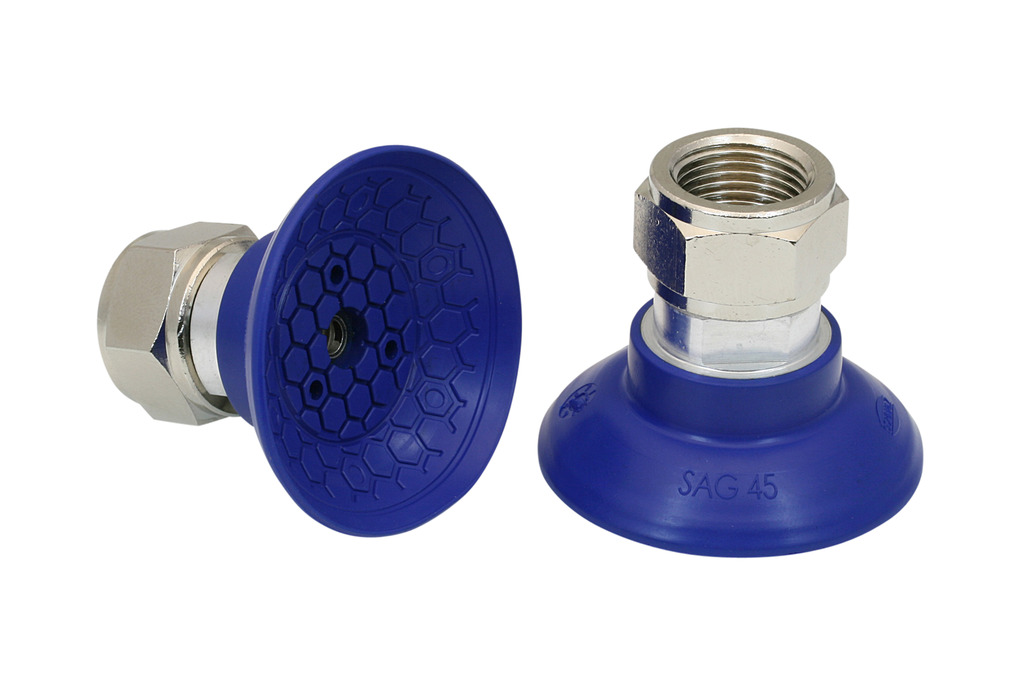

SAG 45 NBR-60 G3/8-IG > Vacuum Suction Cups

Bell suction cup (round) for best adaptation to strongly curved surfaces

Size	45
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	60 Shore A
Nipple material	Aluminum
Connection	G3/8-IG

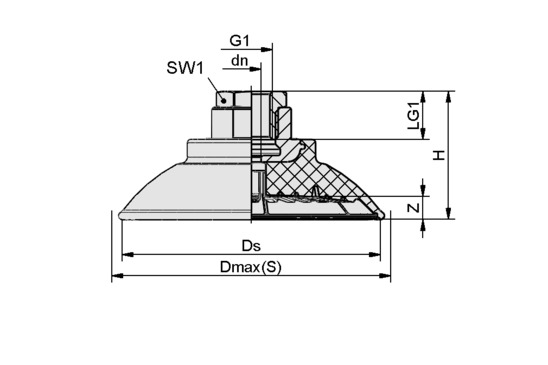

Attribute	Value
dn	4 mm
Dmax(S)	51.50 mm
Ds	47 mm
G1	G3/8"-F
H	40.50 mm
LG1	8 mm
SW1	17 mm
Z (Stroke)	7.80 mm

Attribute	Value
Suction force	68 N
Lateral force	61 N
Lateral force (oily surface)	51 N
Volume	8 cm³
Curve radius (min) (convex)	40 mm
Hose diameter (rec.) d	4 mm
Size	45
Suction cup material	Nitrile rubber NBR
Material hardness [Shore A]	60 Shore A
Number of folds	0
Weight	46.40 g
Product family	SAG

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

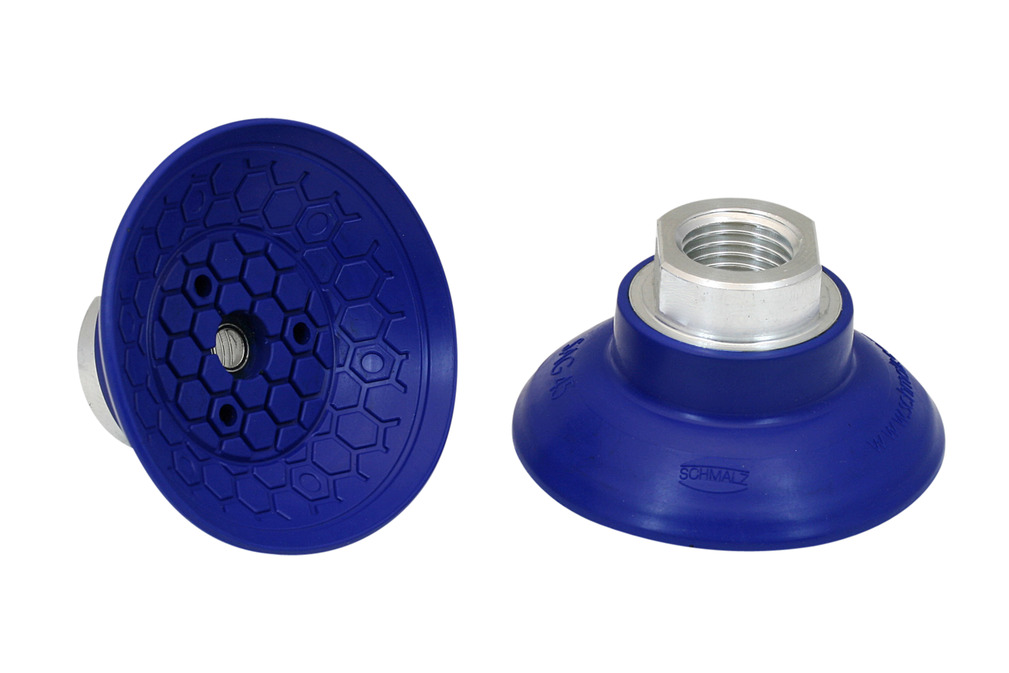

for	G1/4
External diameter D	18.2 mm
Internal diameter d	13.2 mm
Material	Aluminum

Thread G1	G1/4"-M
Thread G2	G3/8"-F
Length L	14.5 mm

SAG 45 NBR-60 G3/8-IG
