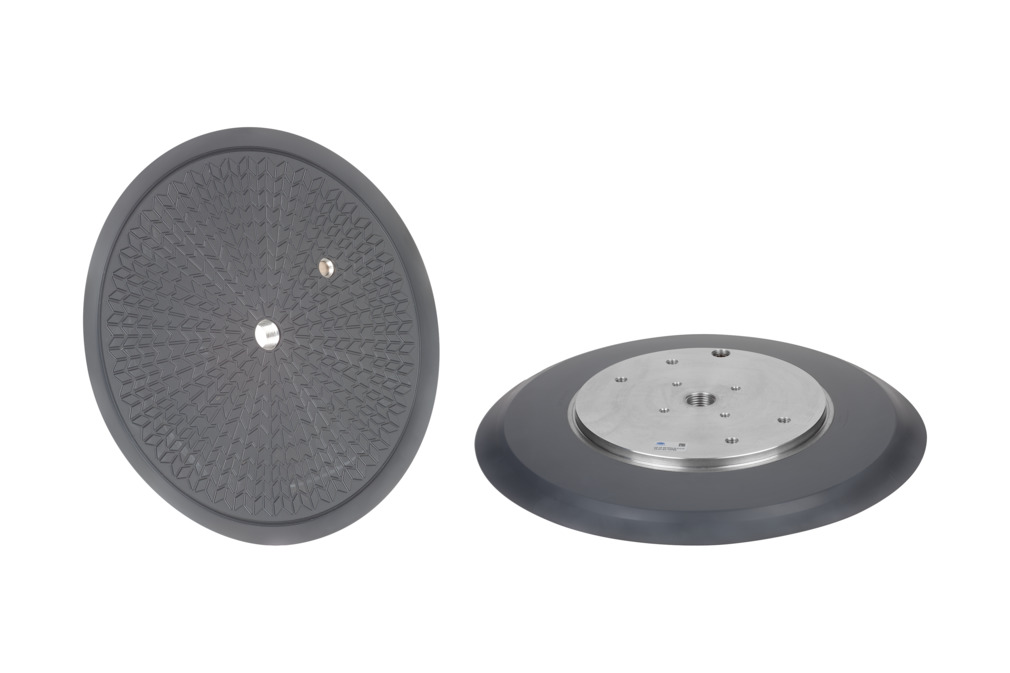

SGF-HS 300 EPDM-55 G1/2-IG > Vacuum Suction Cups

Flat suction cup (round) for highly dynamic handling of glass

Size	300
Suction cup material	EPDM
Material hardness [Shore A]	55 Shore A

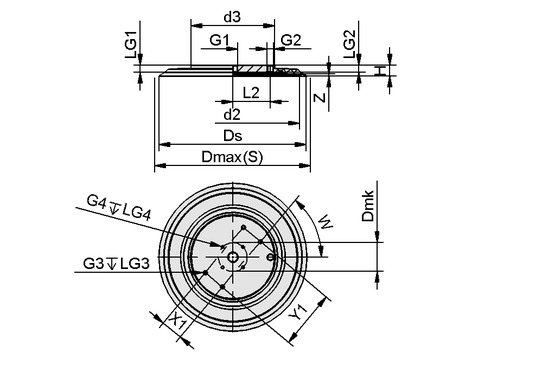

Attribute	Value
d2	272.30 mm
d3	170 mm
Dmax(S)	309 mm
Ds	303.20 mm
G1	G1/2"-F
G2
G3	M8-F
H	26.80 mm
L2	76 mm
LG1	14.50 mm
LG2	14.50 mm
LG3	12 mm
W	50 °
X1	45 mm
Y1	120 mm
Z (Stroke)	9 mm
Dmk	58.30 mm
G4	M6-F
LG4	10.50 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Attribute	Value
Suction force	4240 N
Suction force d2	3480 N
Volume	573 cm³
Curve radius (min) (convex)	2400 mm
Hose diameter (rec.) d	12 mm
Size	300
Number of folds	0
Suction cup material	EPDM
Material hardness [Shore A]	55 Shore A
Product family	SGF

Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Thread G1	G1/4"-M
Material	Brass
Surface	nickel plated

Thread G1	G1/4"-M
Thread G2	G1/8"-F
Spring stroke Z	13 mm

Thread G1	G3/8"-M
Thread G2	M6-M
Operating temperature	-5 ... 130 °C

Thread G1	G1/4"-F
Thread G2	M6-M
Operating temperature	-5 ... 130 °C

Thread G1	G1/2"-F
Thread G2	M6-M
Operating temperature	-5 ... 130 °C

Size	300
Clamping range	300.0 ... 330.0 mm
Temperature resistance	80 °C
