SGF 400 EPDM-55 G1/2-IG > Vacuum Suction Cups

Flat suction cup (round) for highly dynamic handling of glass

Size	400
Suction cup material	EPDM
Material hardness [Shore A]	55 Shore A
Connection	G1/2"-F

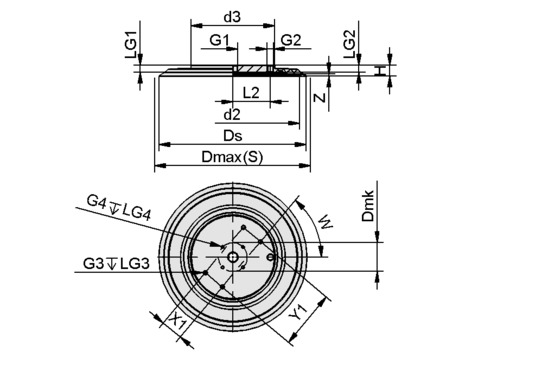

Attribute	Value
d2	372.30 mm
d3	170 mm
Dmax(S)	405 mm
Ds	398 mm
G1	G1/2"-F
G2	G1/4"-F
G3	M8-F
H	22.30 mm
L2	76 mm
LG1	14.50 mm
LG2	14.50 mm
LG3	12 mm
W	50 °
X1	45 mm
Y1	120 mm
Z (Stroke)	4.50 mm
Dmk	58.30 mm
G4	M6-F
LG4	10.50 mm

Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3

Attribute	Value
Suction force	7530 N
Suction force d2	6520 N
Volume	559.52 cm³
Curve radius (min) (convex)	13500 mm
Hose diameter (rec.) d	12 mm
Size	400
Number of folds	0
Suction cup material	EPDM
Material hardness [Shore A]	55 Shore A
Weight	2600 g
Product family	SGF

Note: Suction force: The specified suction forces are theoretical values at a vacuum of -0.6 bar and with a dry, smooth and even workpiece surface - they do not include a safety factor Hose diameter: The recommended hose diameter refers to a hose length of approx. 2 m

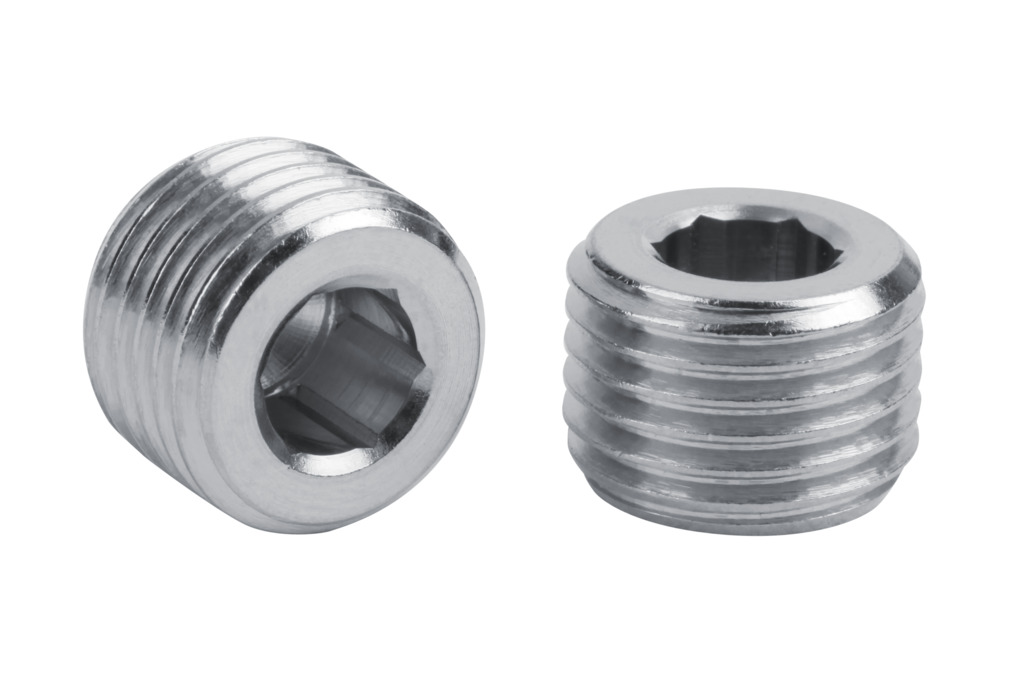

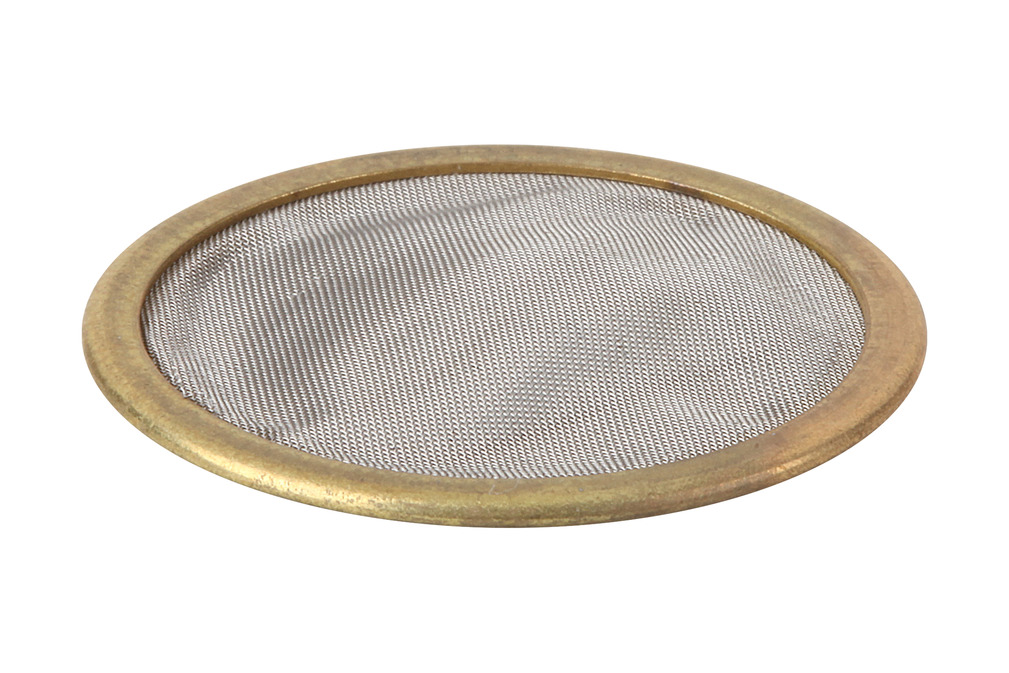

Thread G1	G1/4"-M
Material	Brass
Surface	nickel plated

Thread G1	G1/4"-M
Thread G2	G1/8"-F
Spring stroke Z	13 mm

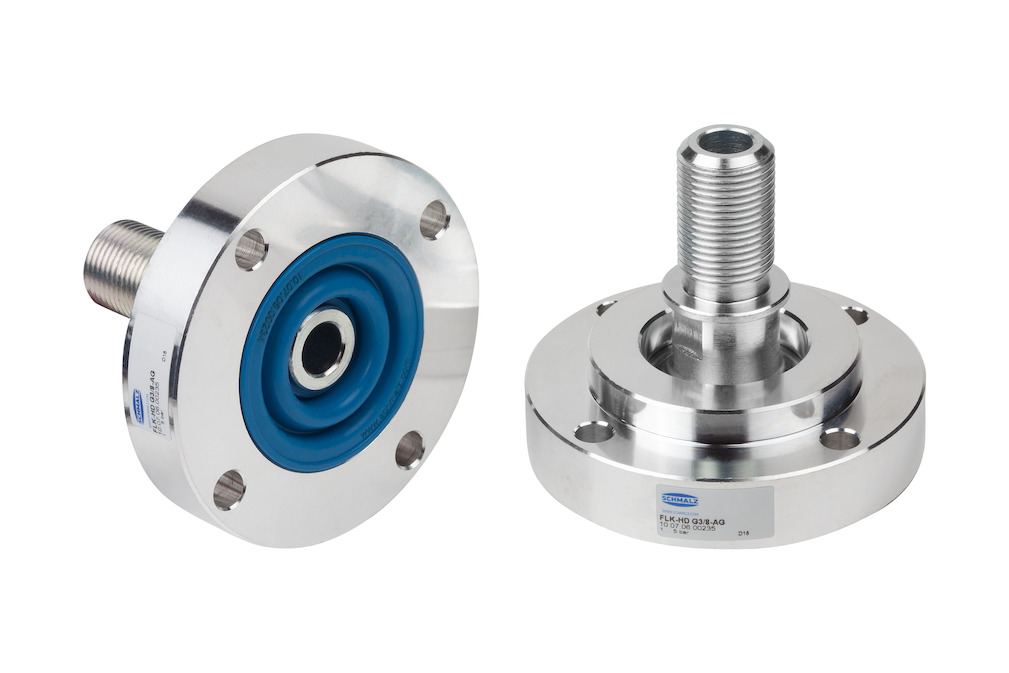

Thread G1	G3/8"-M
Thread G2	M6-M
Operating temperature	-5 ... 130 °C

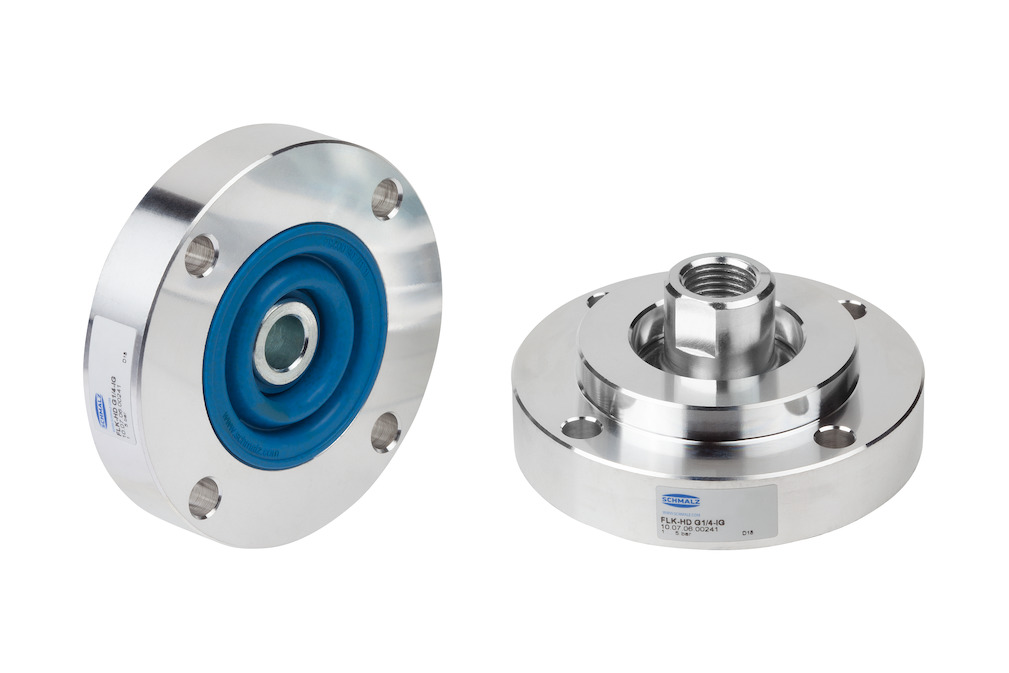

Thread G1	G1/4"-F
Thread G2	M6-M
Operating temperature	-5 ... 130 °C

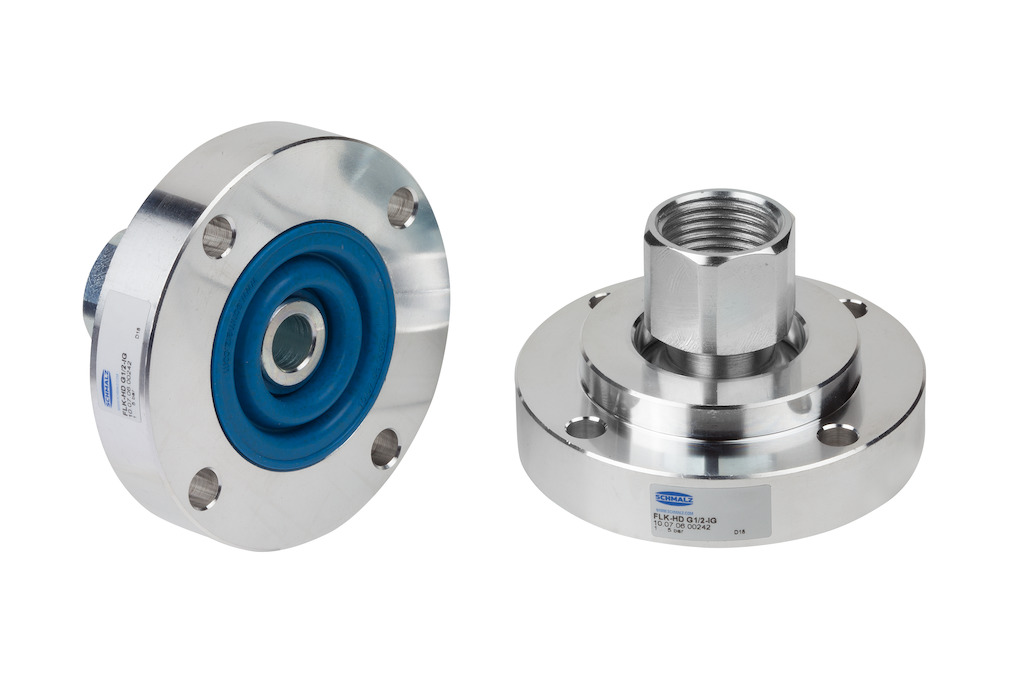

Thread G1	G1/2"-F
Thread G2	M6-M
Operating temperature	-5 ... 130 °C

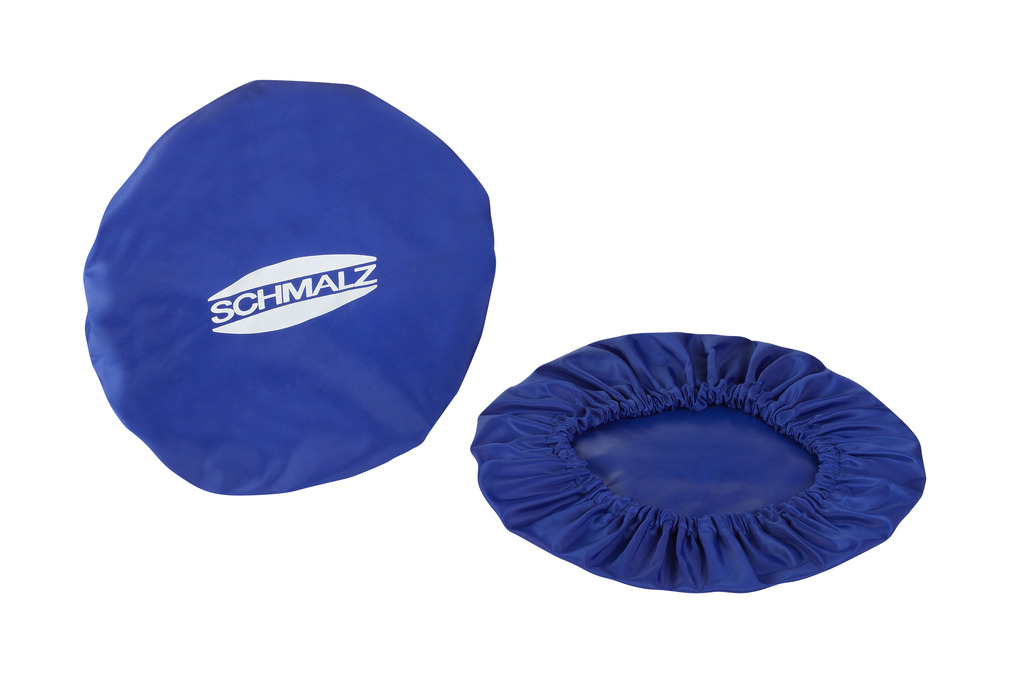

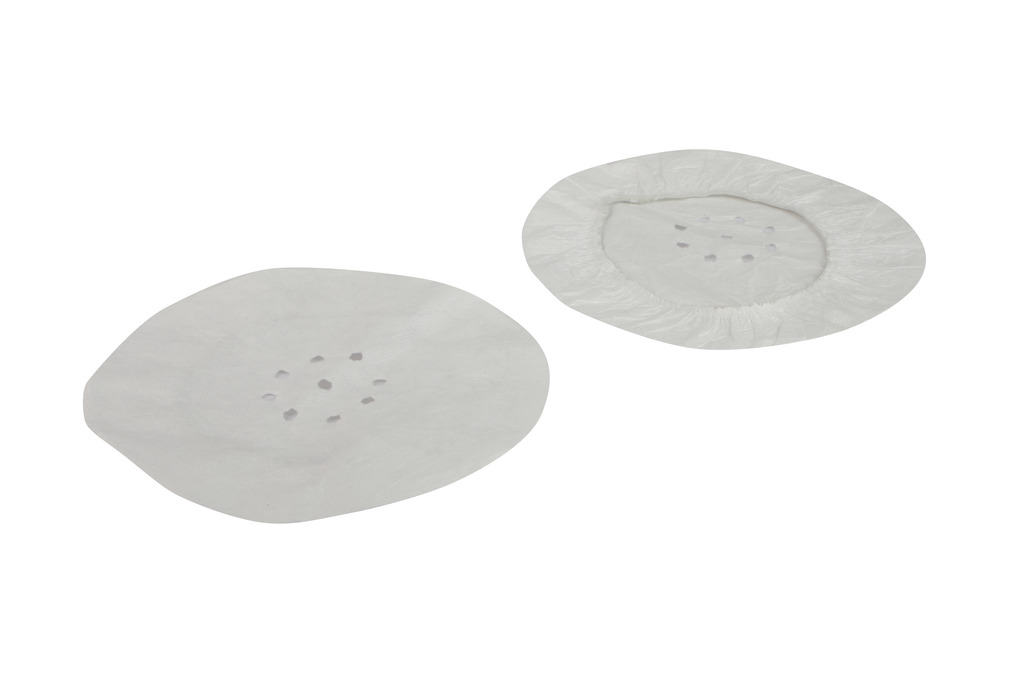

Size	360
Clamping range	360.0 ... 400.0 mm
Temperature resistance	80 °C
