PSSG X 290x215 NBR-60 M6-IG

Part no.: 10.01.54.00083

Gripper for the handling of paper, fabric and plastic bags

PSSG X 290x215 NBR-60 M6-IG
New
ShapeIntegrated vacuum generation
Suction cup length Ls290 mm
Suction cup width Bs215 mm
Height H72 mm
Material hardness [Shore A]60 Shore A
Add. functionNFC-TAG
Thread G4M6-F
PSSG X 290x215 NBR-60 M6-IG

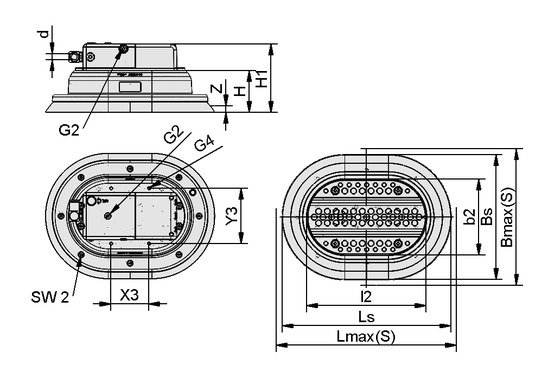

Attribute Value
b2 131 mm
Bmax(S) 220 mm
Bs 215 mm
G2 G1/8"-F
G4 M6-F
H 72 mm
H1 118 mm
l2 206 mm
Ls 290 mm
Lmax.(S) 295 mm
SW2 3 mm
X3 65 mm
Y3 95 mm
Z (Stroke) 11 mm
Add. function NFC-TAG
Attribute Value
Dimensions (LxB) 290x215
Shape Integrated vacuum generation
Material hardness [Shore A] 60 Shore A
Material NBR
Max. load (horizontal) 15 kg
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Español
Operating instructions
Français
Operating instructions
Italiano
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
日本語
Operating instructions
中國
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt

Spare parts

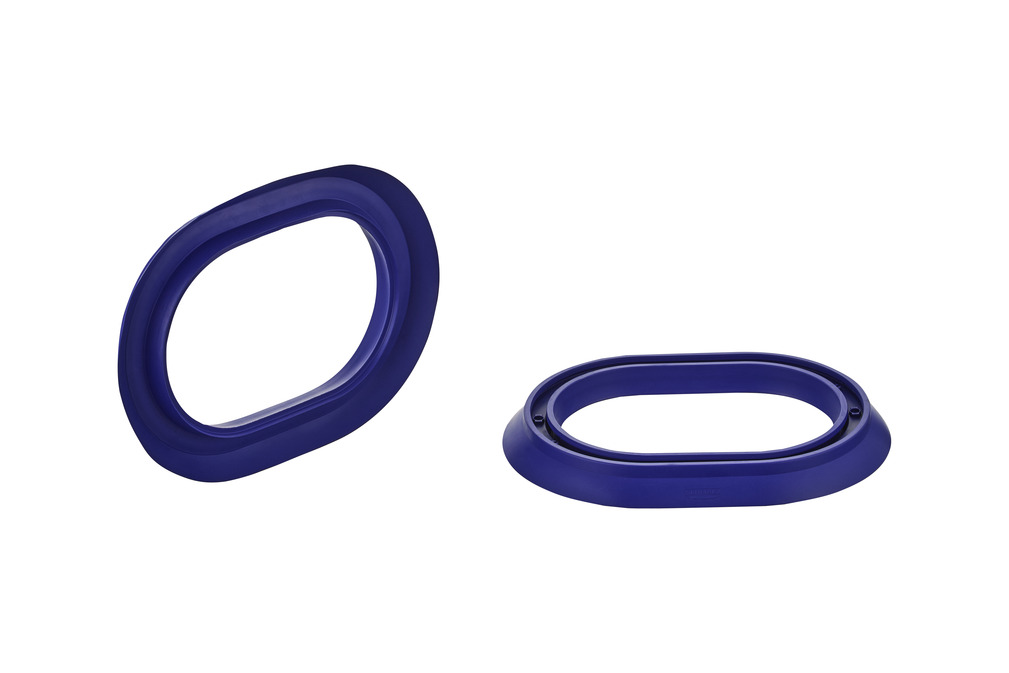

DR-PSSG 290x215 NBR-60
New
DR-PSSG 290x215 NBR-60
10.01.54.00043
Sealing materialNitrile rubber
Construction usePSSG
Length L290 mm
Width B215 mm
Material hardness [Shore A]60 Shore A
ERS PSSG-290x215 DR-NBR60+B
New
ERS PSSG-290x215 DR-NBR60+B
10.01.54.00094
Construction usePSSG
Size290x215

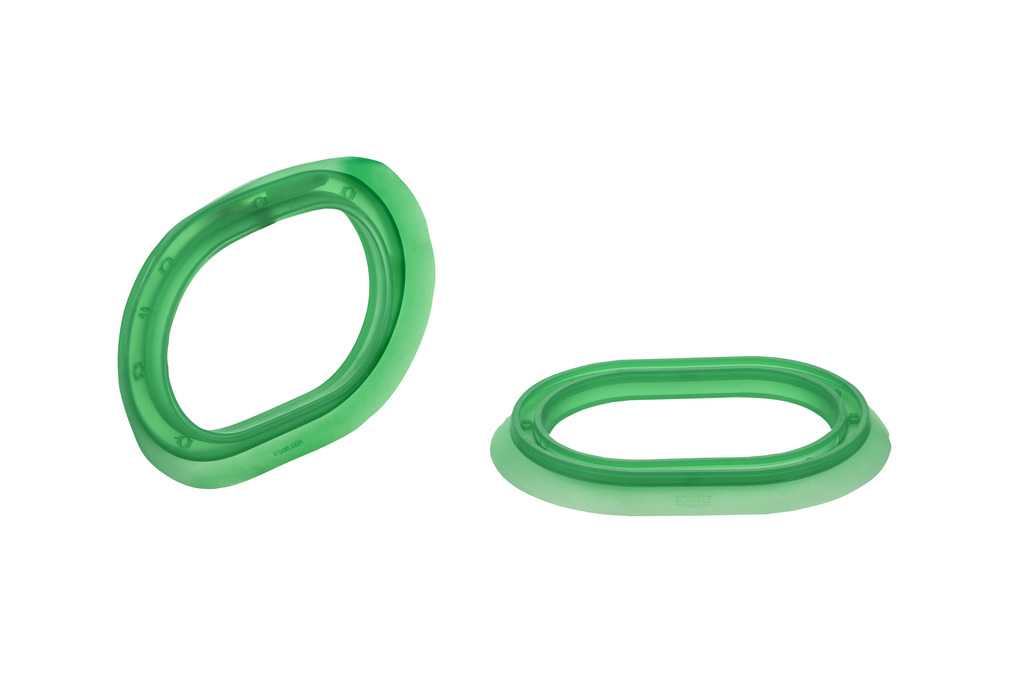

DR-PSSG 290x215 SI-55
New
DR-PSSG 290x215 SI-55
10.01.54.00054
Sealing materialSilicone SI
Construction usePSSG
Length L290 mm
Width B215 mm
Material hardness [Shore A]55 Shore A

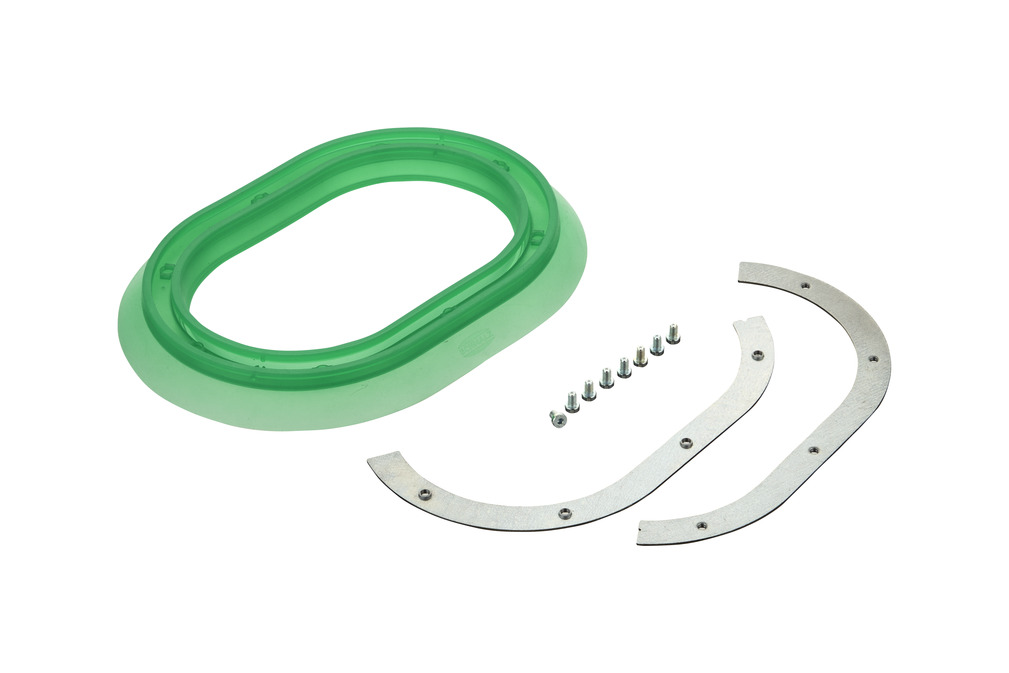

ERS PSSG-290x215 DR-SI55+B
New
ERS PSSG-290x215 DR-SI55+B
10.01.54.00095
Construction usePSSG
Size290x215

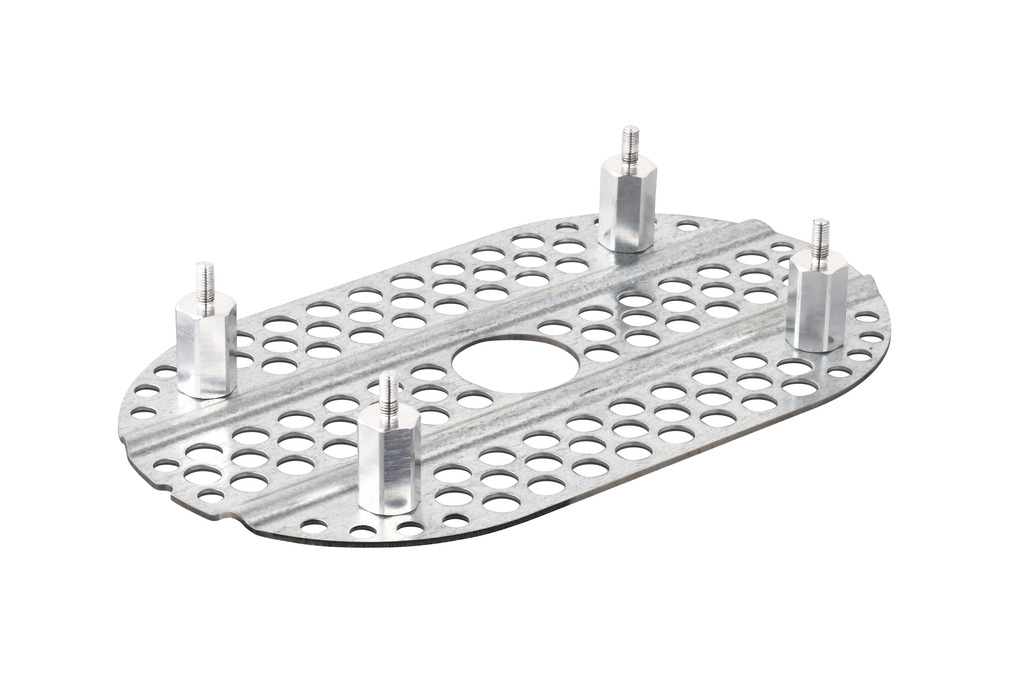

LOCH-PL 202x127x29 ST PSSG
New
LOCH-PL 202x127x29 ST PSSG
10.01.54.00057
Length L202 mm
Width B127 mm
Height H29 mm
MaterialSteel
Construction usePSSG
SEP HF 2 13 22
Efficient
SEP HF 2 13 22
10.02.01.01347
ShapeHigh flow
Number of stages2
Nozzle size1.3 mm
Hole diameter22 mm
Degree of evacuation61 %
Pressure range (operating pressure)2.0 ... 6.0 bar
Pressure optimal4 bar
Suction rate (max.)175.3 l/min
Air consumption suction74 l/min

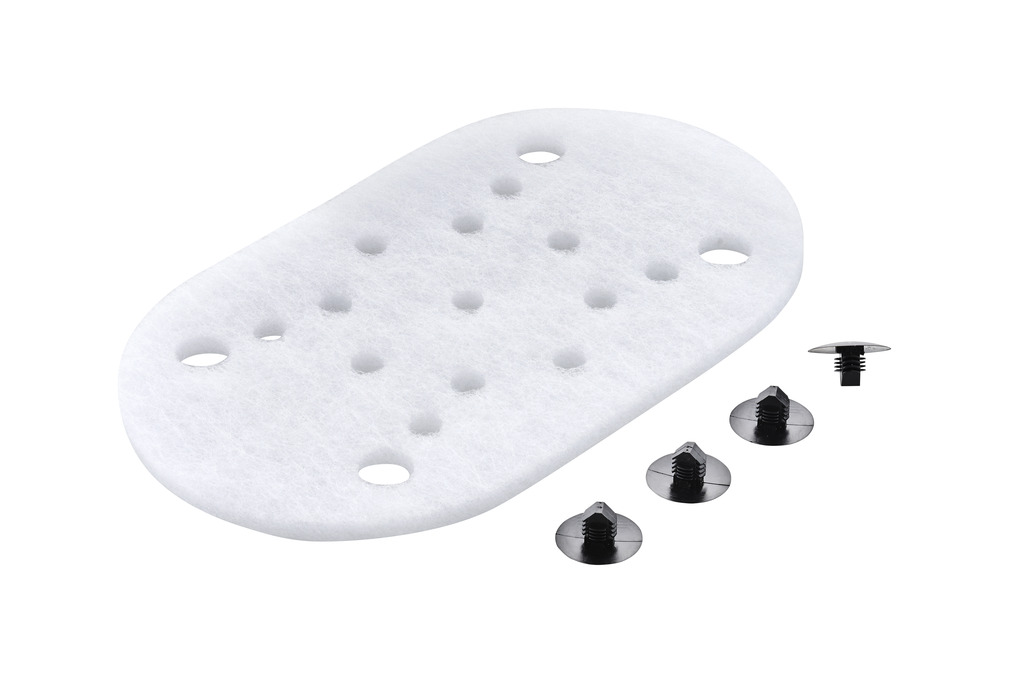

ERS-SET-FILT-PL PSSG 290x215
New
ERS-SET-FILT-PL PSSG 290x215
10.01.54.00082
Construction usePSSG
Size290x215

Accessories

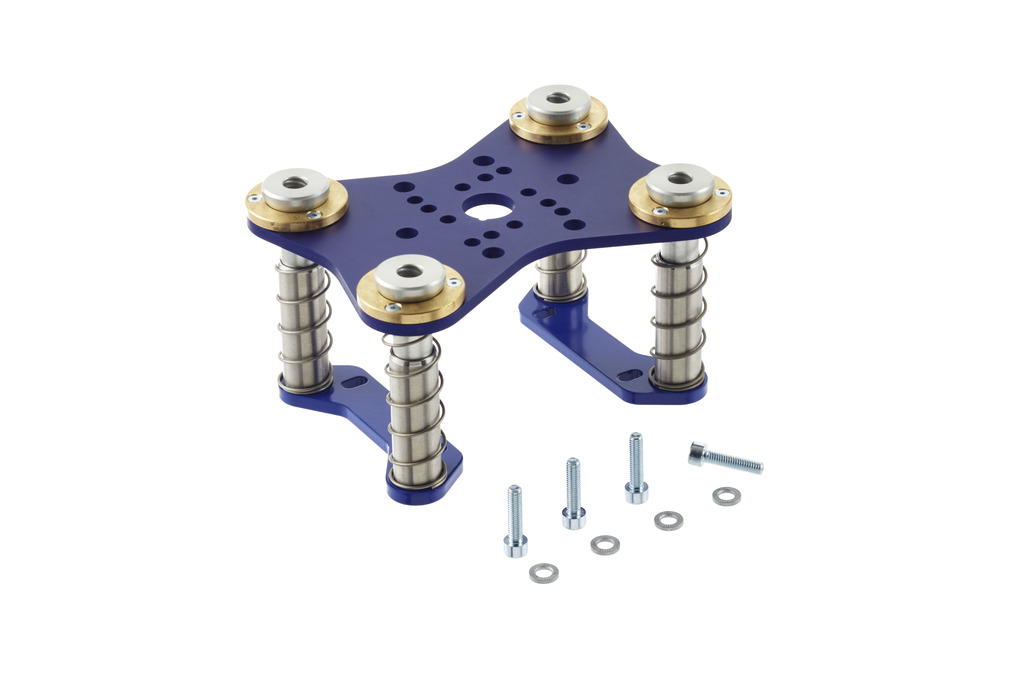

MOD-FLAN 175x134 PSSG FL-4
New
MOD-FLAN 175x134 PSSG FL-4
10.01.54.00105
Length L175 mm
Width B134 mm
Height H90.5 mm
Construction usePSSG
ShapeFloating
Maximum load30 kg
Spring rate0.529 N/mm

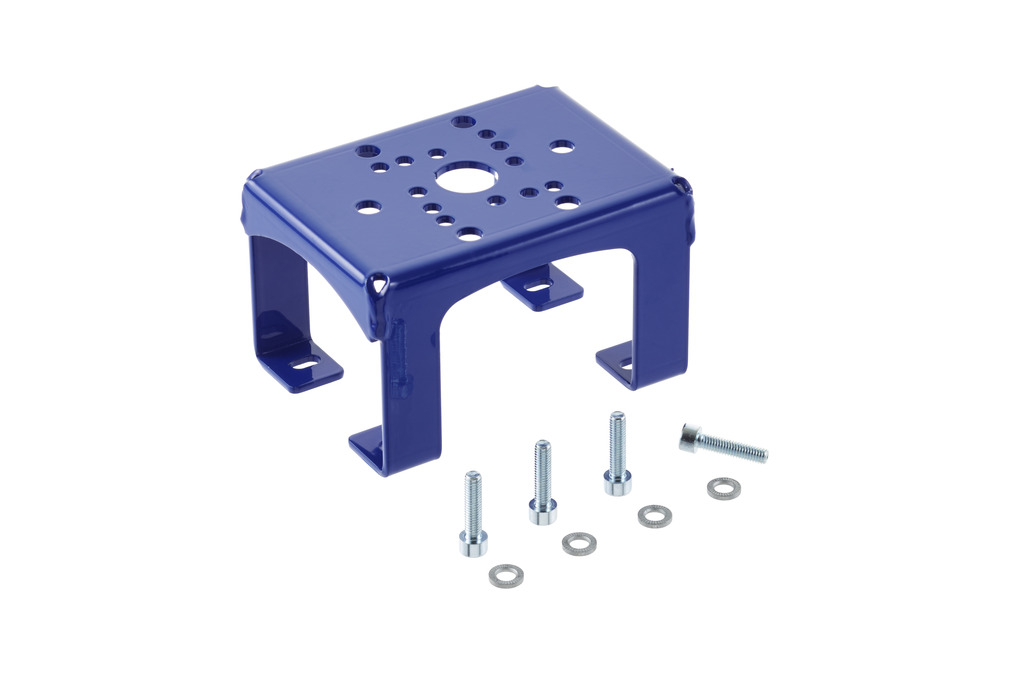

MOD-FLAN 132x96 PSSG RD
New
MOD-FLAN 132x96 PSSG RD
10.01.54.00107
Length L132 mm
Width B96 mm
Height H80 mm
ShapeRigid
Construction usePSSG
SCHL-AN W 32.5-47x47x35 PSSG
New
SCHL-AN W 32.5-47x47x35 PSSG
10.01.54.00050
construction shape fittingsAngle
External diameter D32.5 mm
Height H35 mm
Hole spacing Y135 mm
Hole spacing X135 mm
Construction usePSSG

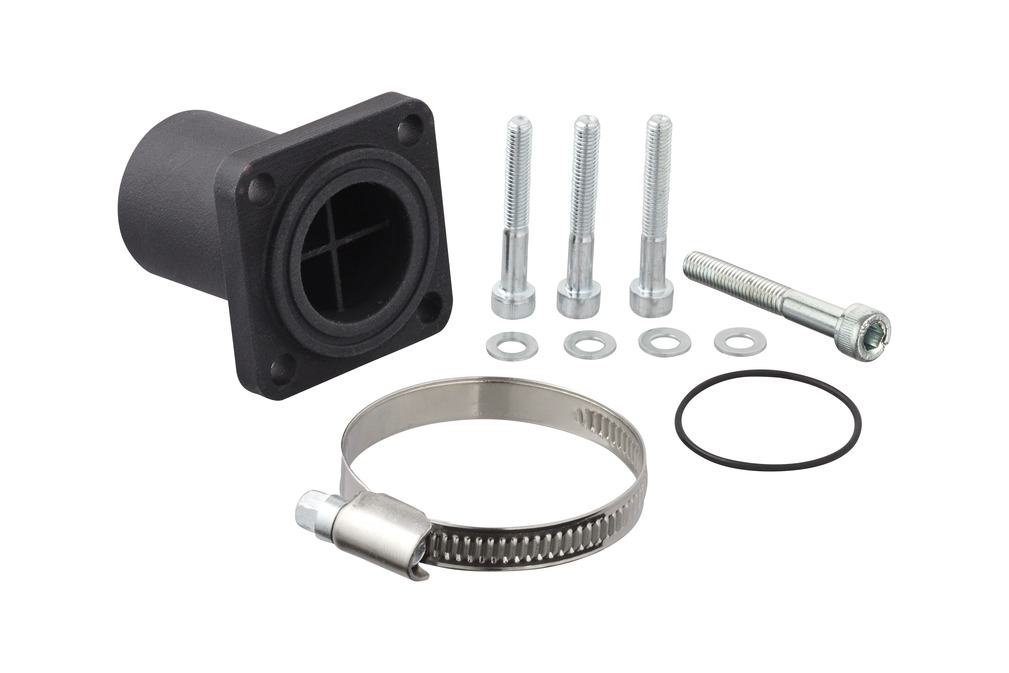

SCHL-AN 32.5-47x47x48 PSSG
New
SCHL-AN 32.5-47x47x48 PSSG
10.01.54.00038
External diameter D32.5 mm
Height H48 mm
Hole spacing Y135 mm
Hole spacing X135 mm
Construction usePSSG

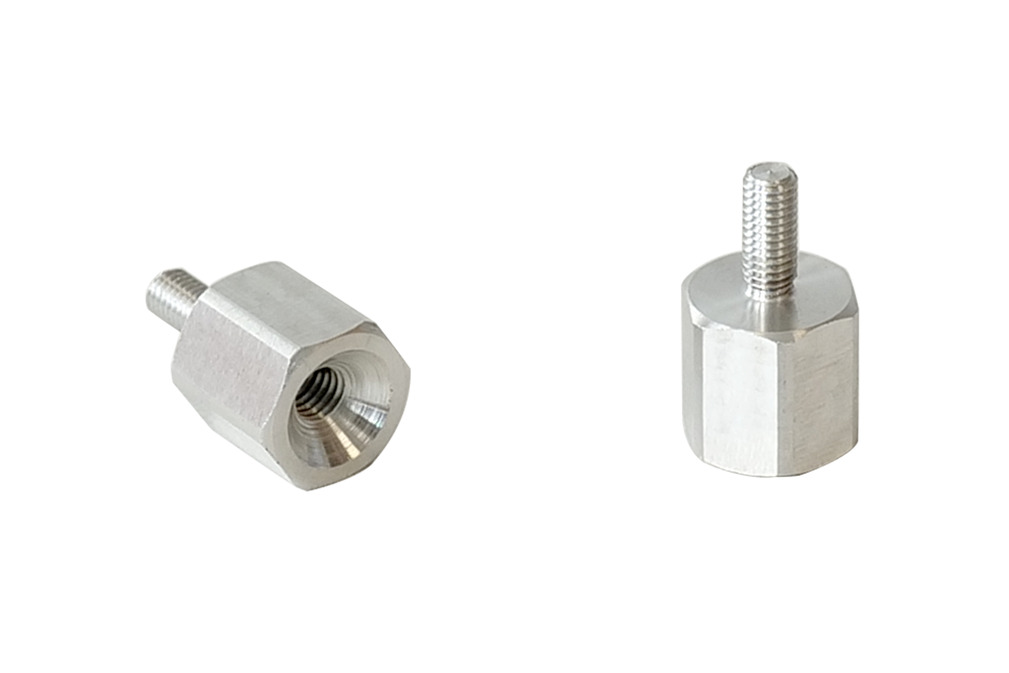

WELLE 16.5x27 PSSG
New
WELLE 16.5x27 PSSG
10.01.54.00045
External diameter D16.5 mm
Length L27 mm
Construction usePSSG
VSi V D M8-4
VSi V D M8-4
schmalz-select schmalz-connect
10.06.02.00577
Measuring range-1,0 ... 0,0 bar
Construction shape vacuum switchwith display
Electrical connectionMale connect M8, 4 pole
Indication2xLED
Protection type IPIP 65

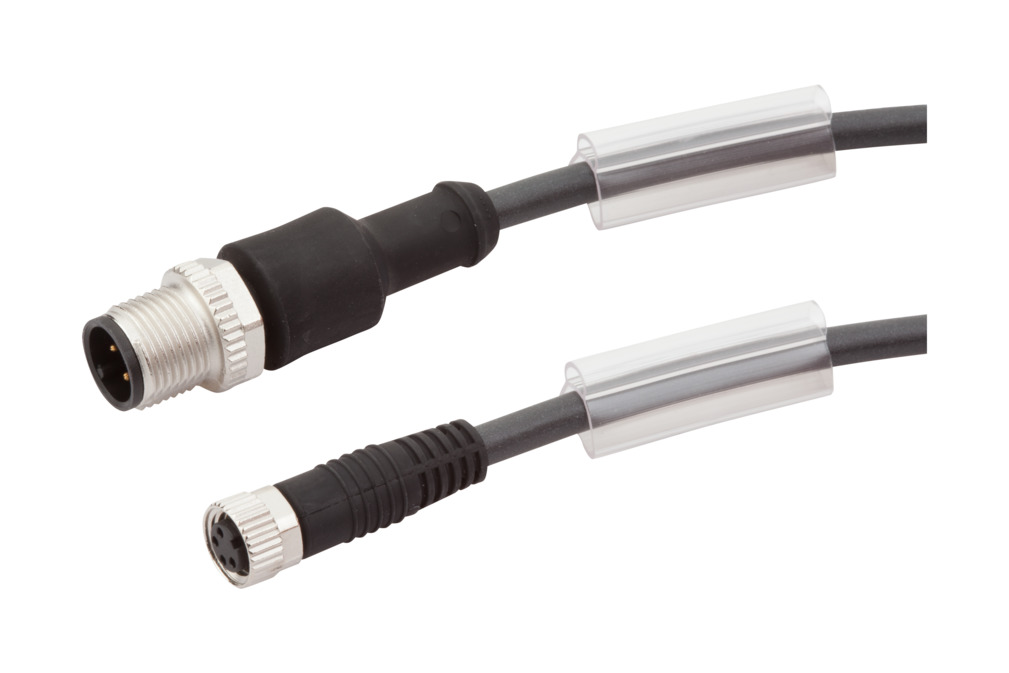

ASK B-M8-4 5000 S-M12-4
ASK B-M8-4 5000 S-M12-4
21.04.05.00264
Electrical connectionFem connect M8, 4 pol
Cable length5,000 mm
Material hosePUR cable

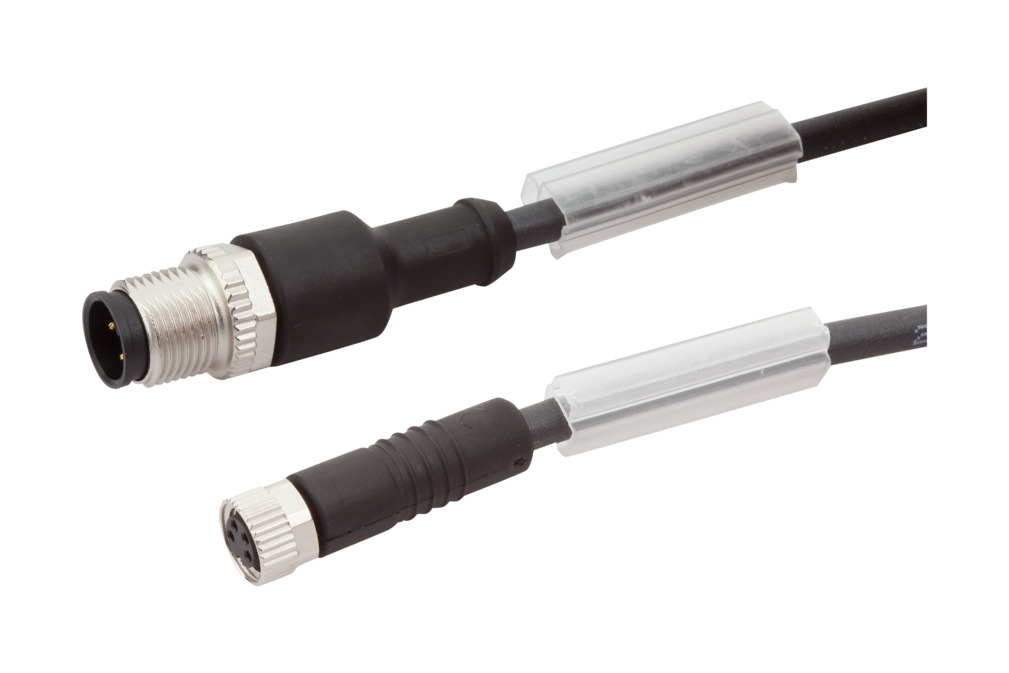

ASK-S B-M8-4 1500 S-M12-4 PUR
