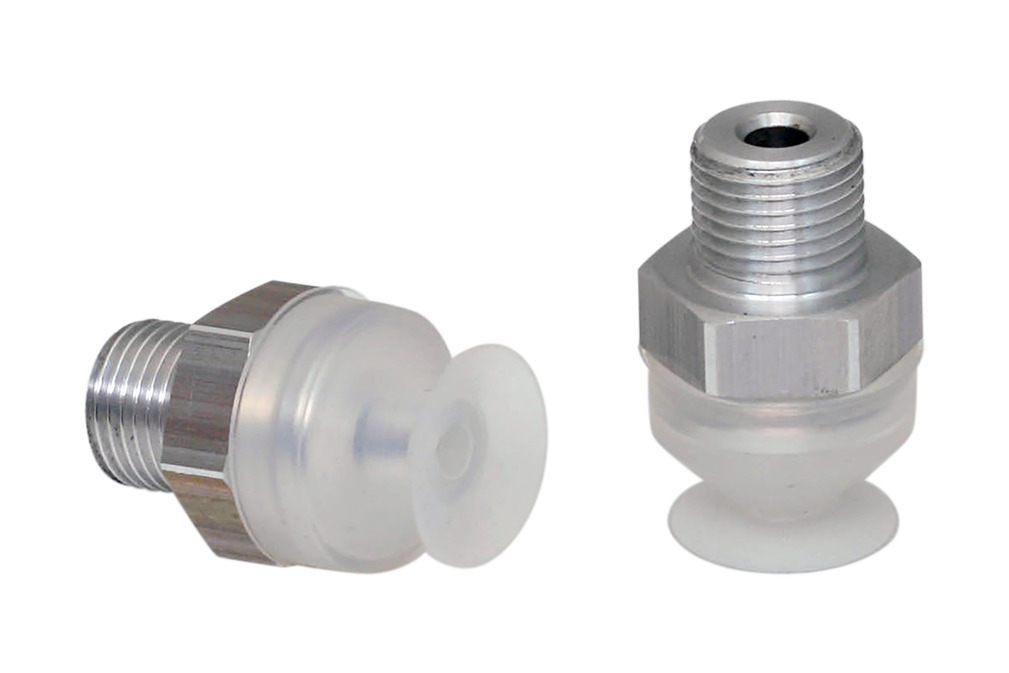

SGAN 13 SI-55 G1/8-AG

Part no.: 10.01.01.00806

Flat suction cup (round) for particularly sensitive workpieces

SGAN 13 SI-55 G1/8-AG
Size13
Suction cup materialSilicone SI
Material hardness [Shore A]55 Shore A
ConnectionG1/8"-M
SGAN 13 SI-55 G1/8-AG
Attribute Value
dn 3 mm
Dmax(S) 13.50 mm
Ds 12 mm
G1 G1/8"-M
H 17 mm
LG1 8 mm
SW1 14 mm
Z (Stroke) 2 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Suction force 4.70 N
Volume 0.44 cm³
Curve radius (min) (convex) 12.50 mm
Hose diameter (rec.) d 4 mm
Size 13
Nipple family N 029
Suction cup material Silicone SI
Material hardness [Shore A] 55 Shore A
Weight 5.60 g
Number of folds 0
Product family SGAN


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SGAN 13 SI-55 G1/8-AG

Suction cup SGAN (elastomer part + connection nipple) is delivered unassembled. The delivery consists of:

  • Suction cup of type SGA – elastomer part, available in various diameters and materials

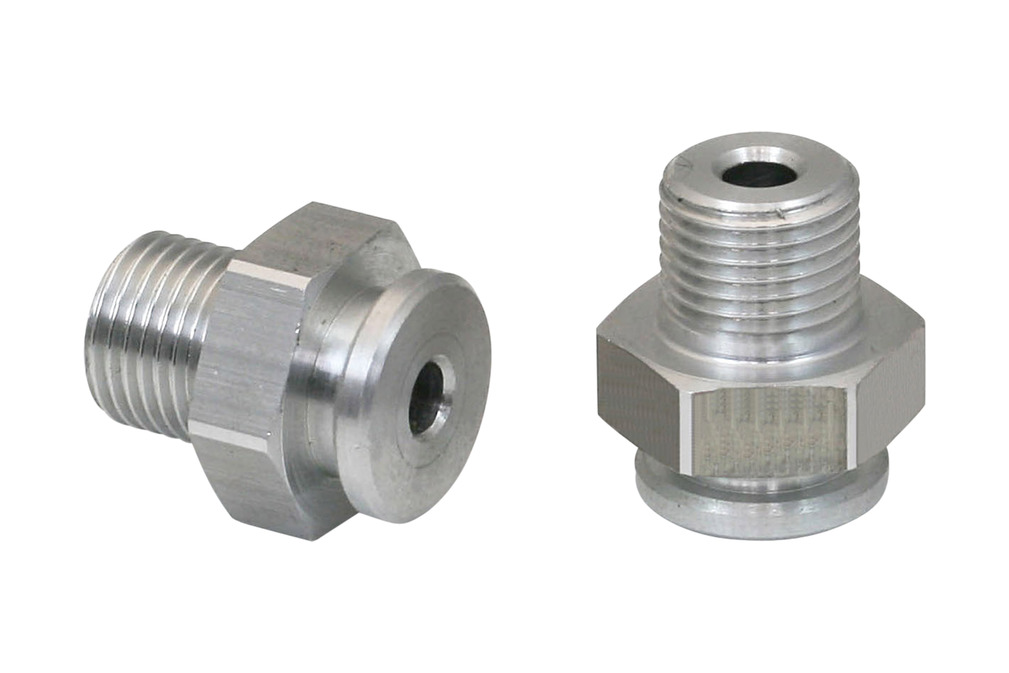

  • Connection nipple of type SA-NIP – available with various threads



Available spare parts: suction cup SGA, connection nipple SA-NIP
