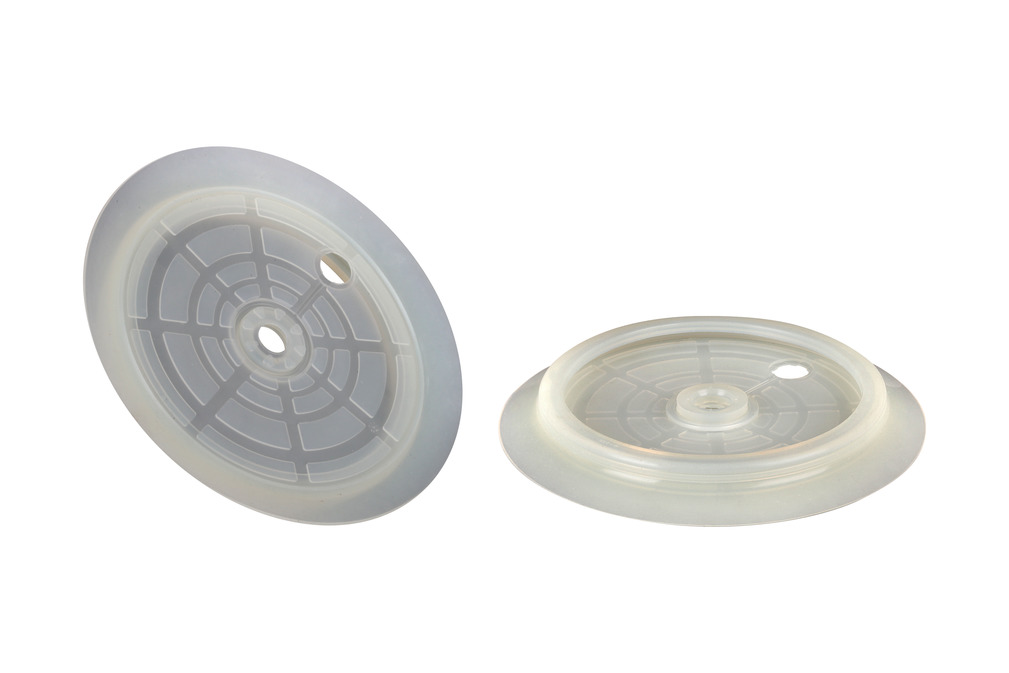

DR-SPU 300 SI-55

Part no.: 10.01.01.01132

Sealing ring for suction plate SPU

DR-SPU 300 SI-55
Size300
Suction cup materialSilicone SI
Material hardness [Shore A]55 Shore A
DR-SPU 300 SI-55
Attribute Value
d2 249.20 mm
Ds 300 mm
Dmax(S) 302.40 mm
H 25.50 mm
Z (Stroke) 4.50 mm


Note: Acceptable dimensional tolerances for rubber parts concerning to DIN ISO 3302-1 M3
Attribute Value
Size 300
Material hardness [Shore A] 55 Shore A
Suction cup material Silicone SI
Weight 398.50 g
Product family DR-SPU

Ordering information: DR-SPU 300 SI-55
