SA-NIP N014 G1/4-AG DN600

Part no.: 10.01.06.00184

Suction cup connection nipple

SA-NIP N014 G1/4-AG DN600
Thread G1G1/4"-M
Fitting length5 mm
MaterialAluminum
External diameter D16.5 mm
Nominal size600
Spanner size SW26 mm
SA-NIP N014 G1/4-AG DN600

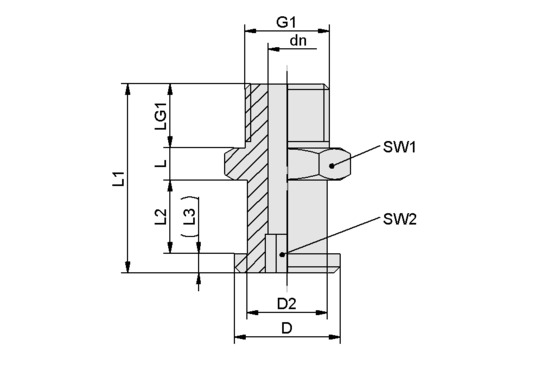

Attribute Value
dn 6 mm
D 16.50 mm
D2 12.50 mm
G1 G1/4"-M
L 5 mm
L1 29.50 mm
L2 11.50 mm
L3 3 mm
LG1 10 mm
SW1 17 mm
SW2 6 mm
Attribute Value
Nipple family N 014
Material Aluminum
Weight 9.90 g

Ordering information: SA-NIP N014 G1/4-AG DN600
