SPB1 20 ED-65 G1/8-AG

Part no.: 10.01.06.03492

Bellows suction cup (round) for very uneven workpieces

SPB1 20 ED-65 G1/8-AG
Size20
Suction cup materialElastodur ED
Material hardness [Shore A]65 Shore A
Thread G1G1/8"-M
Number of folds1.5
SPB1 20 ED-65 G1/8-AG

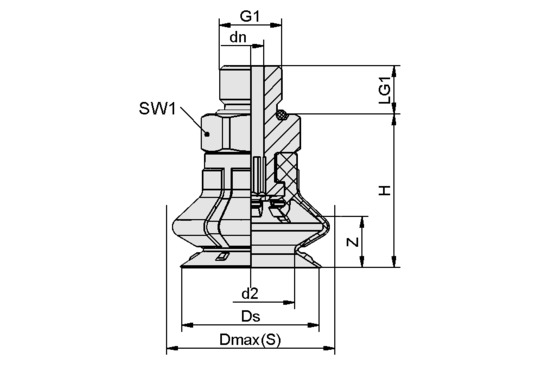

Attribute Value
d2 13.80 mm
dn 4.10 mm
Dmax(S) 26.30 mm
Ds 21.40 mm
G1 G1/8"-M
H 24 mm
LG1 7.50 mm
SW1 14 mm
Z (Stroke) 8 mm
Attribute Value
Suction force 9.90 N
Pull-off force 16.20 N
Lateral force 9.80 N
Volume 3.11 cm³
Curve radius (min) (convex) 15 mm
Hose diameter (rec.) d 4 mm
Size 20
Number of folds 1.50
Suction cup material Elastodur ED
Material hardness [Shore A] 65 Shore A
Weight 6.30 g
Product family SPB1


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Product recommendations

Basic Ejectors SBPL
Basic Ejectors SBPL
  • Suction rate: 290 to 1,140 l/min
  • Max. vacuum: 61 or 90 %
  • Main body made of plastics
×
Basic Ejectors SBPL
Basic ejector with extremely high suction capacity for handling airtight or porous workpieces, in systems with central vacuum generation.
Vacuum / Compressed Air Hoses VSL
Vacuum / Compressed Air Hoses VSL
  • External/internal diameters from 4/2 to 87/75
  • Material: PA, PE, PU, PVC
×
Vacuum / Compressed Air Hoses VSL
Vacuum / compressed air hose made from PA, PE, PU or PVC, optionally reinforced with hard PVC spirals, wire spirals or fabric lining.

Ordering information: SPB1 20 ED-65 G1/8-AG

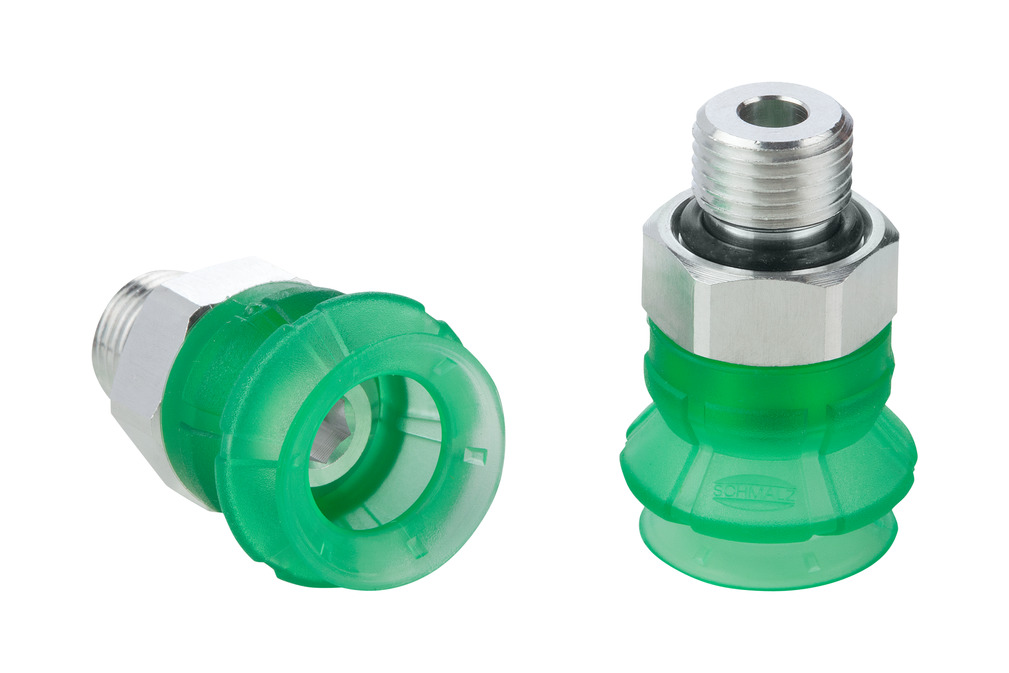

Suction cup SPB1 (elastomer part + connection element) is delivered assembled. The assembly consists of:

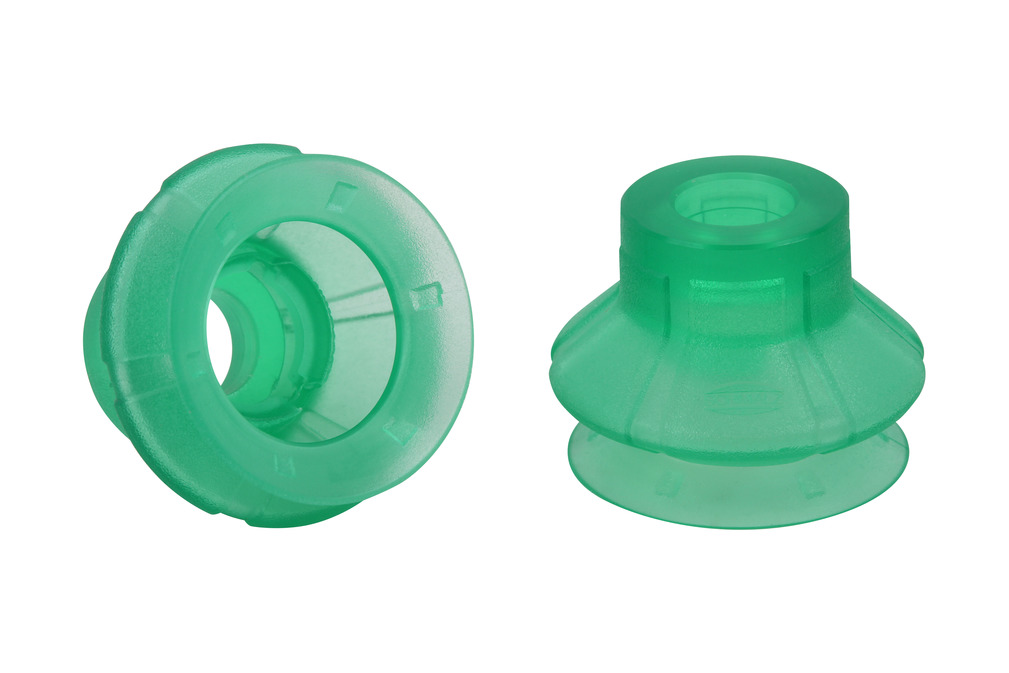

  • Suction cup of type SPB1 – elastomer part, available in various diameters
  • Connection element of type SC – available with various threads



Available spare parts: suction cup SPB1, connection element (Schmalz-Connector)

Available accessories: filter screen (sieve, round), suction cup insert
