SDC1 20 PU 30/60 G1/8-AG

Part no.: 10.01.06.05536

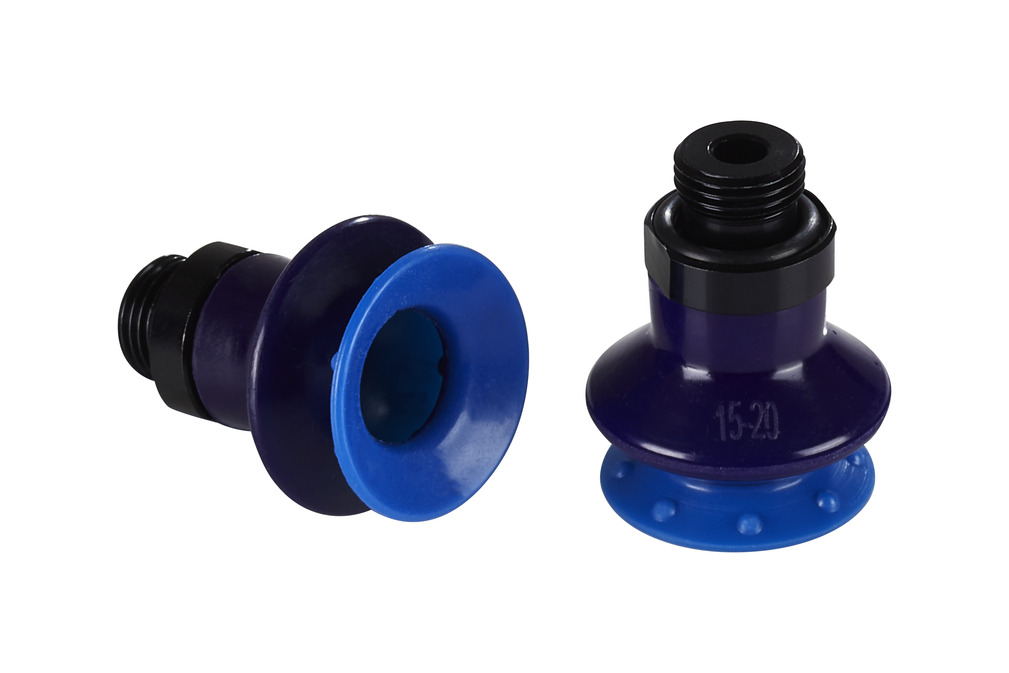

Bellows suction cup (round) for structured and rough workpiece surfaces

SDC1 20 PU 30/60 G1/8-AG
New
Size20
Suction cup materialPolyurethane PU
Material hardness [Shore A]30 Shore A
Material hardness60 Shore A
ConnectionG1/8-AG
Number of folds1.5
SDC1 20 PU 30/60 G1/8-AG

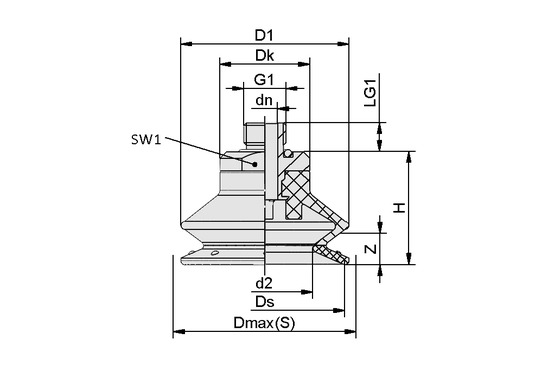

Attribute Value
d2 10 mm
dn 4 mm
D1 22 mm
Dk 12 mm
Dmax(S) 24 mm
Ds 20 mm
G1 G1/8-AG
H 23 mm
H3 7 mm
LG1 7.50 mm
SW1 13 mm
Z (Stroke) 7.50 mm
Attribute Value
Size 20
Suction cup material Polyurethane PU
Material hardness [Shore A] 30 Shore A
Material hardness 60 Shore A
Connection G1/8-AG
Number of folds 1.50
Suction force 4.70 N
Pull-off force 12.60 N
Volume 2 cm³
Curve radius (min) (convex) 10 mm
Hose diameter (rec.) d 6 mm
Temperature resistance 55 °C


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: SDC1 20 PU 30/60 G1/8-AG

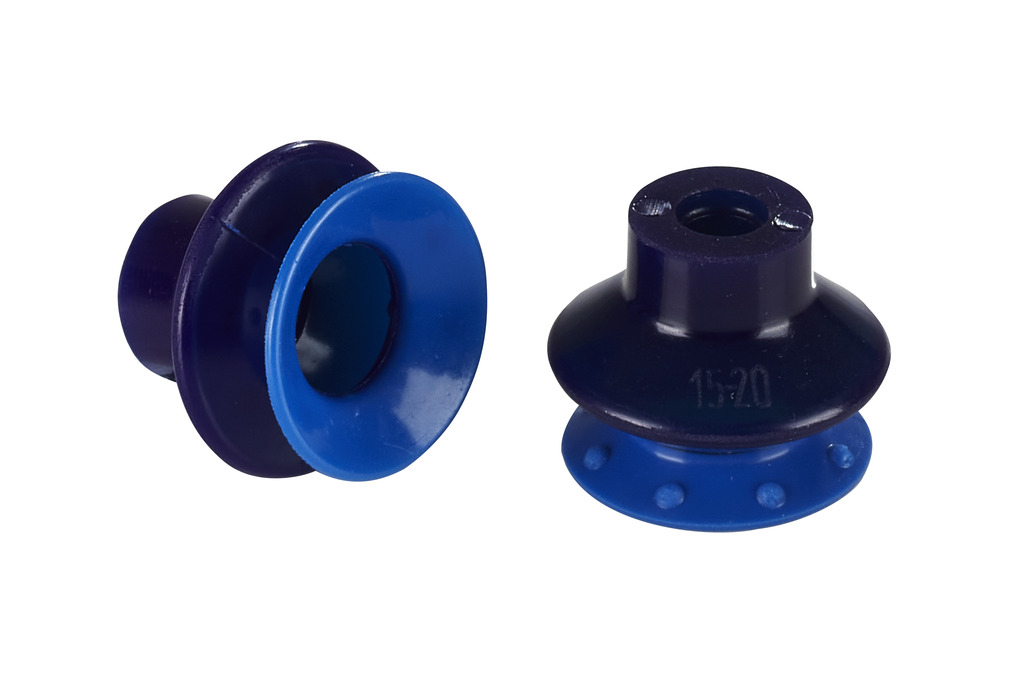

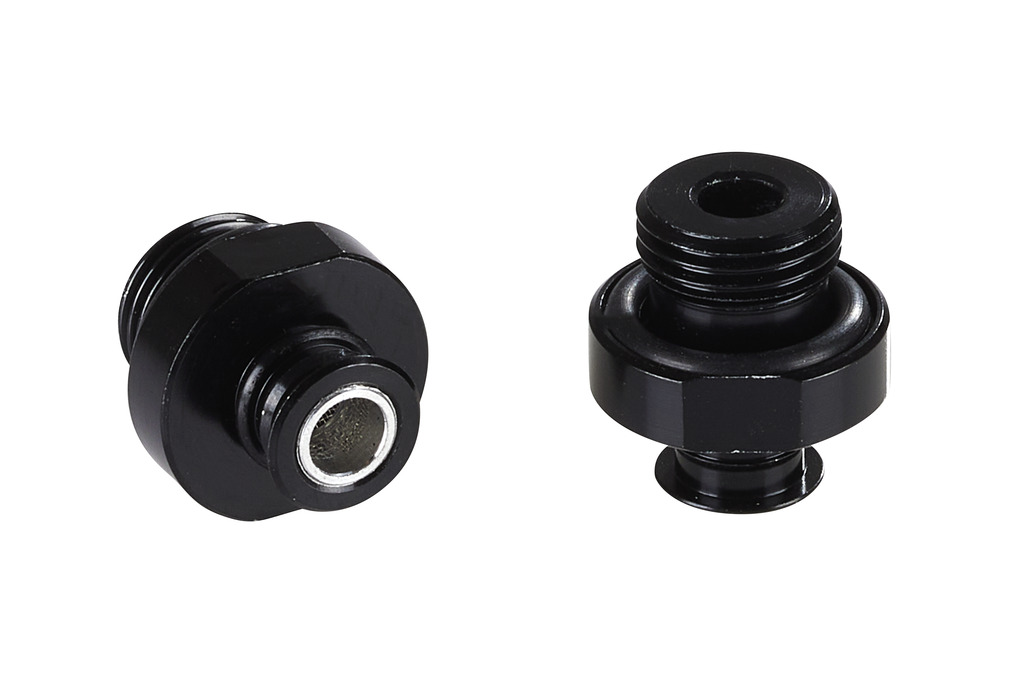

The suction cup SDC1, available in various diameters, is supplied with the connection nipple assembled.
