FGA 20 SI-MD-55 N016

Part no.: 10.01.06.03892

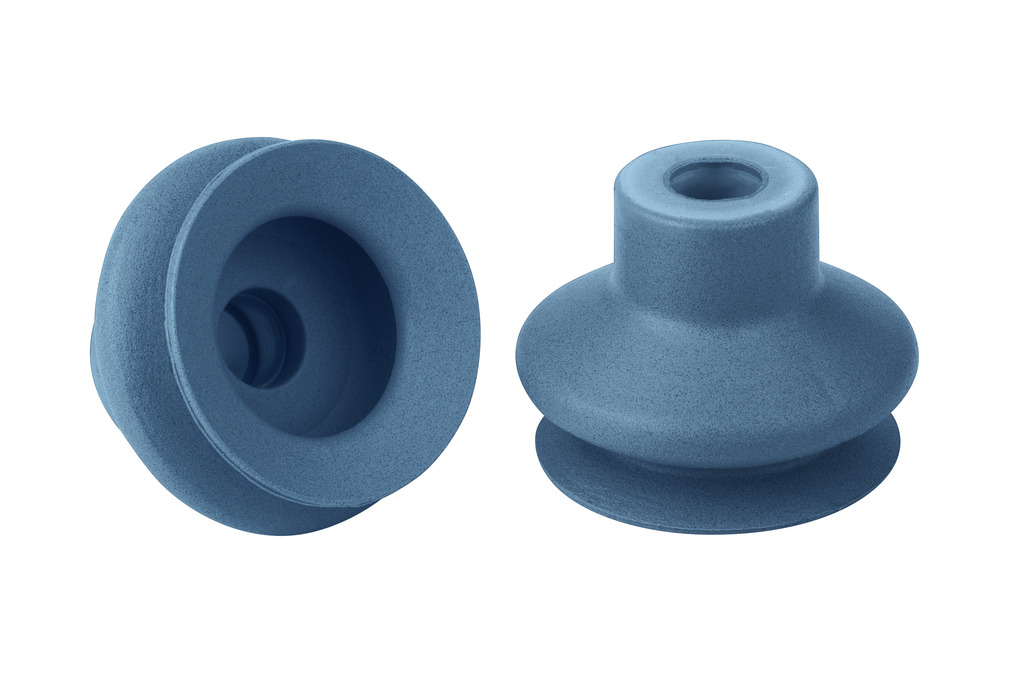

Bellows suction cup (round) with optimal adaptation to uneven surfaces

FGA 20 SI-MD-55 N016
Size20
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 Shore A
Material characteristicsFDA-compatible
Number of folds1.5
FGA 20 SI-MD-55 N016

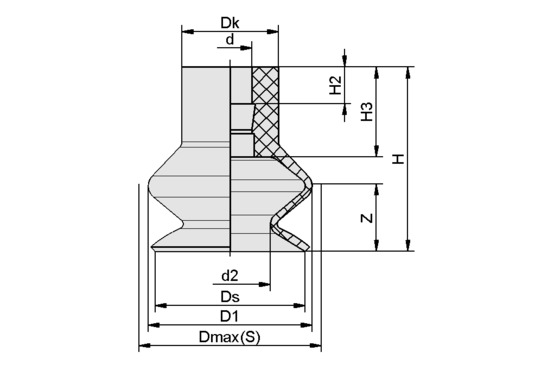

Attribute Value
d 4.50 mm
d2 11 mm
D1 19.90 mm
Dk 10 mm
Dmax(S) 21 mm
Ds 18.10 mm
H 15.20 mm
H2 3.80 mm
H3 8.70 mm
Z (Stroke) 4.40 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Number of folds 1.50
Suction force 4.70 N
Size 20
Suction cup material Silicone SI metal detectable
Weight 1.50 g
Curve radius (min) (convex) 8.50 mm
Product family FGA


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: FGA 20 SI-MD-55 N016
