FGA 22 HT1-60 N016

Part no.: 10.01.06.01249

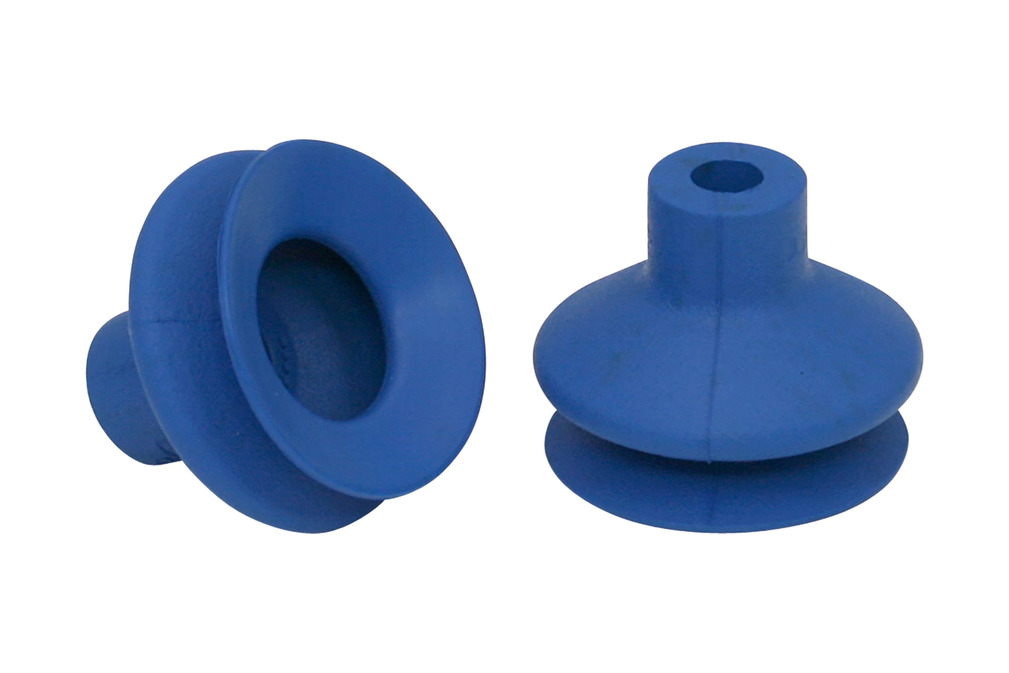

Bellows suction cup (round) with optimal adaptation to uneven surfaces

FGA 22 HT1-60 N016
Size22
Suction cup materialHigh temperature material HT1
Material hardness [Shore A]60 Shore A
Number of folds1.5
FGA 22 HT1-60 N016
Attribute Value
d 4.50 mm
d2 11.70 mm
D1 24.20 mm
Dk 10 mm
Dmax(S) 25 mm
Ds 21.50 mm
H 19 mm
H2 3.80 mm
H3 9.10 mm
Z (Stroke) 6 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Number of folds 1.50
Suction force 5.70 N
Size 22
Suction cup material High temperature material HT1
Weight 2 g
Curve radius (min) (convex) 25 mm
Product family FGA


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: FGA 22 HT1-60 N016
