FG 42 SI-MD-55 N018

Part no.: 10.01.06.04286

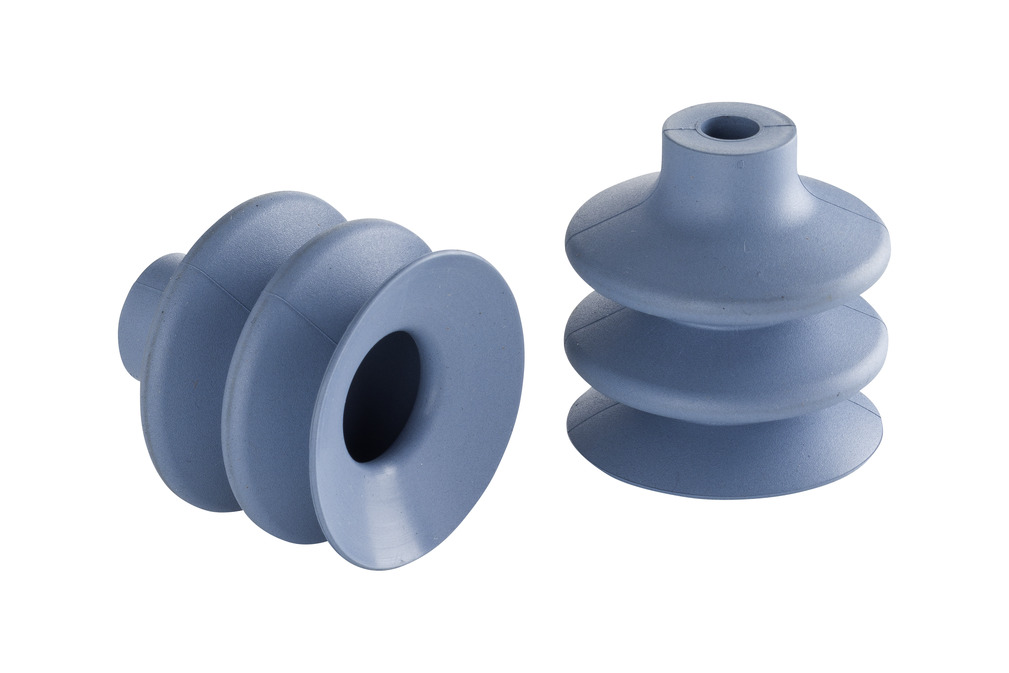

Bellows suction cup (round) for very uneven workpieces

FG 42 SI-MD-55 N018
Size42
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 Shore A
Material characteristicsFDA-compatible
Number of folds2.5
FG 42 SI-MD-55 N018

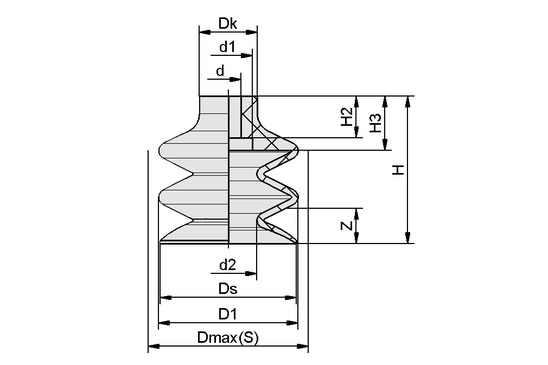

Attribute Value
d 8 mm
d1 15 mm
d2 17.80 mm
D1 43.50 mm
Dk 18 mm
Dmax(S) 45 mm
Ds 42.60 mm
H 46 mm
H2 13 mm
H3 17 mm
Z (Stroke) 20 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Suction force 14.93 N
Pull-off force 44 N
Volume 19.79 cm³
Curve radius (min) (convex) 75 mm
Size 42
Nipple family N 018
Number of folds 2.50
Suction cup material Silicone SI metal detectable
Material hardness [Shore A] 55 Shore A
Weight 23.60 g
Product family FG


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: FG 42 SI-MD-55 N018
