FG 12 SI-MD-55 N016

Part no.: 10.01.06.04134

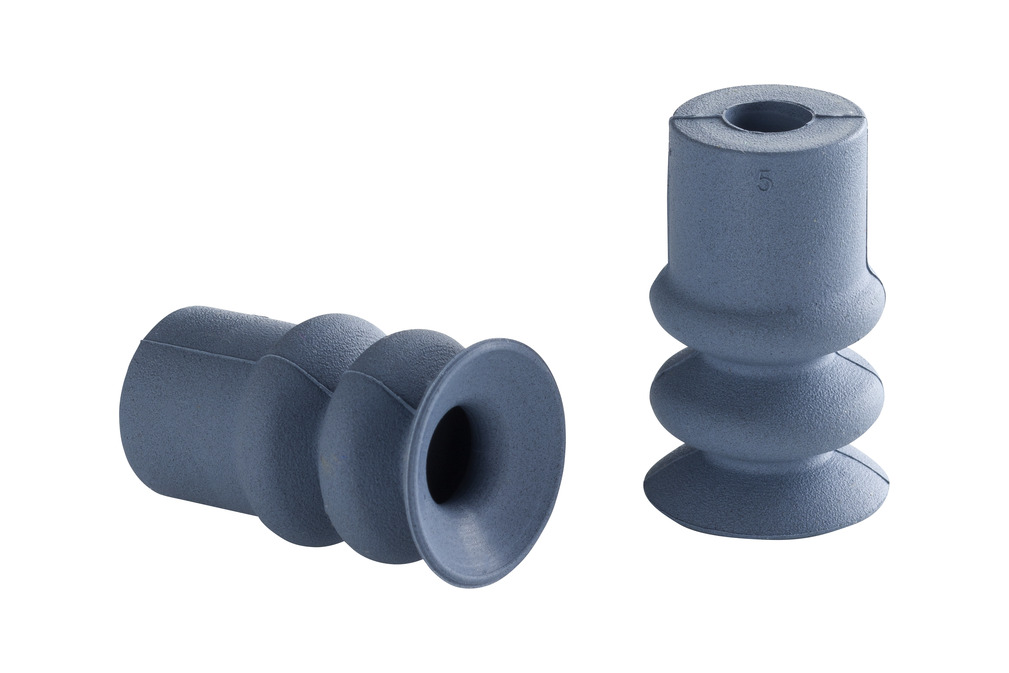

Bellows suction cup (round) for very uneven workpieces

FG 12 SI-MD-55 N016
Size12
Suction cup materialSilicone SI metal detectable
Material hardness [Shore A]55 Shore A
Material characteristicsFDA-compatible
Number of folds2.5
FG 12 SI-MD-55 N016

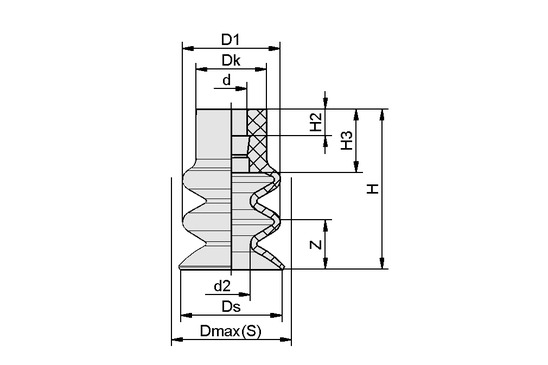

Attribute Value
d 4.50 mm
d2 5 mm
D1 12 mm
Dk 10 mm
Dmax(S) 13 mm
Ds 12 mm
H 21 mm
H2 3.80 mm
H3 9 mm
Z (Stroke) 7 mm


Note: Acceptable dimensional tolerances for elastomer parts concerning to DIN ISO 3302-1 M3
Attribute Value
Suction force 1.18 N
Pull-off force 3.50 N
Volume 0.75 cm³
Curve radius (min) (convex) 5.50 mm
Size 12
Nipple family N 016
Number of folds 2.50
Suction cup material Silicone SI metal detectable
Material hardness [Shore A] 55 Shore A
Weight 1.10 g
Product family FG


Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m

Ordering information: FG 12 SI-MD-55 N016
