SPOB1f 80x35 SI-55 G1/4-IG > Vacuum Suction Cups

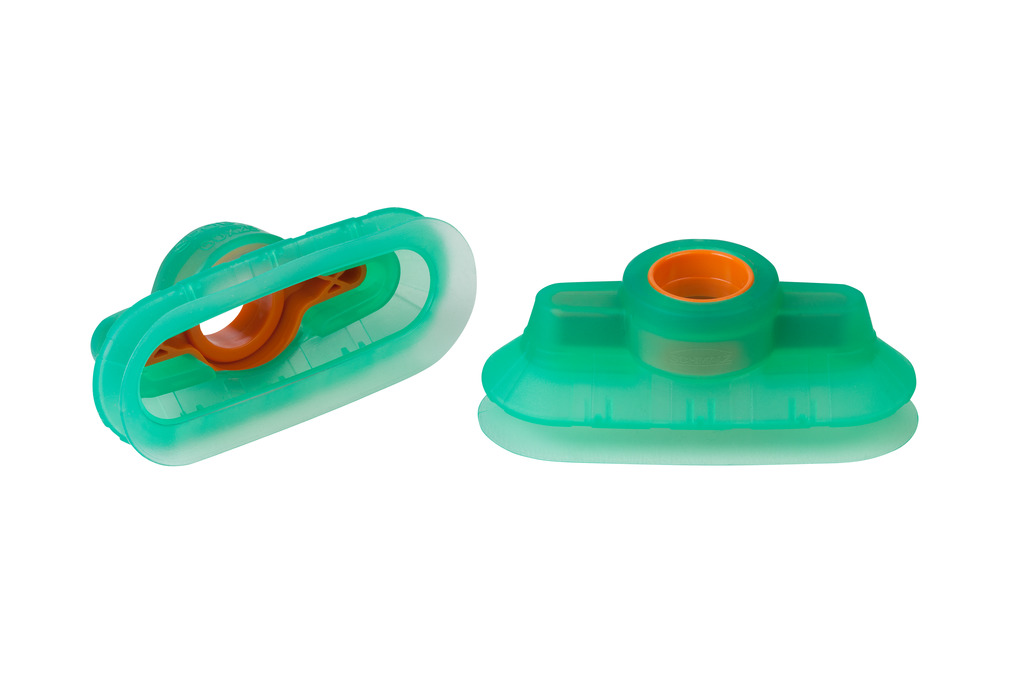

Bellows suction cup (oval) for high dynamic on curved, oily surfaced workpieces

Dimensions (LxB)	80 x 35
Suction cup material	Silicone SI
Material hardness [Shore A]	55 Shore A

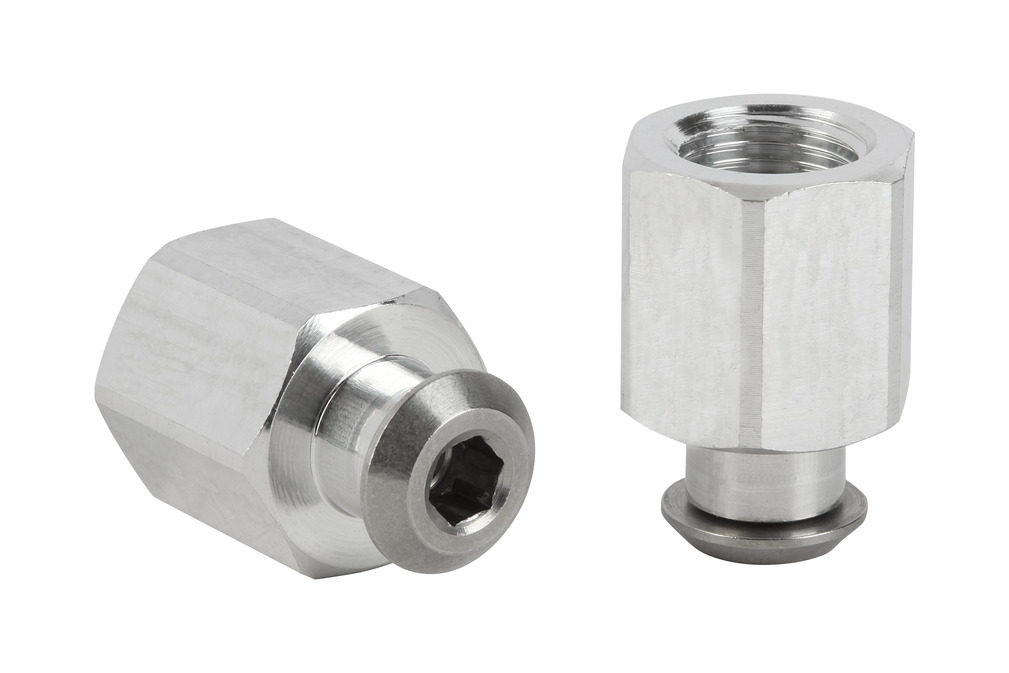

Thread G1	G1/4"-F
Number of folds	1.5

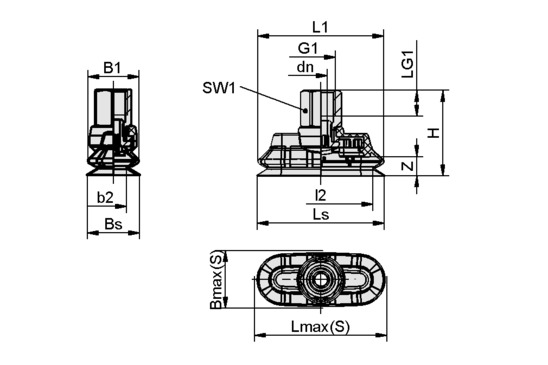

Attribute	Value
b2	21 mm
B1	35 mm
Bmax(S)	38 mm
Bs	34.50 mm
dn	6.10 mm
G1	G1/4"-F
H	44.20 mm
l2	66 mm
L1	80 mm
LG1	12 mm
Lmax.(S)	83 mm
Ls	79.50 mm
SW1	17 mm
Z (Stroke)	11 mm

Attribute	Value
Suction force at -200 mbar	24.90 N
Suction force at -400 mbar	49.80 N
Suction force	74.70 N
Volume	26.12 cm³
Workpiece width (min)	30 mm
Hose diameter (rec.) d	8 mm
Dimensions (LxB)	80 x 35
Number of folds	1.50
Suction cup material	Silicone SI
Material hardness [Shore A]	55 Shore A
Weight	26.20 g
Product family	SPOB1f

Note: Suction force: The suction force values are theoretical values at -0.6 bar vacuum and a dry, smooth and even workpiece surface – they are specified without safety factors. Hose inner diameter: The recommended hose diameter refers to a hose length of approx. 2 m
