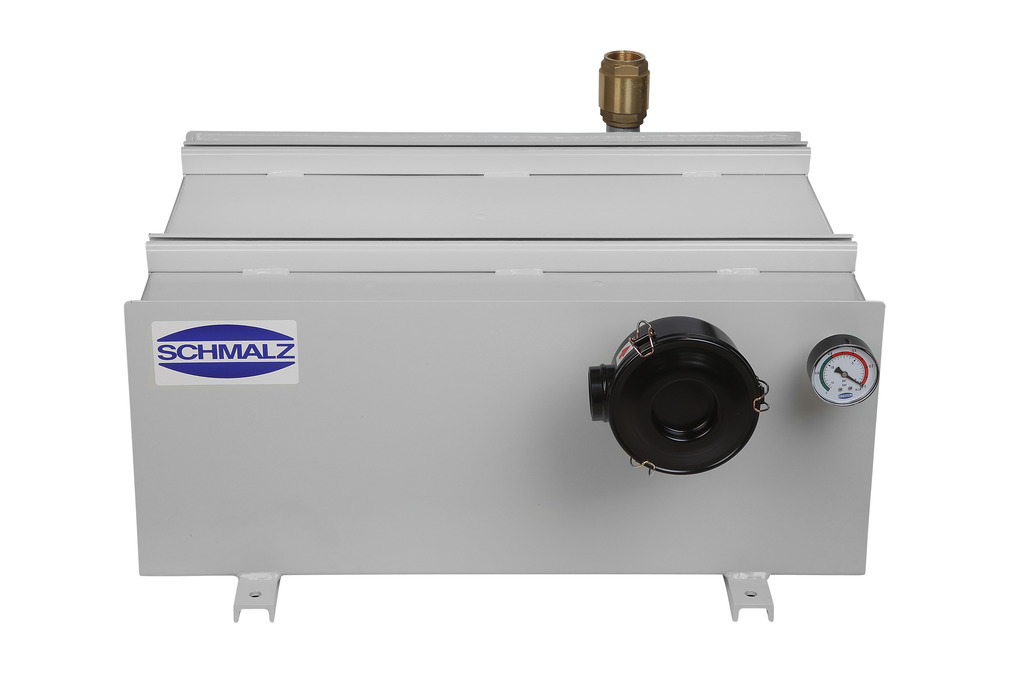

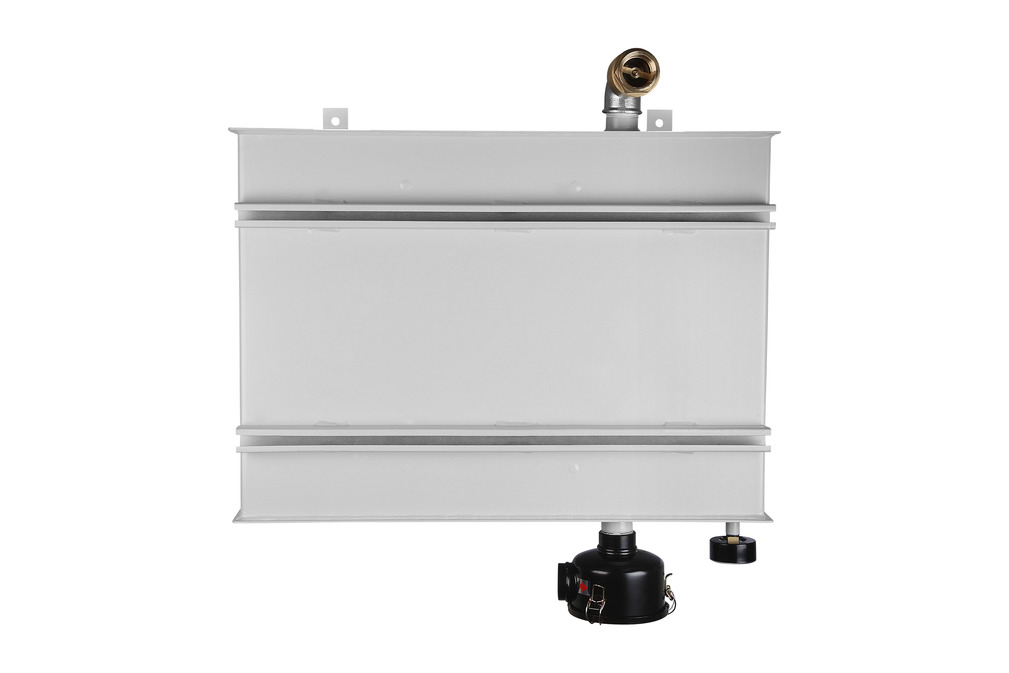

VOL 200 > Vacuum Generators | Schmalz

Vacuum reservoir

Reservoirs volume	200 l
Height H	434 mm
Add. function	Gauge, non-return valve, filter

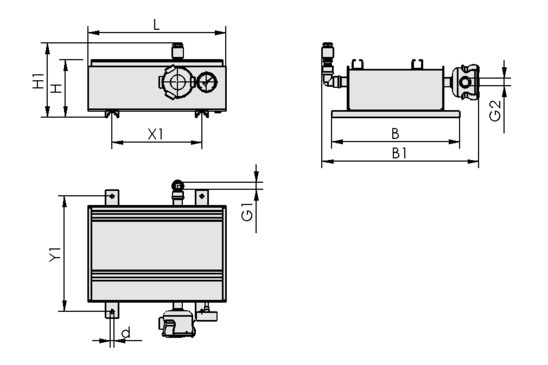

Attribute	Value
B	710 mm
B1	1015 mm
d	11 mm
G1	G2"-F
G2	G2-1/2"-F
H	434 mm
H1	495 mm
L	910 mm
X1	592 mm
Y1	670 mm

Attribute	Value
Reservoirs volume	200 l
Weight	97 kg
Product family	VOL
