EVE-TR-X 100 AC3 IE3-TYP3 F-VB

Part no.: 10.03.01.00424

Oil-free pump with const. suct. rate robust, requ. little maintenance long service life, cont. operation

EVE-TR-X 100 AC3 IE3-TYP3 F-VB
Current typeThree phase A.C.
Voltage at 50HzD200 / Y350 V ±10 % (without IE3)
Voltage at 60HzD220V/Y380-400V ±10%
Voltage at 60 Hz optD200 / Y350 V ±10 % (without IE3)
Suction rate (50 Hz)98 m³/h
Suction rate (60 Hz)112 m³/h
Sound level at 50 Hz75 dB(A)
Vacuum (50 Hz)-900 mbar
Vacuum (60 Hz)-900 mbar
ConstructionIE3:JPN/KOR/BRA
Rated power 50 Hz3 kW
Rated power 60 Hz3.6 kW
PermissionUL/CSA
Weight109.5 kg
PermissionUL/CSA
EVE-TR-X 100 AC3 IE3-TYP3 F-VB

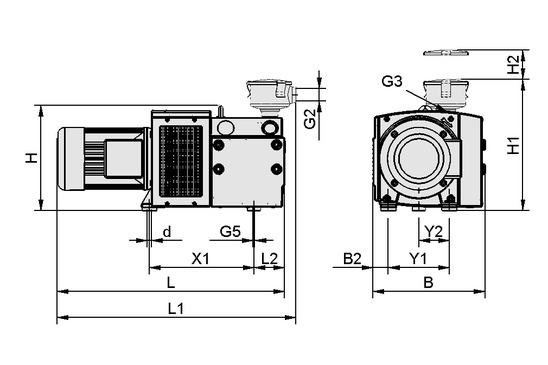

Attribute Value
B 470 mm
B2 107.50 mm
d 12 mm
G2 G1-1/4"-F
G3 G1-1/2"-F
G5 M8-F
H 336 mm
H1 425.70 mm
H2 75 mm
L 851 mm
L1 857.70 mm
L2 140 mm
X1 398 mm
Y1 245 mm
Y2 122.50 mm
Attribute Value
Suction rate (50 Hz) 98 m³/h
Suction rate (60 Hz) 112 m³/h
Voltage at 50Hz D200 / Y350 V ±10 % (without IE3)
Voltage at 60Hz D220V/Y380-400V ±10%
Rated power 50 Hz 3 kW
Rated power 60 Hz 3.60 kW
Sound level at 50 Hz 75 dB(A)
Weight 109.50 kg
Protection type IP IP 55
Current type AC3
Product family EVE-TR-X


Noise level according to DIN EN ISO 3744 (uncertainty factor KpA = 3 dB(A)), interval of 1 m, at medium load, both connection sides piped
