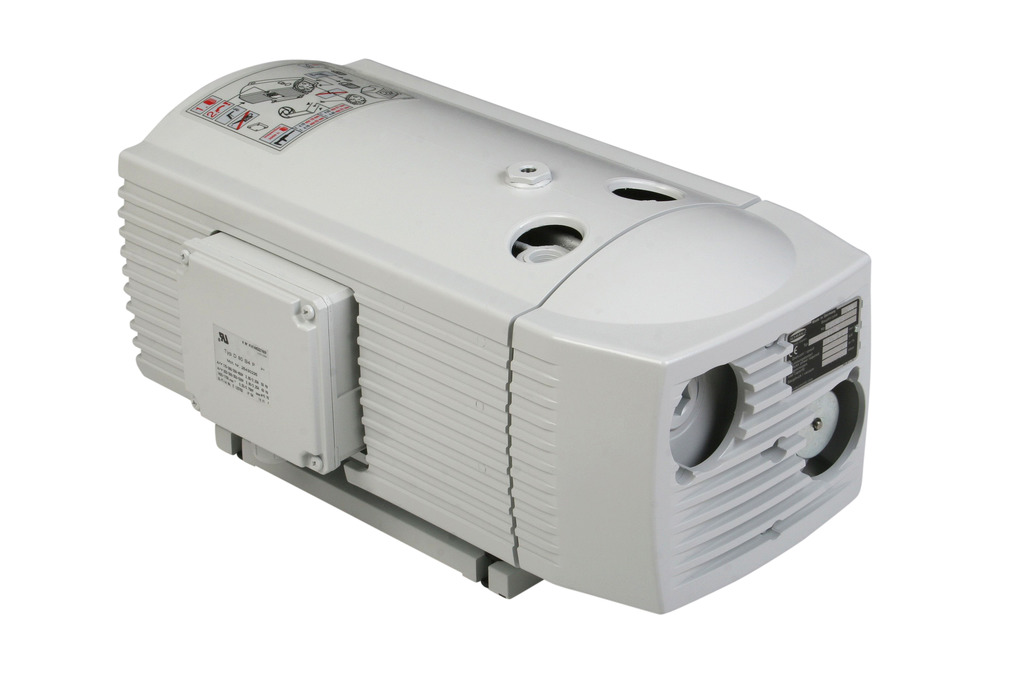

EVE-TR 40 AC3 IE3-TYP2

Part no.: 10.03.01.00350

Oil-free pump with constant suction rate, robust, requires little maintenance

EVE-TR 40 AC3 IE3-TYP2
Current typeThree phase A.C.
Voltage at 60HzYY230/Y460V ±10%
Suction rate (60 Hz)48 m³/h
Rated power 60 Hz1.3 kW
ConstructionIE3:US/CAN
PermissionUL/CSA
Weight40 kg
EVE-TR 40 AC3 IE3-TYP2
Attribute Value
B 270 mm
B2 50 mm
d 7 mm
G3 G3/4"-F
H 293 mm
L 561 mm
L2 131 mm
X1 220 mm
Y1 190 mm
Attribute Value
Suction rate (60 Hz) 48 m³/h
Voltage at 60Hz YY230/Y460V ±10%
Rated power 60 Hz 1.30 kW
Current type AC3
Current type Three phase A.C.
Construction IE3:US/CAN
Weight 40 kg
Protection type IP IP 55
Product family EVE-TR


Noise level according to DIN EN ISO 3744 (uncertainty factor KpA = 3 dB(A)), interval of 1 m, at medium load, both connection sides piped
Metric       Imperial
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Español
Operating instructions
Français
Operating instructions
Italiano
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
日本語
Operating instructions
中國
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
UKCA declaration of conformity
English
UKCA declaration of conformity
Polski
UKCA declaration of conformity
Türkçe
UKCA declaration of conformity
Pусский
UKCA declaration of conformity
한국어
UKCA declaration of conformity
Suomalainen
UKCA declaration of conformity
Nederlands
UKCA declaration of conformity
Česky
UKCA declaration of conformity
Hrvatski
UKCA declaration of conformity
Slovenščina
UKCA declaration of conformity
Srpski
UKCA declaration of conformity
Tiếng Việt
Spare parts list
English
Spare parts list
Deutsch
Spare parts list
Français
Spare parts list
Polski
Spare parts list
Türkçe
Spare parts list
Pусский
Spare parts list
한국어
Spare parts list
Suomalainen
Spare parts list
Nederlands
Spare parts list
Česky
Spare parts list
Hrvatski
Spare parts list
Slovenščina
Spare parts list
Srpski
Spare parts list
Tiếng Việt
Technical information
English
Technical information
Deutsch
Technical information
Français
Technical information
Polski
Technical information
Türkçe
Technical information
Pусский
Technical information
한국어
Technical information
Suomalainen
Technical information
Nederlands
Technical information
Česky
Technical information
Hrvatski
Technical information
Slovenščina
Technical information
Srpski
Technical information
Tiếng Việt
EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
日本語
EU declaration of conformity
中國
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
Pictogram legend
English
Pictogram legend
Deutsch
Pictogram legend
Español
Pictogram legend
Français
Pictogram legend
Italiano
Pictogram legend
Polski
Pictogram legend
Türkçe
Pictogram legend
Pусский
Pictogram legend
日本語
Pictogram legend
中國
Pictogram legend
한국어
Pictogram legend
Suomalainen
Pictogram legend
Nederlands
Pictogram legend
Česky
Pictogram legend
Hrvatski
Pictogram legend
Slovenščina
Pictogram legend
Srpski
Pictogram legend
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Operating instructions
English English
UKCA declaration of conformity
English English
Spare parts list
English English
Technical information
English English
EU declaration of conformity
English English
Pictogram legend
English English

Ordering information: EVE-TR 40 AC3 IE3-TYP2

The vacuum pump EVE-TR comes ready to connect.

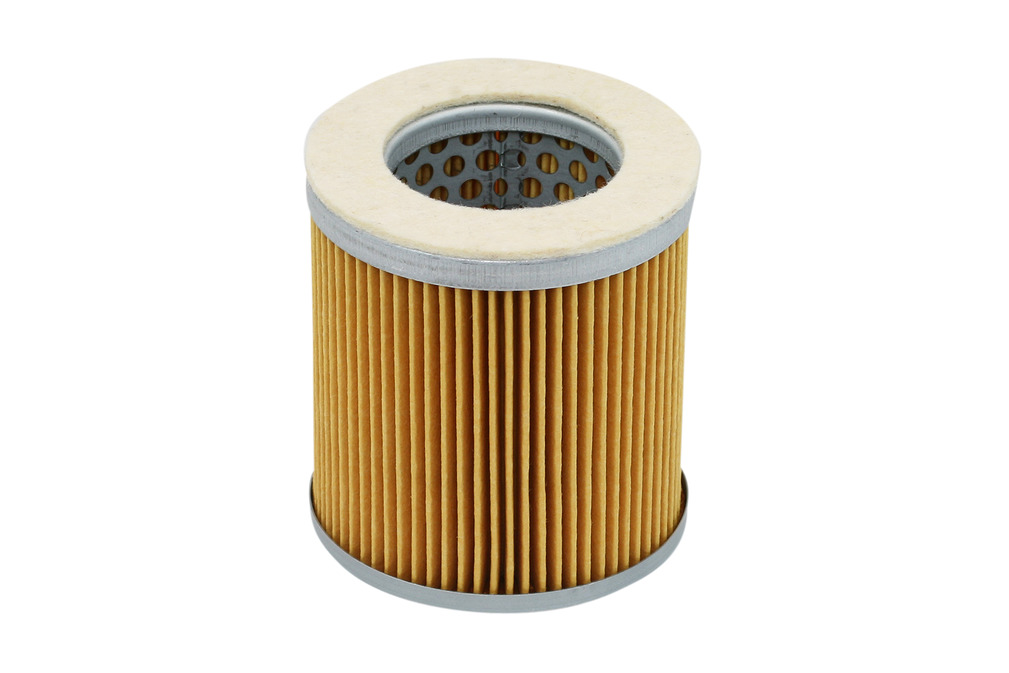

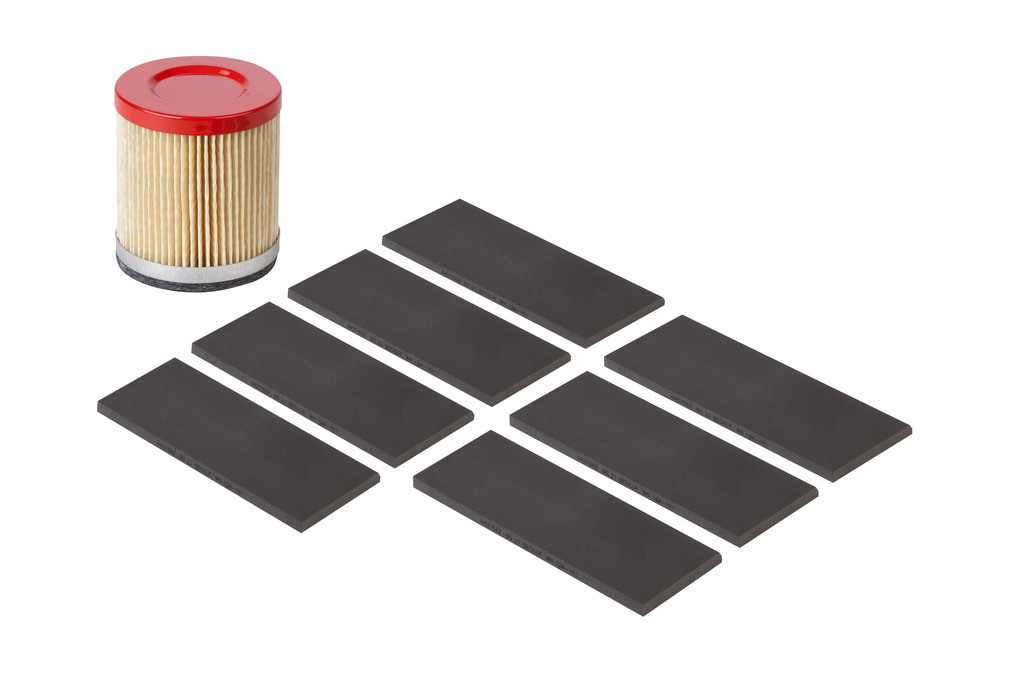

Available spare parts: Filter insert, wearing part set

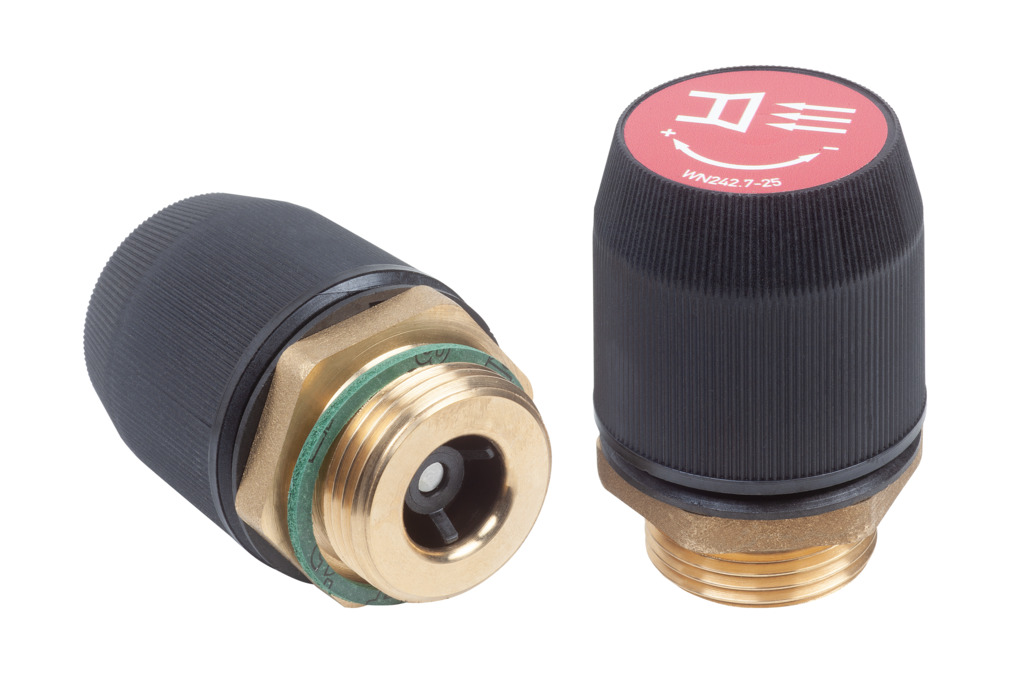

Available accessories: Vacuum limiter valve
