ECBPi 12 24V-DC M12-8

Part no.: 10.03.01.00314

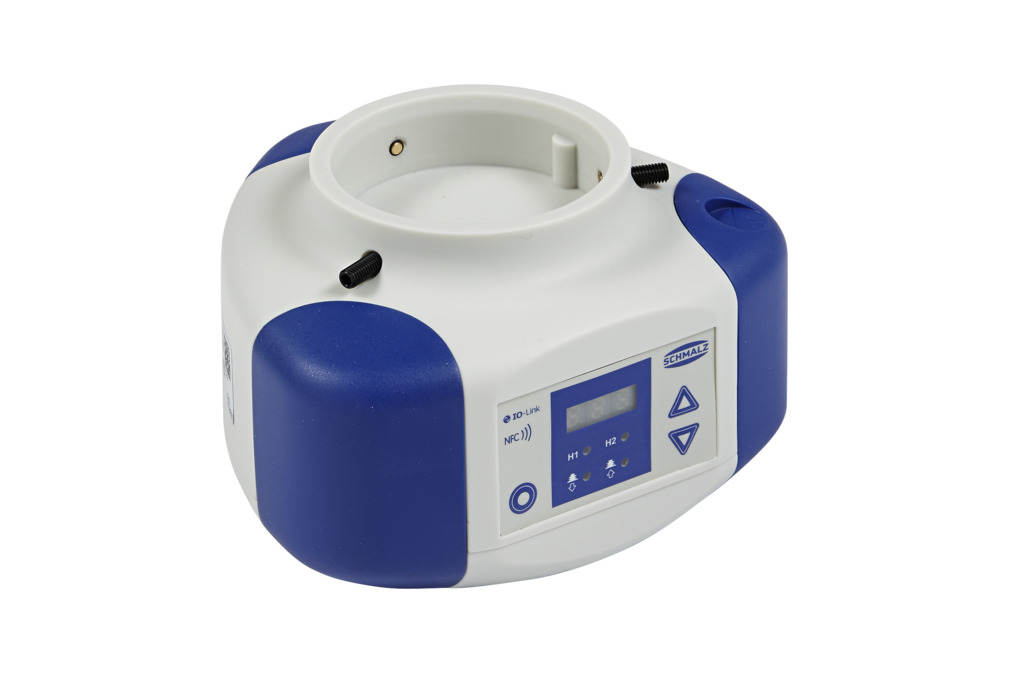

CobotPump for electrical vacuum generation for collaborative robots

Efficient
Suction rate (max.)12 l/min
Rated power13 W
Voltage DC24 V - DC
Rated current0.6 A

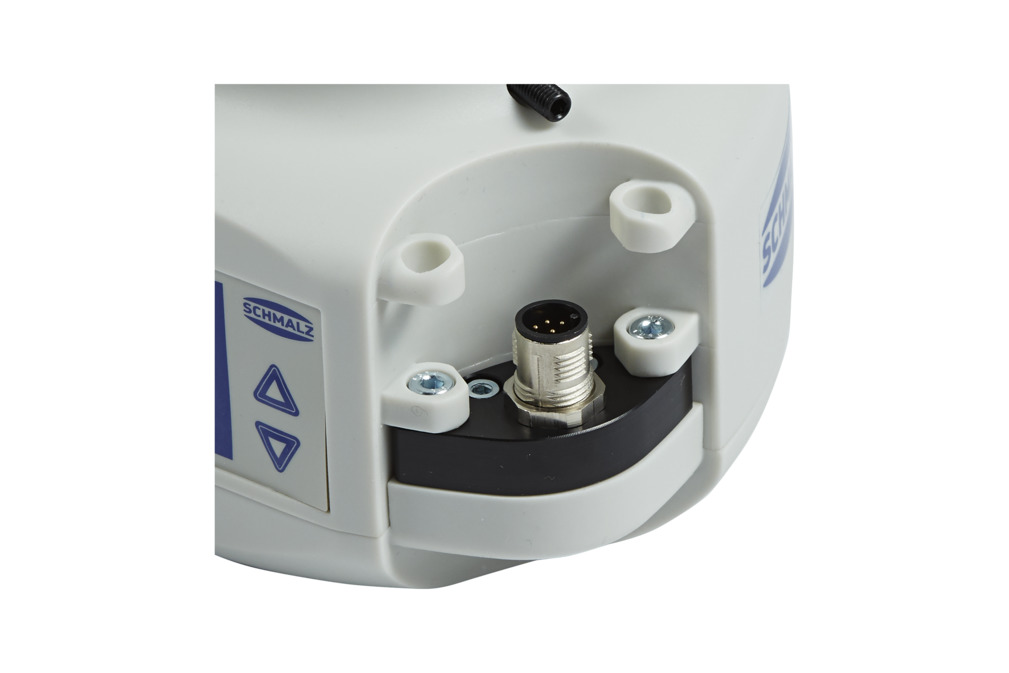

Electrical connectionMale connect M12, 8 pol
Max. vacuum750 mbar
Operating temperature5 ... 45 °C
ECBPi 12 24V-DC M12-8
Attribute Value

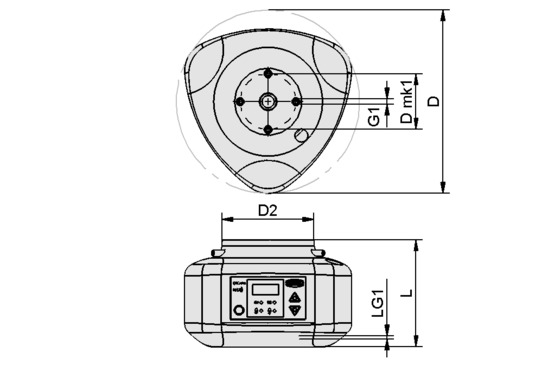

D 151.50 mm
D mk1 46 mm
D2 76 mm
G1 M4-F
LG1 6 mm
L 88.60 mm
Attribute Value
Suction rate (max.) 12 l/min
Rated power 13 W
Voltage DC 24 V - DC
Rated current 0.60 A
Operating temperature 5 ... 45 °C
Weight 775 g
Product family ECBPI
The matching documentation for this product is available in this section.

Documents

Language

Brief operating instructions
English
Brief operating instructions
Deutsch
Brief operating instructions
Español
Brief operating instructions
Français
Brief operating instructions
Italiano
Brief operating instructions
Polski
Brief operating instructions
Türkçe
Brief operating instructions
Pусский
Brief operating instructions
日本語
Brief operating instructions
한국어
Brief operating instructions
Suomalainen
Brief operating instructions
Nederlands
Brief operating instructions
Česky
Brief operating instructions
Hrvatski
Brief operating instructions
Slovenščina
Brief operating instructions
Srpski
Brief operating instructions
Tiếng Việt
EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Español
Operating instructions
Français
Operating instructions
Italiano
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
日本語
Operating instructions
中國
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
UKCA declaration of conformity
English
UKCA declaration of conformity
Polski
UKCA declaration of conformity
Türkçe
UKCA declaration of conformity
Pусский
UKCA declaration of conformity
한국어
UKCA declaration of conformity
Suomalainen
UKCA declaration of conformity
Nederlands
UKCA declaration of conformity
Česky
UKCA declaration of conformity
Hrvatski
UKCA declaration of conformity
Slovenščina
UKCA declaration of conformity
Srpski
UKCA declaration of conformity
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Brief operating instructions
English English
EU declaration of conformity
English English
Operating instructions
English English
UKCA declaration of conformity
English English
The matching software for this product is available in this section.

Software

Language

Software function module
Global
Device description file
Global

Accessories

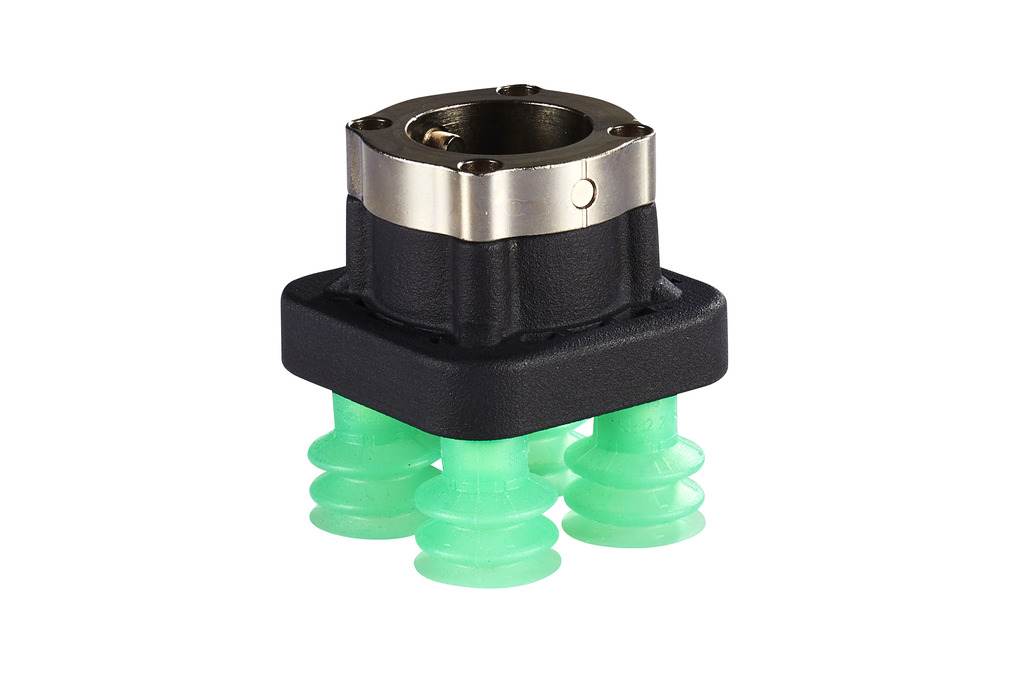

RFBP 50 50 BA SPB2
RFBP 50 50 BA SPB2
10.01.45.00096
Length L50 mm
Width B50 mm
ConnectionBayonet connection
Suct. cupsBellows suction cups SPB2

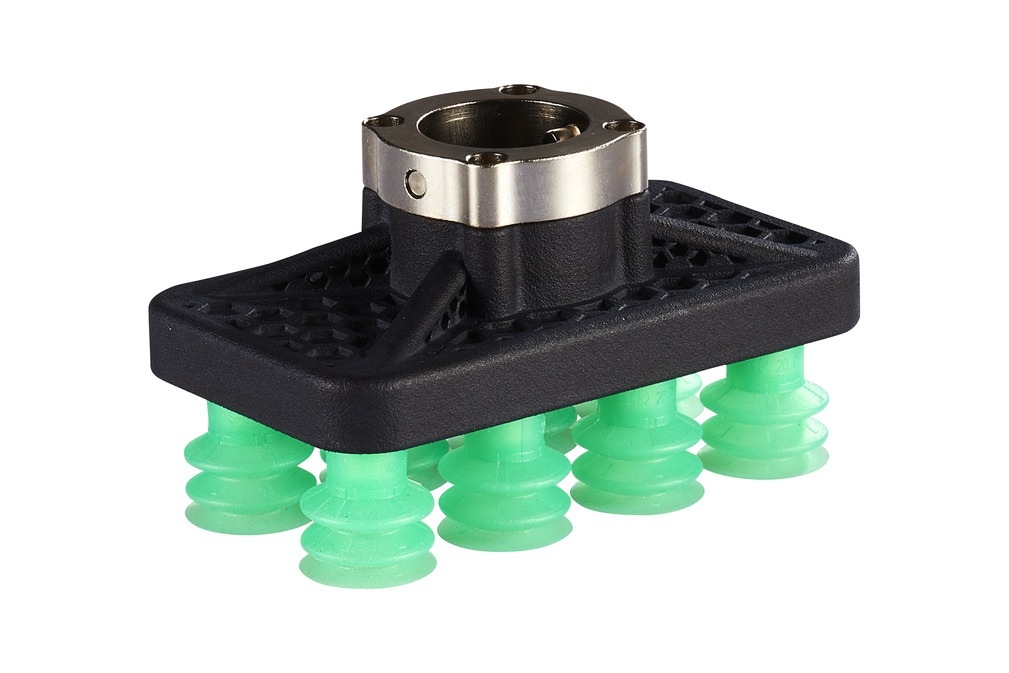

RFBP 100 58 BA SPB2
RFBP 100 58 BA SPB2
10.01.45.00091
Length L100 mm
Width B58 mm
ConnectionBayonet connection
Suct. cupsBellows suction cups SPB2

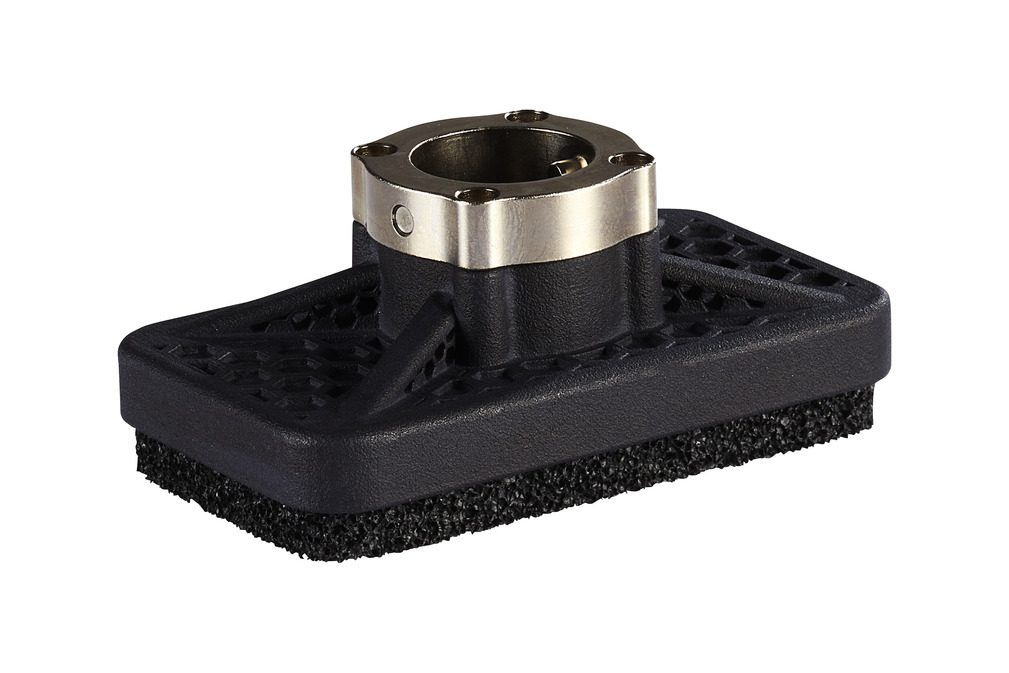

RFBP 100 58 BA O10
RFBP 100 58 BA O10
10.01.45.00092
Length L100 mm
Width B58 mm
ConnectionBayonet connection
Material typeFoam O, Height 10 mm

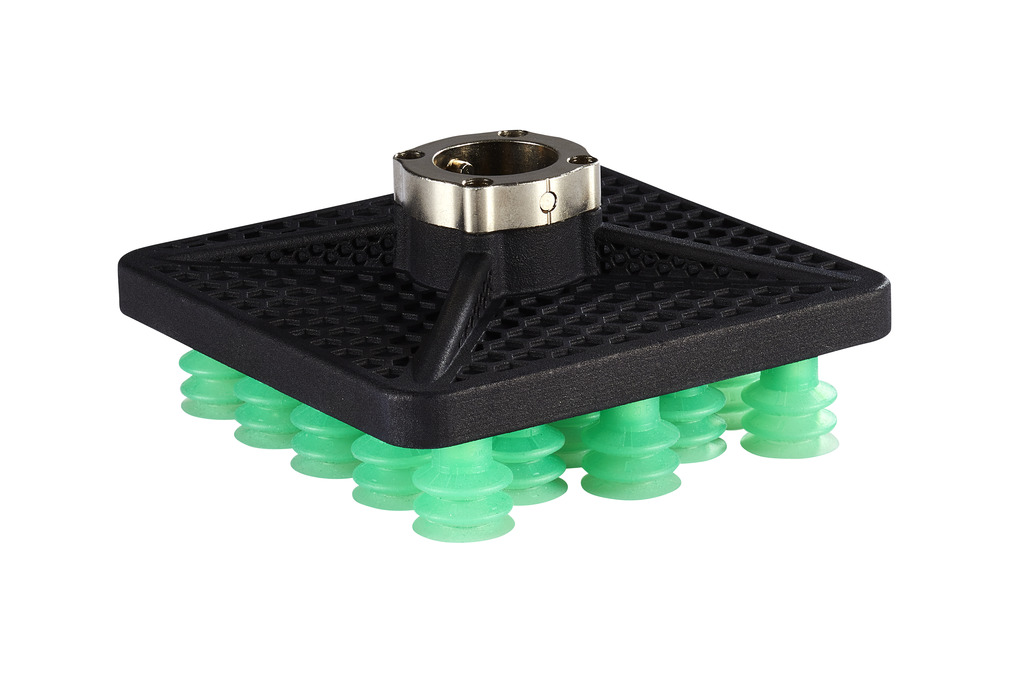

RFBP 120 120 BA SPB2
RFBP 120 120 BA SPB2
10.01.45.00085
Length L120 mm
Width B120 mm
ConnectionBayonet connection
Suct. cupsBellows suction cups SPB2

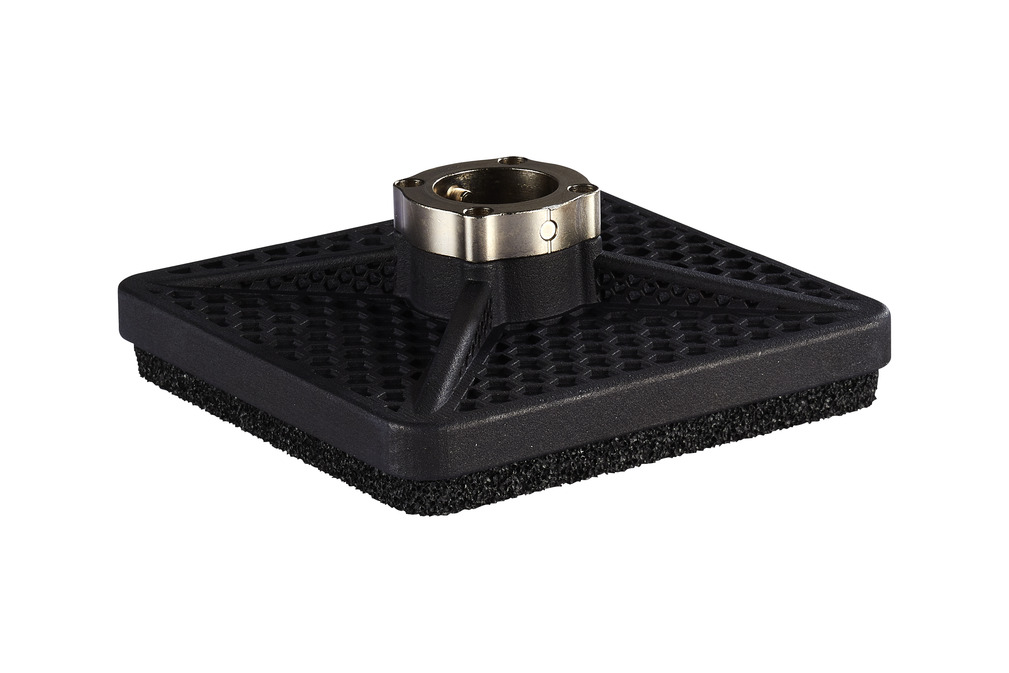

RFBP 120 120 BA O10
RFBP 120 120 BA O10
10.01.45.00086
Length L120 mm
Width B120 mm
ConnectionBayonet connection
Material typeFoam O, Height 10 mm

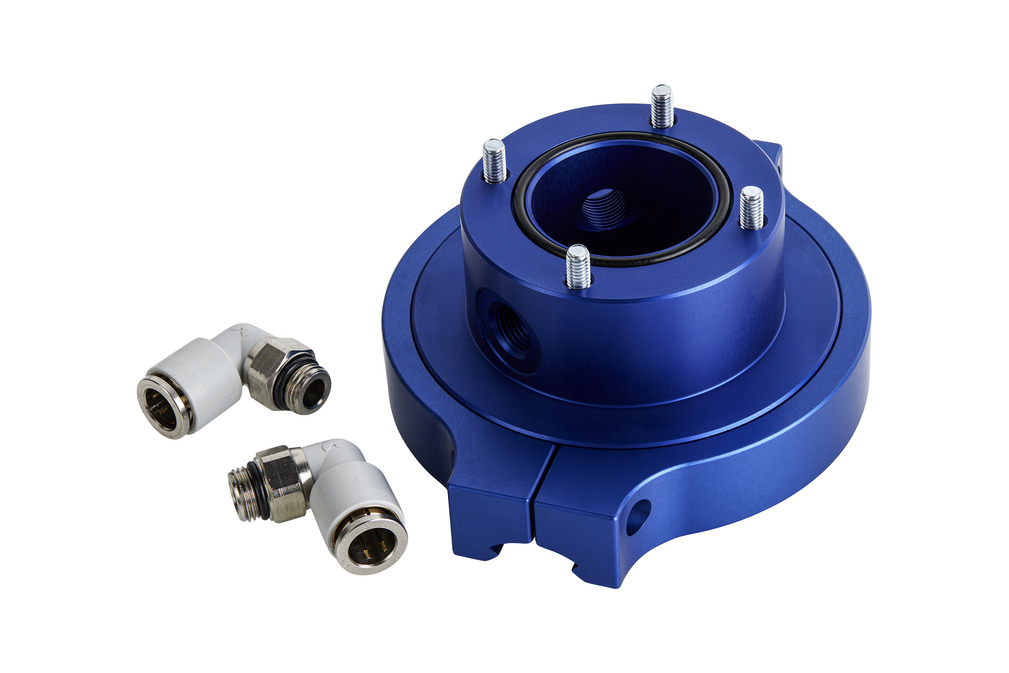

SET PXT 46 1LT ECBPi
SET PXT 46 1LT ECBPi
10.01.49.00085
Construction useModular gripper system
Pitch diameter D mk46 mm
Number of main beams1
UseECBPi
Weight386.3 g

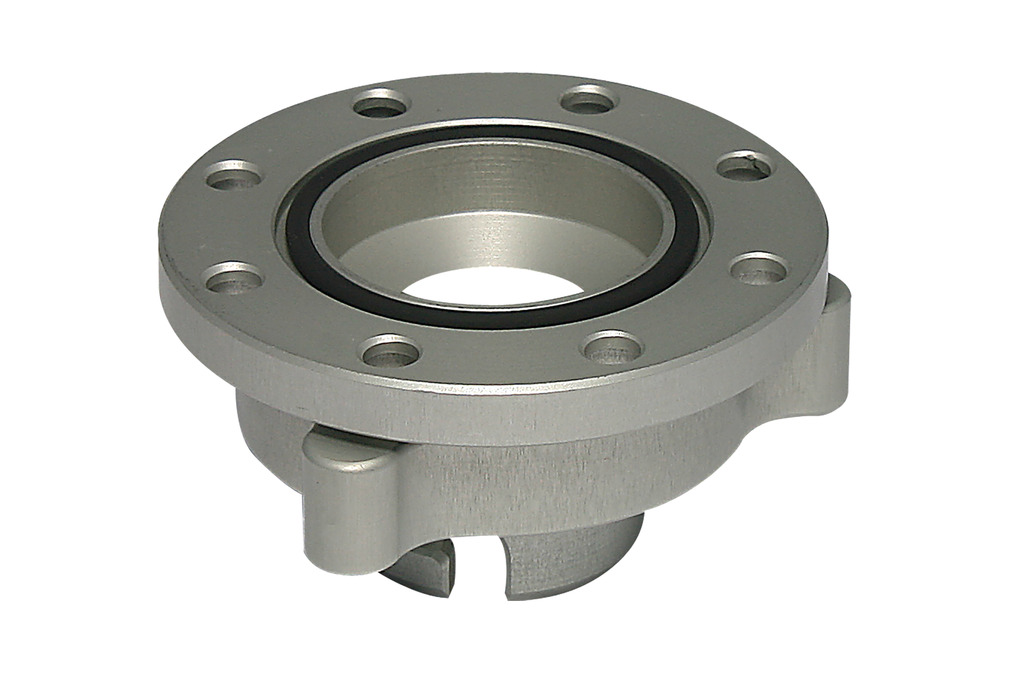

VEE-QCM 32
VEE-QCM 32
10.01.36.00121
Length L132 mm
Pitch diameter D mk46 mm
Number of holes8
Flow rate max.60 m³/h
VEE-FE 25.4x131.5
VEE-FE 25.4x131.5
10.01.36.00109
External diameter D25.4 mm
Length L1131.5 mm
Extension to100 mm
VEE-FE 25.4x181.5
VEE-FE 25.4x181.5
10.01.36.00128
External diameter D25.4 mm
Length L1181.5 mm
Extension to150 mm
VEE-FE 25.4x81.5
VEE-FE 25.4x81.5
10.01.36.00130
External diameter D25.4 mm
Length L181.5 mm
Extension to50 mm

Product recommendations

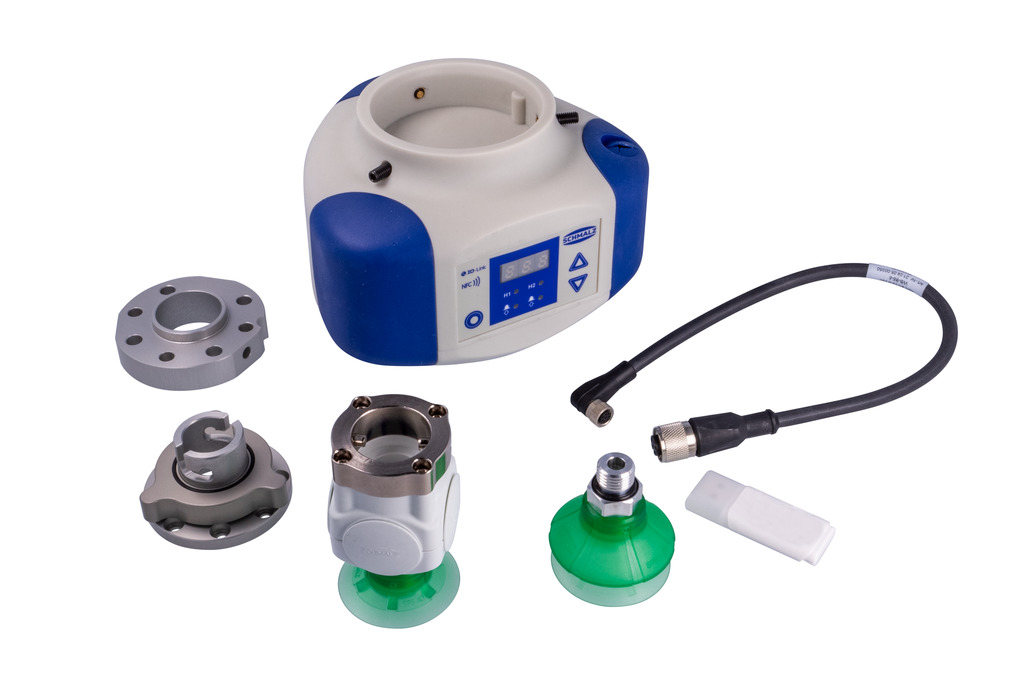

ROB-SET ECBPi UR
Efficient
ROB-SET ECBPi UR
schmalz-connect
10.03.01.00504
Construction useCobotPump
forUniversal Robots
Type3,5,10

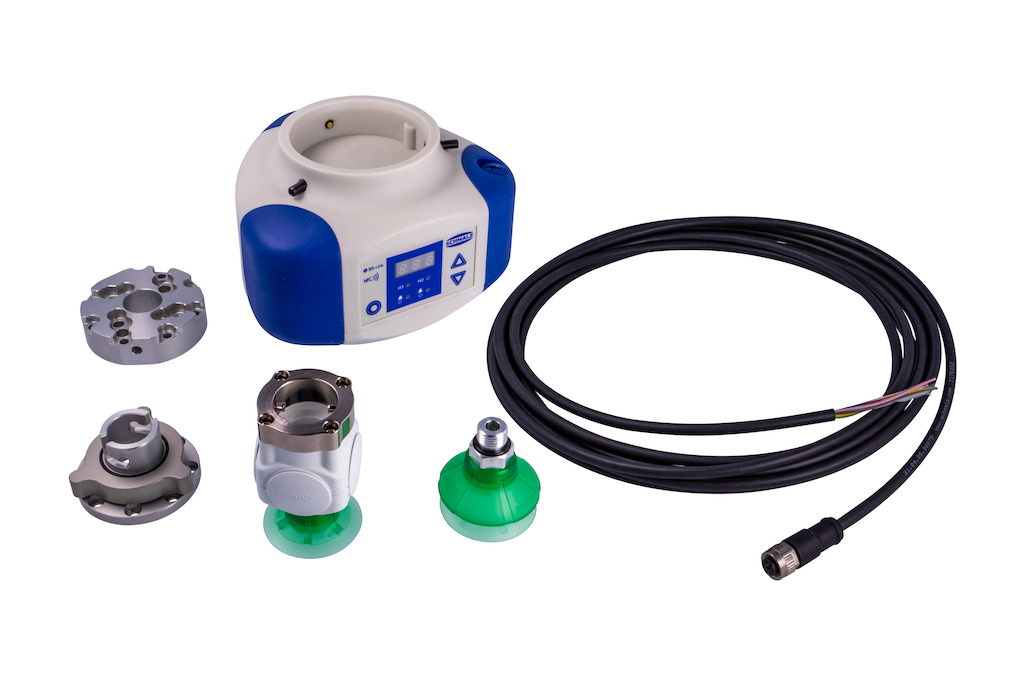

ROB-SET ECBPi FANUC
Efficient
ROB-SET ECBPi FANUC
schmalz-connect
10.03.01.00505
Construction useCobotPump
forFANUC
TypeCR-4iA, CR-7iA

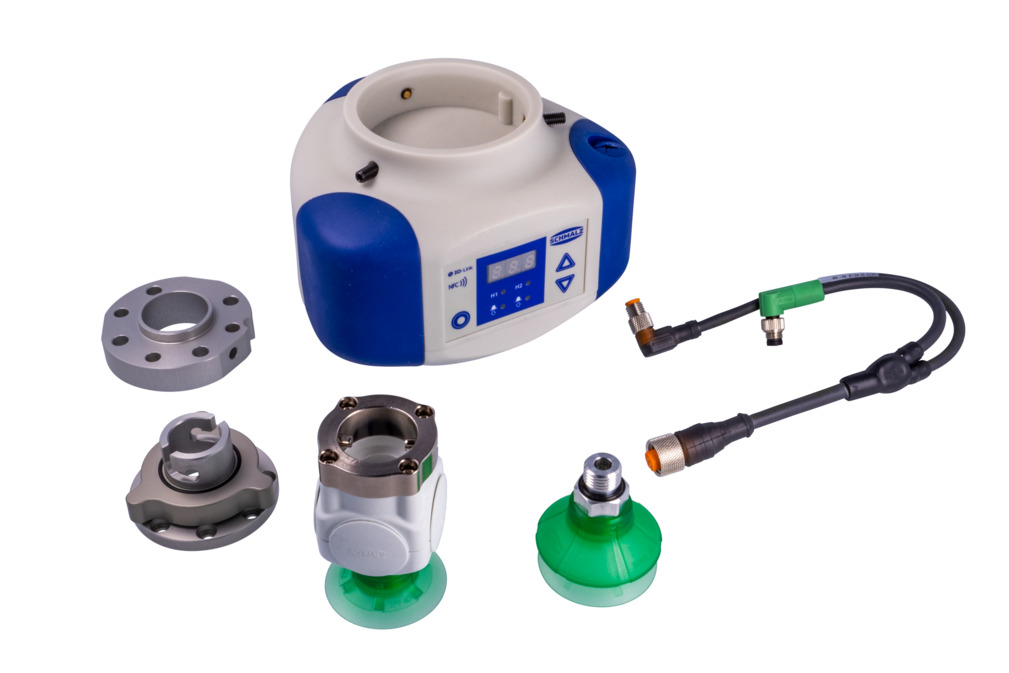

ROB-SET ECBPi KUKA
Efficient
ROB-SET ECBPi KUKA
schmalz-connect
10.03.01.00506
Construction useCobotPump
forKUKA
Typeiiwa 7,14

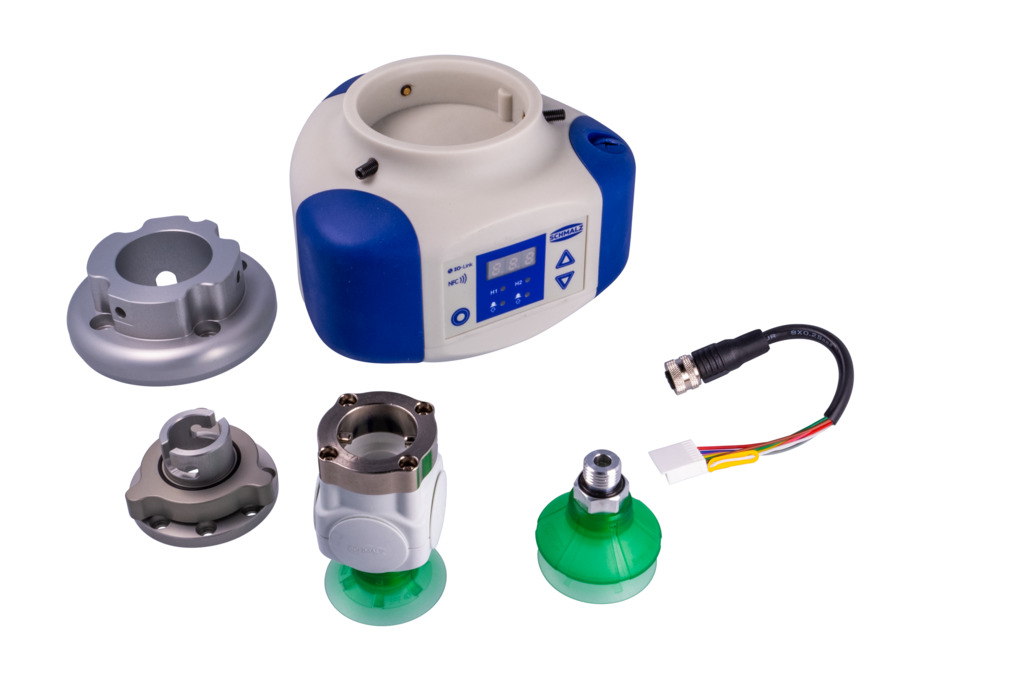

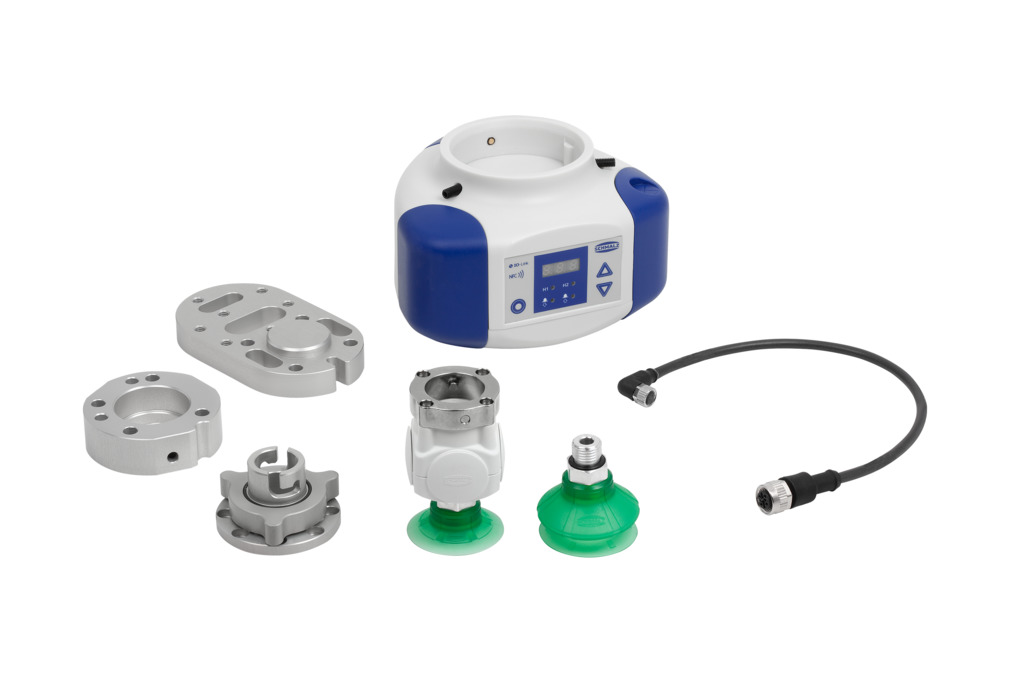

ROB-SET ECBPi YASKAWA
