VZ-TR 10 AC3 15 GMS

Part no.: 10.03.04.00173

Vacuum centre with oil-free pump and vacuum reservoir

VZ-TR 10 AC3 15 GMS
Suction rate10 m³/h
Voltage230/400V ±10%
Reservoirs volume15 l
withregulated engine circuit
VZ-TR 10 AC3 15 GMS

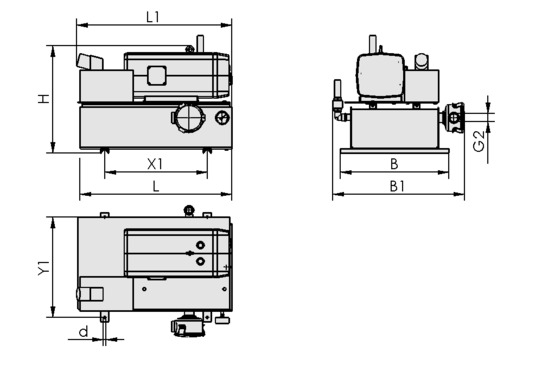

Attribute Value
B 400 mm
B1 490 mm
d 11 mm
G2 G3/4"-F
H 440 mm
L 430 mm
L1 430 mm
X1 280 mm
Y1 360 mm
Attribute Value
Max. vacuum -850 mbar
Voltage 230/400V ±10%
Motor power 0.37 kW
Reservoirs volume 15 l
Suction rate 10 m³/h
Protection type IP IP 44
Weight 38.50 kg
Max. vacuum -25.10 inHg
Product family VZ
The matching documentation for this product is available in this section.

Documents

Language

EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Español
Operating instructions
Français
Operating instructions
Italiano
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
UKCA declaration of conformity
English
UKCA declaration of conformity
Polski
UKCA declaration of conformity
Türkçe
UKCA declaration of conformity
Pусский
UKCA declaration of conformity
한국어
UKCA declaration of conformity
Suomalainen
UKCA declaration of conformity
Nederlands
UKCA declaration of conformity
Česky
UKCA declaration of conformity
Hrvatski
UKCA declaration of conformity
Slovenščina
UKCA declaration of conformity
Srpski
UKCA declaration of conformity
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

EU declaration of conformity
English English
Operating instructions
English English
UKCA declaration of conformity
English English

Ordering information: VZ-TR 10 AC3 15 GMS

Vacuum centre VZ is delivered as a ready to connect product.



Available spare parts: replacement cartridge for air cleaner, replacement cartridge for oil filter

Available accessories: filter cartridge for vacuum reservoir
