VZ-OG 165 AC3 200 GMS

Part no.: 10.03.04.00165

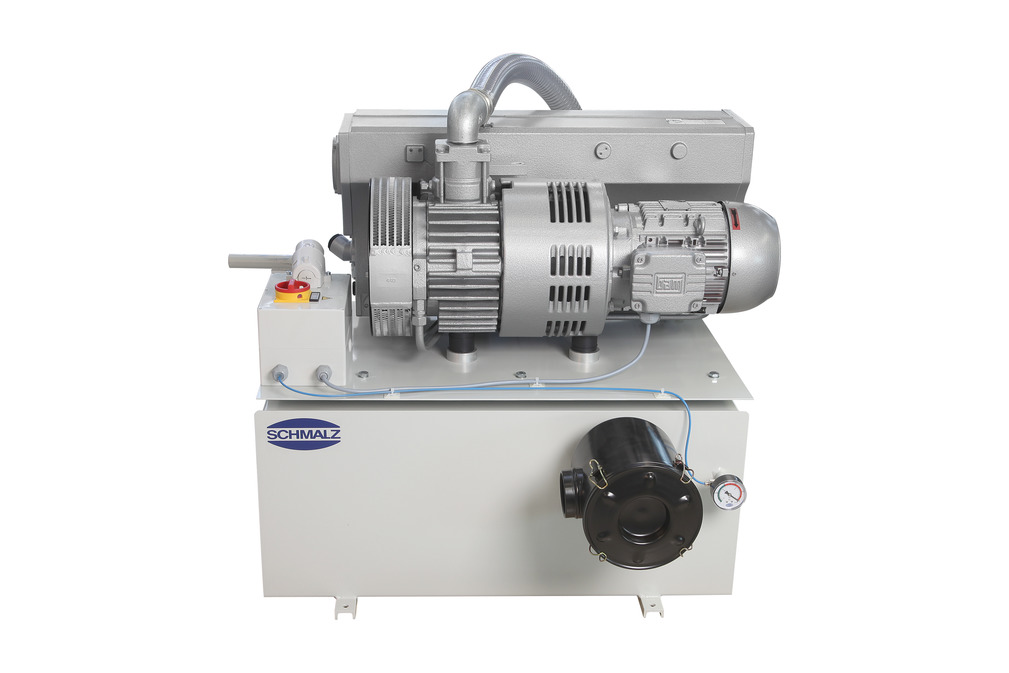

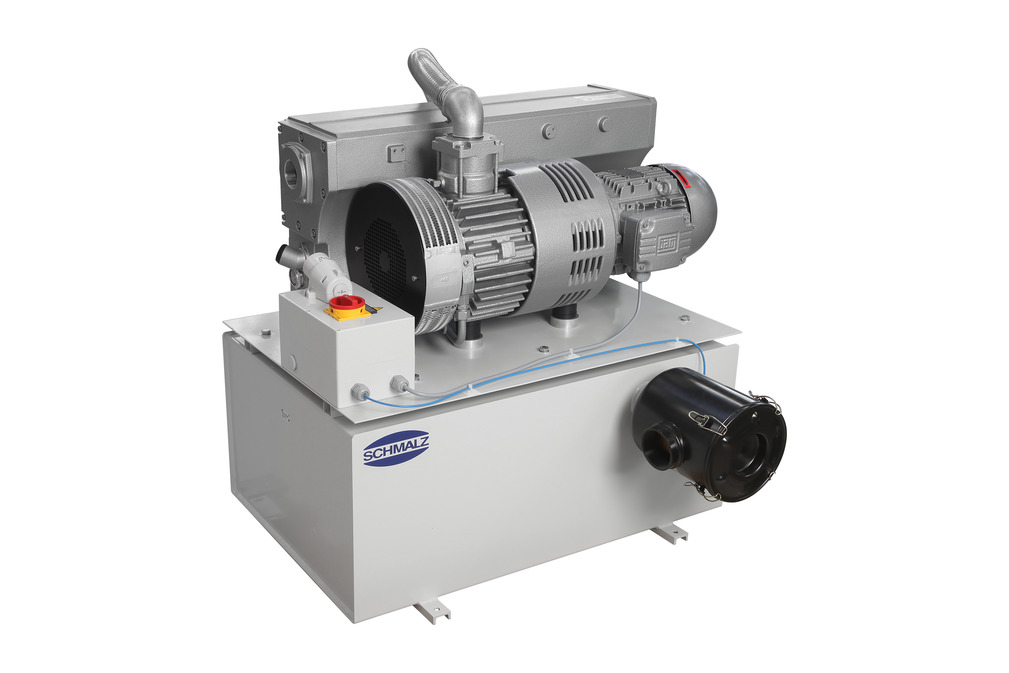

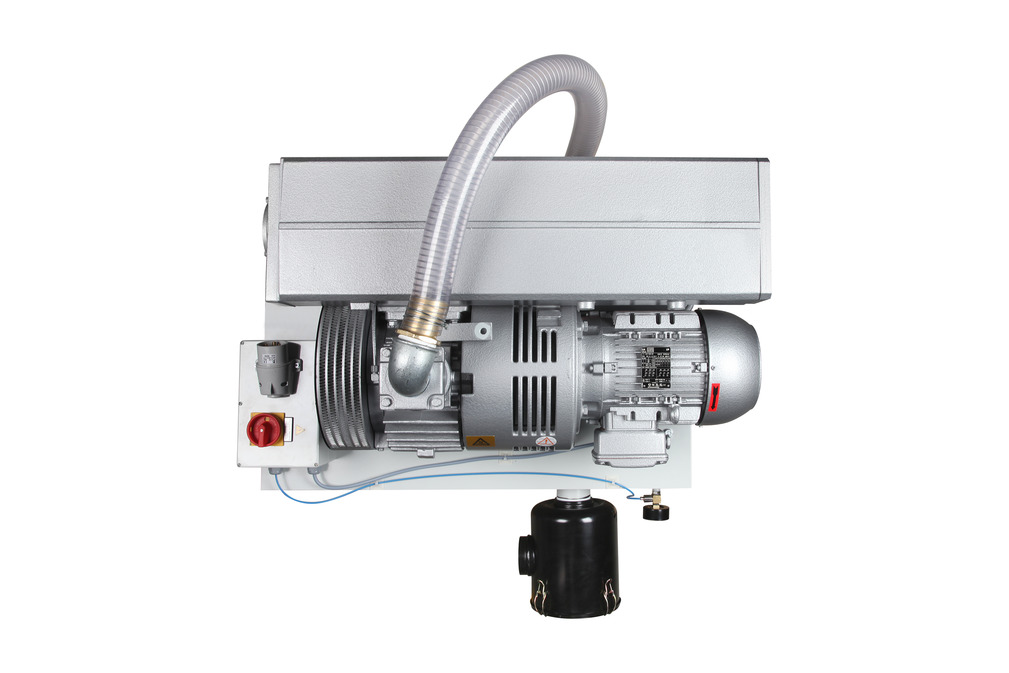

Vacuum centre with oil-lubricated pump and vacuum reservoir

Suction rate165 m³/h
Voltage230/400V ±10%
Reservoirs volume200 l
withregulated engine circuit
VZ-OG 165 AC3 200 GMS

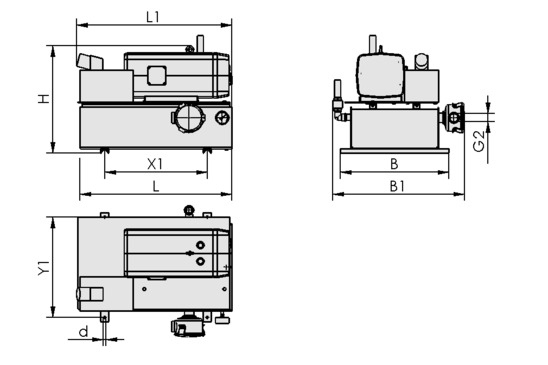

Attribute Value
B 710 mm
B1 1040 mm
d 11 mm
G2 G2-1/2"-F
H 950 mm
L 910 mm
L1 1040 mm
X1 592 mm
Y1 670 mm
Attribute Value
Max. vacuum -750 mbar
Voltage 230/400V ±10%
Motor power 4 kW
Reservoirs volume 200 l
Suction rate 165 m³/h
Protection type IP IP 44
Weight 273 kg
Product family VZ
The matching documentation for this product is available in this section.

Documents

Language

EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Español
Operating instructions
Français
Operating instructions
Italiano
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
UKCA declaration of conformity
English
UKCA declaration of conformity
Polski
UKCA declaration of conformity
Türkçe
UKCA declaration of conformity
Pусский
UKCA declaration of conformity
한국어
UKCA declaration of conformity
Suomalainen
UKCA declaration of conformity
Nederlands
UKCA declaration of conformity
Česky
UKCA declaration of conformity
Hrvatski
UKCA declaration of conformity
Slovenščina
UKCA declaration of conformity
Srpski
UKCA declaration of conformity
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

EU declaration of conformity
English English
Operating instructions
English English
UKCA declaration of conformity
English English

Ordering information: VZ-OG 165 AC3 200 GMS

Vacuum centre VZ is delivered as a ready to connect product.



Available spare parts: replacement cartridge for air cleaner, replacement cartridge for oil filter

Available accessories: filter cartridge for vacuum reservoir
