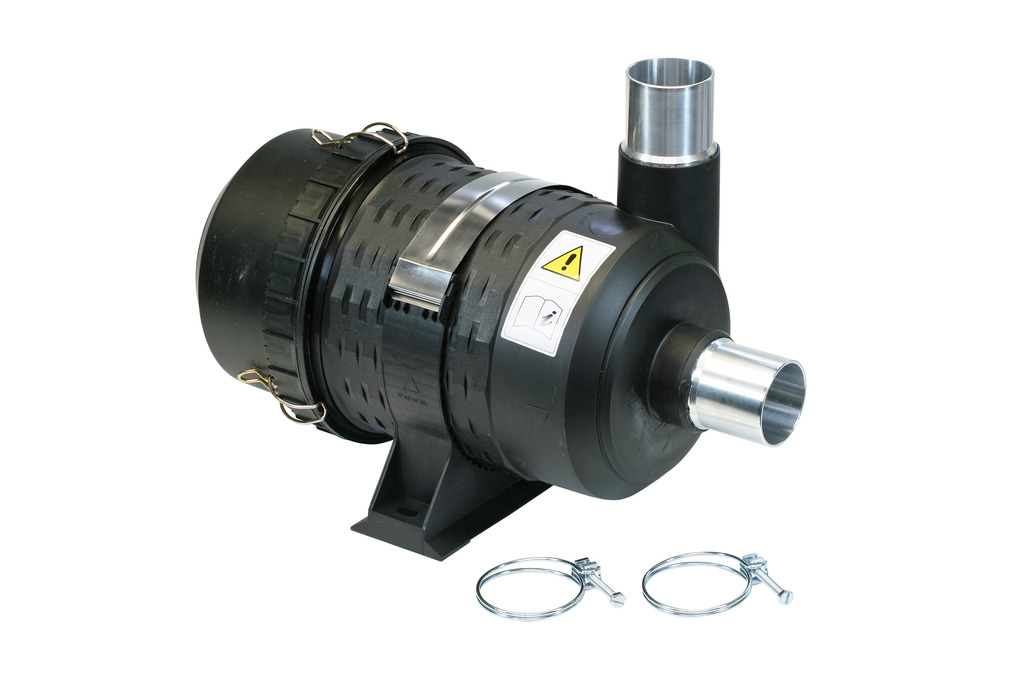

STF 75 P 8.0 SSD

Part no.: 10.07.01.00263

Dust filter

STF 75 P 8.0 SSD
ConnectionØ75mm
ShapePiclon housing
Nominal flow rate480 m³/h
Filter pore size3 µm
Additional functionHose clamps SSD
STF 75 P 8.0 SSD

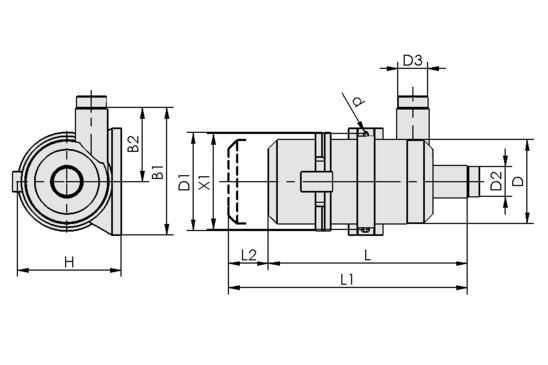

Attribute Value
B1 300 mm
B2 168 mm
d 8.50 mm
D 228 mm
D1 240 mm
D2 75 mm
D3 75 mm
H 250.60 mm
L 439 mm
L1 579 mm
L2 359 mm
X1 240 mm
Attribute Value
Connection Ø75mm
Nominal flow rate 480 m³/h
Nominal flow rate 8000 l/min
Max. vacuum -500 mbar
Filter pore size 3 µm
Weight 2.60 kg
Product family VF
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Español
Operating instructions
Français
Operating instructions
Italiano
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
中國
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Operating instructions
English English

Ordering information: STF 75 P 8.0 SSD

Vacuum filter VF / STF / STF-D is delivered as a ready to connect product.

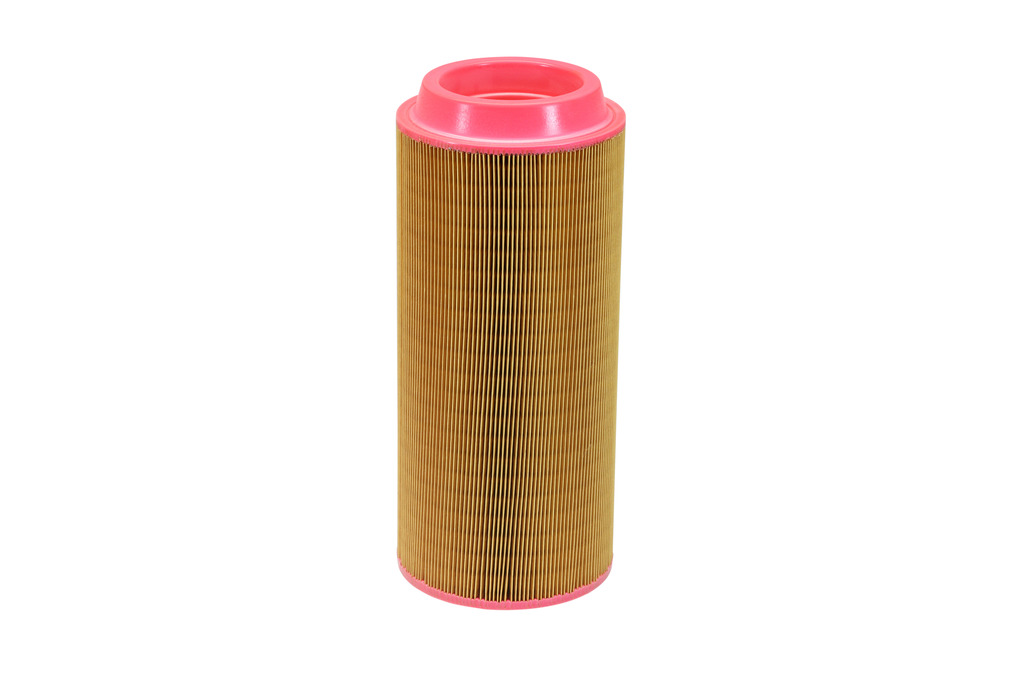

Available spare parts: replacement filter cartridge
Available accessories: mounting bracket
