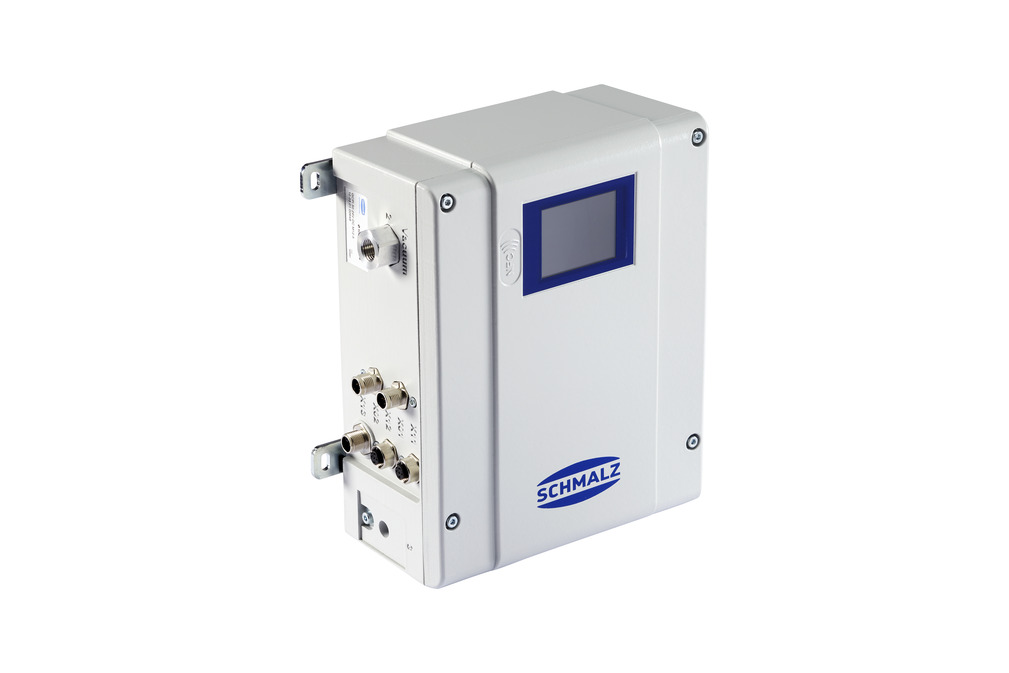

GCPi 50 5xM12-5

Part no.: 10.03.01.00648

Electrical vacuum generation with integrated control electronics for vacuum automation

GCPi 50 5xM12-5
Size50
Voltage24V - DC
Electrical connection5xConnect M12, 5x5 pol
Suction rate (max.)46 l/min
Max. vacuum800 mbar
Sound pressure level (max.)67 dB(A)
Protection type IPIP 54
Weight3,220 g
Operating temperature0 ... 45 °C

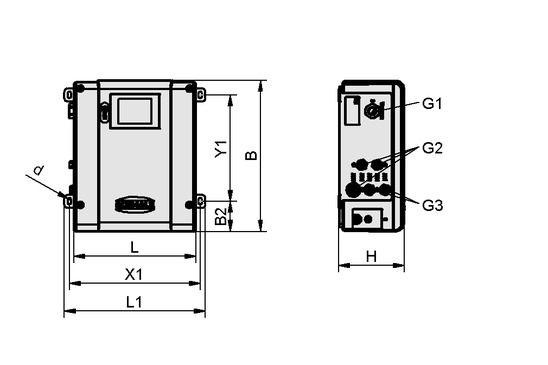

GCPi 50 5xM12-5
Attribute Value
B 236 mm
B2 47 mm
d 6.60 mm
G1 G1/4"-F
G2 M12x1-M
G3 M12x1-F
H 102 mm
L 190 mm
L1 220 mm
X1 204 mm
Y1 166 mm
Attribute Value
Suction rate (max.) 46 l/min
Voltage DC 24 V - DC
Electrical connection 5xConnect M12, 5x5 pol
Operating temperature 0 ... 45 °C
Weight 3220 g
The matching documentation for this product is available in this section.

Documents

Language

EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
日本語
EU declaration of conformity
中國
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Español
Operating instructions
Français
Operating instructions
Italiano
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
UKCA declaration of conformity
English
UKCA declaration of conformity
Polski
UKCA declaration of conformity
Türkçe
UKCA declaration of conformity
Pусский
UKCA declaration of conformity
한국어
UKCA declaration of conformity
Suomalainen
UKCA declaration of conformity
Nederlands
UKCA declaration of conformity
Česky
UKCA declaration of conformity
Hrvatski
UKCA declaration of conformity
Slovenščina
UKCA declaration of conformity
Srpski
UKCA declaration of conformity
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

EU declaration of conformity
English English
Operating instructions
English English
UKCA declaration of conformity
English English
The matching software for this product is available in this section.

Software

Language

Software function module
Global
Device description file
Global

Accessories

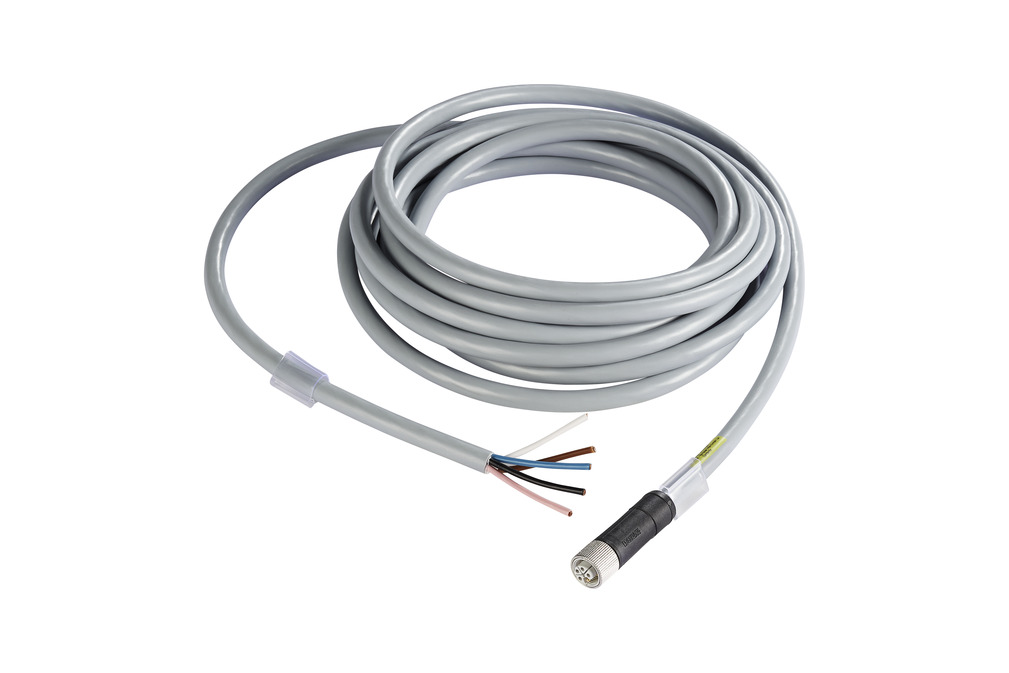

P-LEIT-LK B-M12-5 5m OK
P-LEIT-LK B-M12-5 5m OK
21.04.05.00352
Rated current16 A
Voltage63V-DC
Protection type IPIP 68
Electrical connectionFem connect M12, 5 pol
Cable length Lk5 m
Number of pole5
Number of wires5
Material hosePUR cable
ASK B-M12-5 5000 K-5P
ASK B-M12-5 5000 K-5P
21.04.05.00080
Electrical connectionFem connect M12, 5 pol
Cable length5,000 mm
Material hosePUR cable

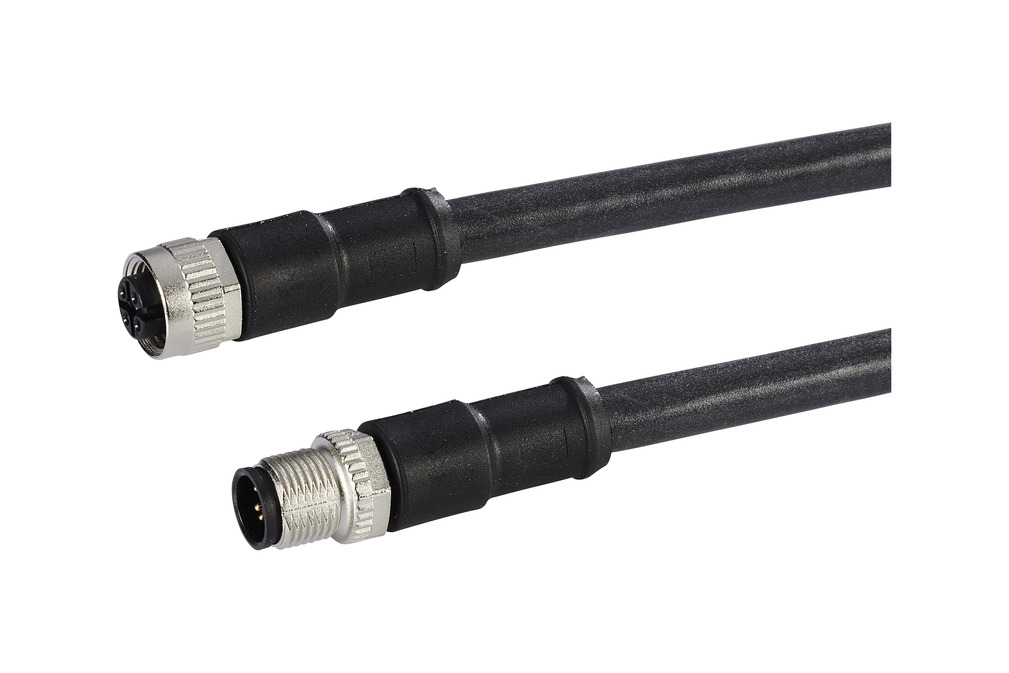

AK-SB-M12-G 5m A 5P
AK-SB-M12-G 5m A 5P
21.04.05.00931
Rated current4 A
Electrical connectionFem connect M12, 5 pol
Cable length Lk5 m
Number of pole5
Number of wires5
Material hosePU

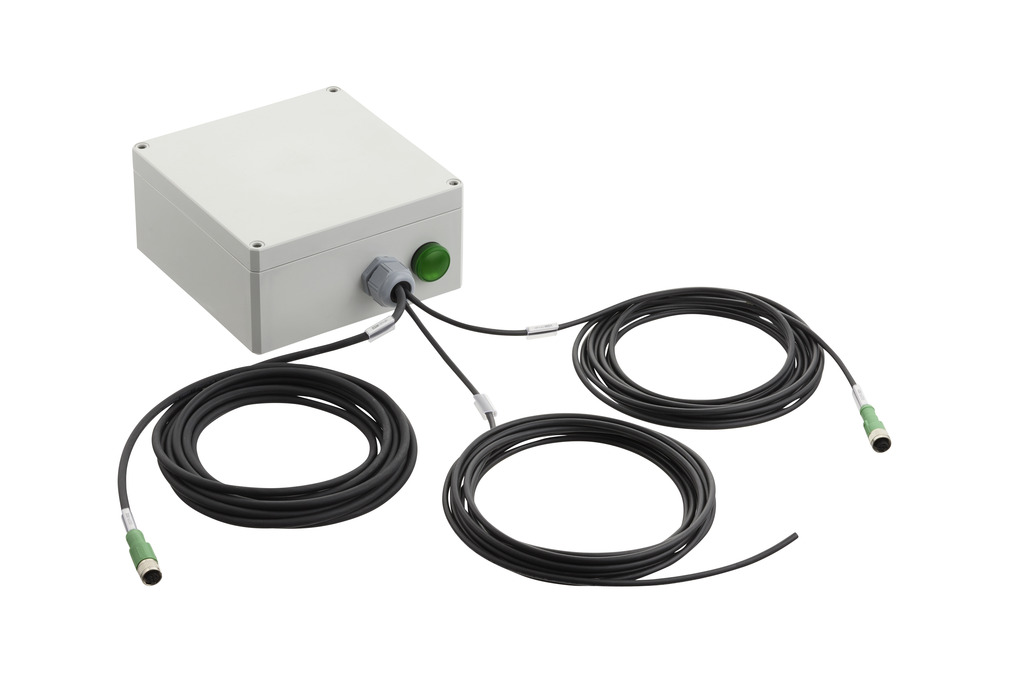

NETZ 96VA 24V-DC 100-240-AC
NETZ 96VA 24V-DC 100-240-AC
21.07.01.00205
Rated power96 W
Voltage24V - DC
Primary voltage100 - 240 V AC
Secondary voltage24 V - DC
Length L182 mm
Width B180 mm
Height H90 mm
VFT G1/4-IG 80
VFT G1/4-IG 80
10.07.01.00119
ConnectionG1/4"-F
Shapeshort filter insert
Nominal flow rate110 l/min
Nominal flow rate6.6 m³/h
Filter pore size80 µm

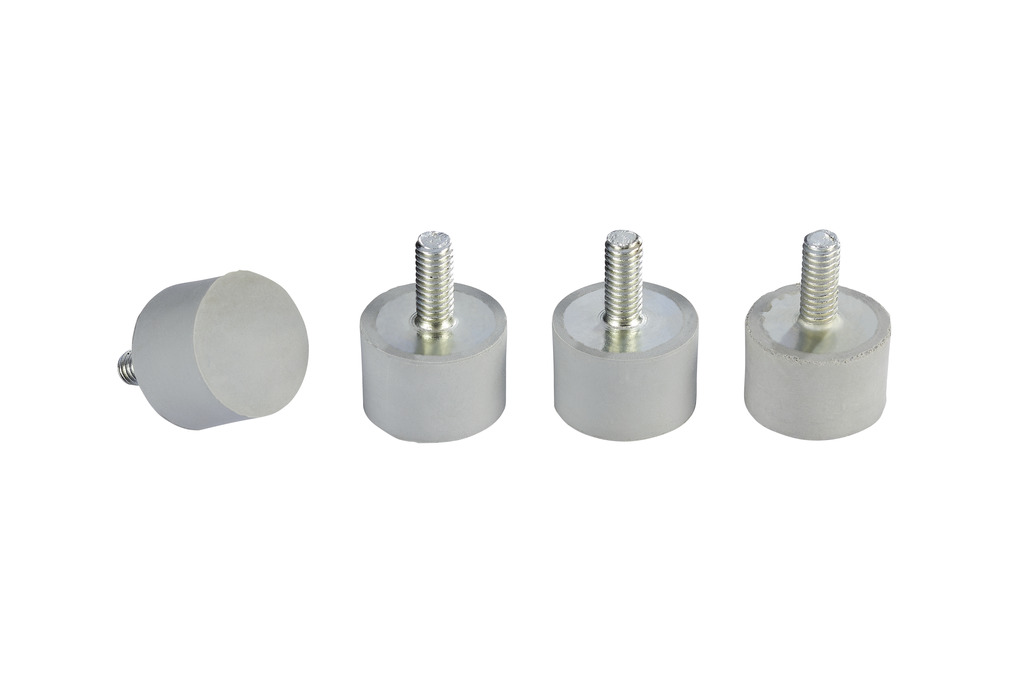

ZUB GCPi GUMMI-PUFF
ZUB GCPi GUMMI-PUFF
10.03.01.00809
containsRubber buffer
Construction useCompact Pump GCPi

Product recommendations

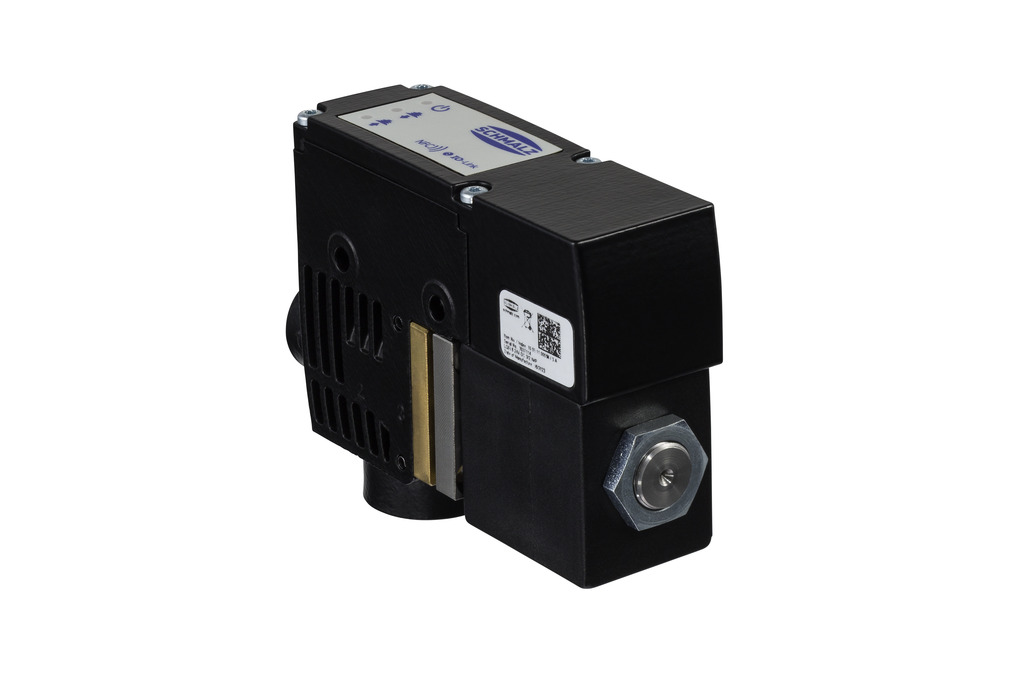

Compact Valves LQEc / LQEi
Compact Valves LQEc / LQEi
  • Nominal size: 8 mm
  • Nominal flow: 240 l/min
  • Voltage: 24 V
  • Main body made of plastic
×
Compact Valves LQEc / LQEi
Direct operated, electric compact valve for decentralized control and regulation of vacuum systems.

Ordering information: GCPi 50 5xM12-5

The Electric Compact Pump GCPi is delivered as a ready-to-connect product.

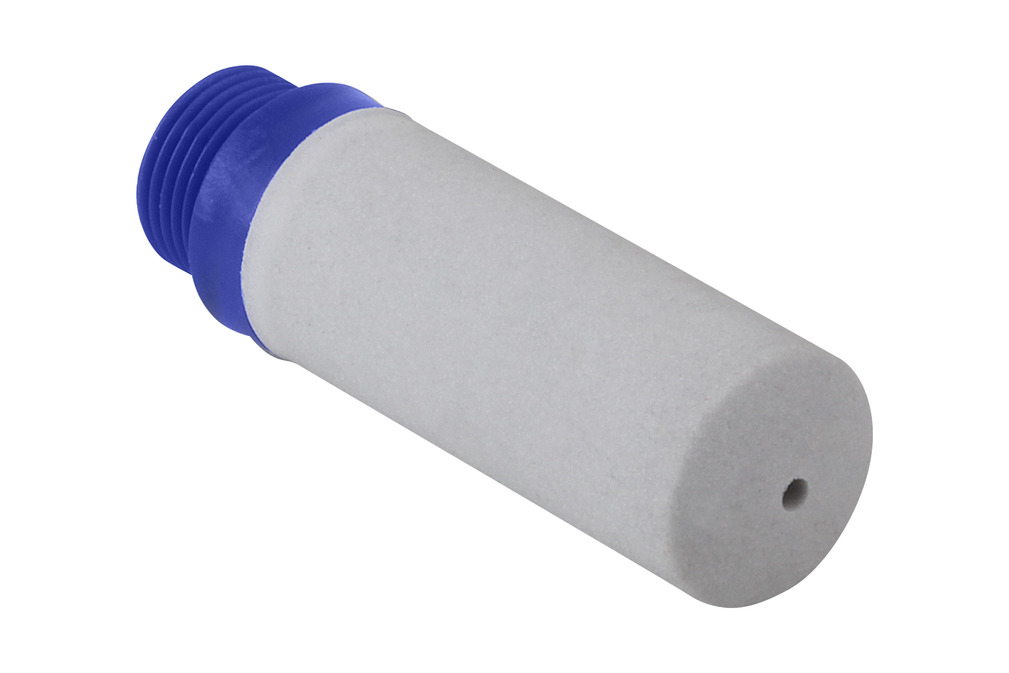

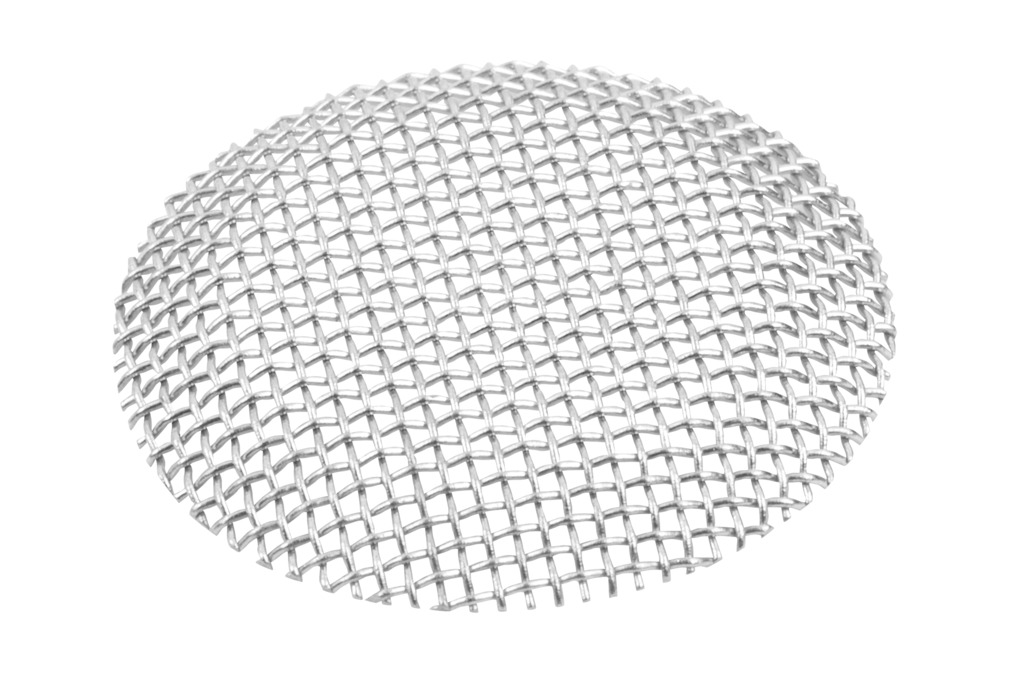

Available spare parts: silencer, filter screen
