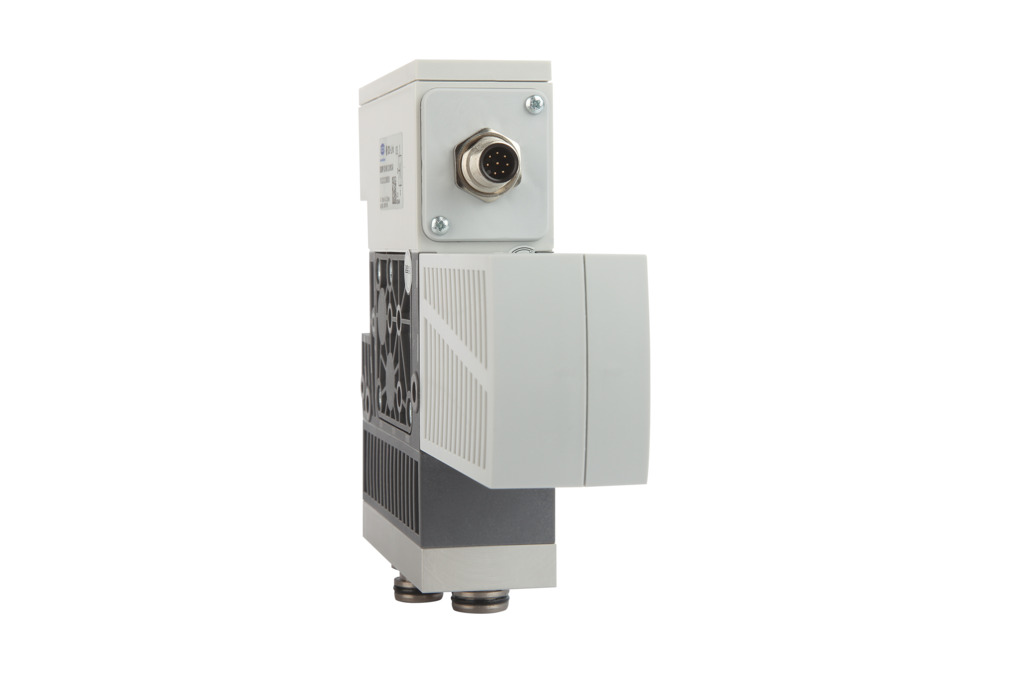

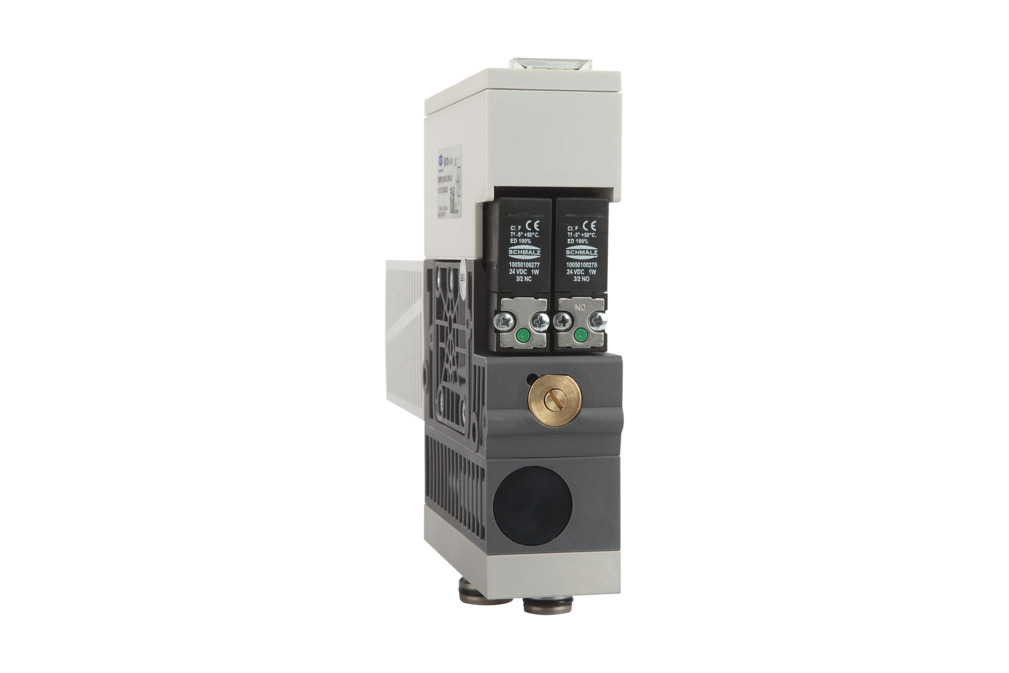

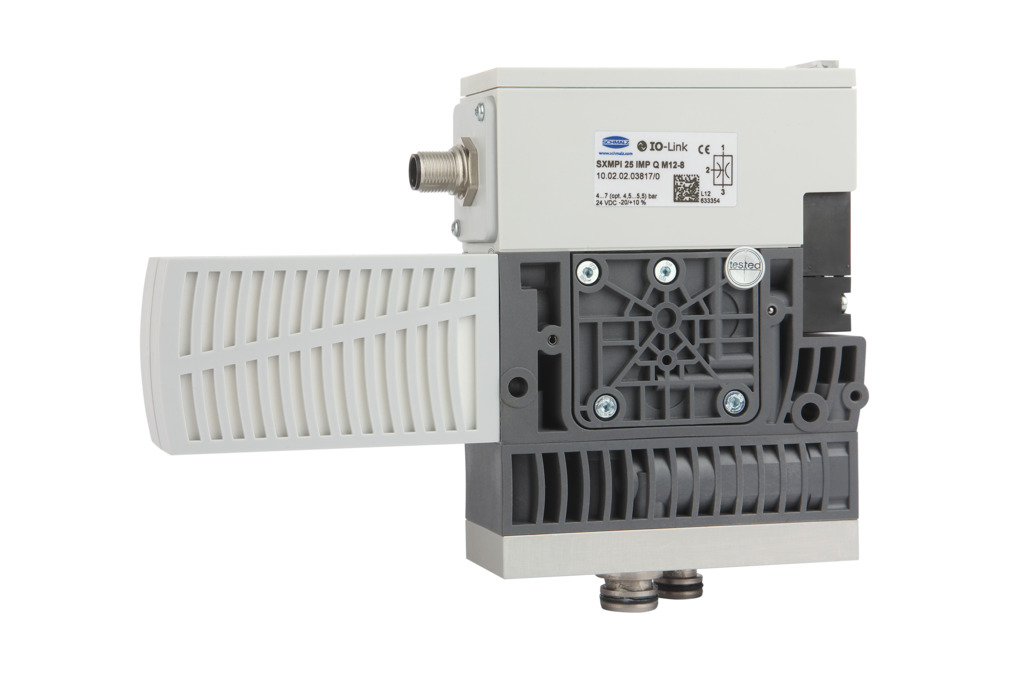

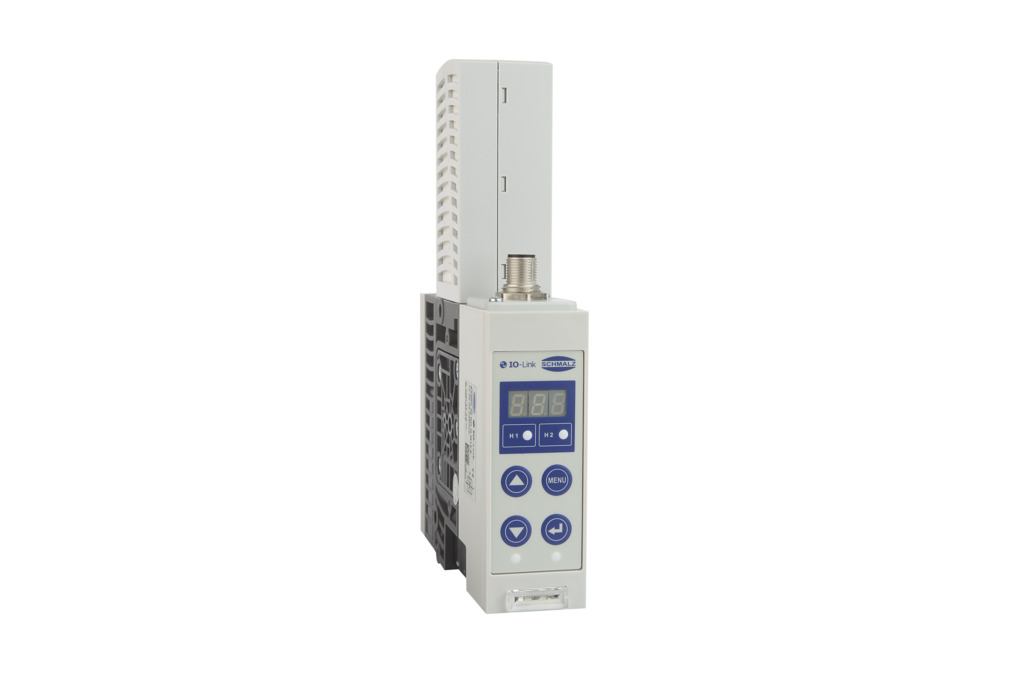

SXMPi 25 IMP Q M12-8

Part no.: 10.02.02.03817

Compact ejector with Condition Monitoring, power blow-off function and pneu. air-saving function

Nozzle diameter2.5 mm
Control valveImpulse valve
Electrical connectionMale connect M12, 8 pol
CommunicationIO-Link (Class A)
Suction rate (max.)185 l/min
Air consumption suction290 l/min
Pressure range (operating pressure)3.0 ... 6.0 bar
Max. vacuum-850 mbar
Sound level free67 dB(A)
Protection type IPIP 65
SXMPi 25 IMP Q M12-8

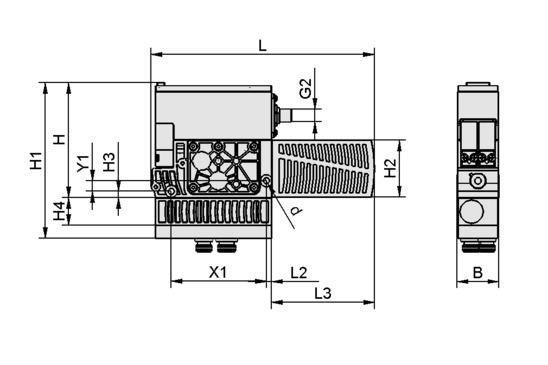

Attribute Value
B 39 mm
d 5.50 mm
G2 M12x1-M
H 108 mm
H1 146 mm
H2 54 mm
H3 6 mm
H4 26 mm
L 210 mm
L2 5 mm
L3 97 mm
X1 89 mm
Y1 10 mm
Attribute Value
Nozzle diameter 2.50 mm
Degree of evacuation 85 %
Suction rate (max.) 185 l/min
Suction rate (max.) 11.10 m³/h
Suction rate (max.) 6.53 cfm
Air consumption suction 290 l/min
Air consumption suction 17.40 m³/h
Air consumption suction 10.24 cfm
Sound level free 67 dB(A)
Pressure range (operating pressure) 43.5 ... 87.0
Pressure range (operating pressure) 3.0 ... 6.0 bar
Max. air consumption blow off 320 l/min
Recomm. internal hose diameter compressed air 8 mm
Recomm. internal hose diameter vacuum 9 mm
Control valve Impulse valve
Weight 0.96 kg
Operating temperature 0 ... 50 °C
Product family SXMPi


Note: The supply voltage for vacuum switches and solenoid valves is 24V DC Air consumption: At optimal operating pressure Hose diameter: For max. length 2 m
