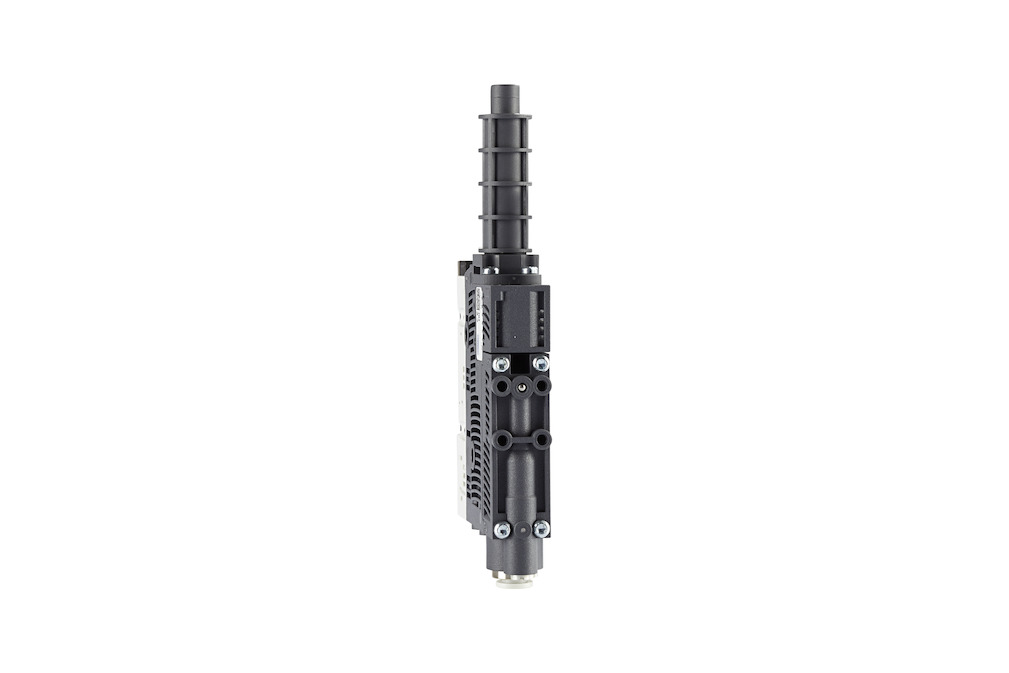

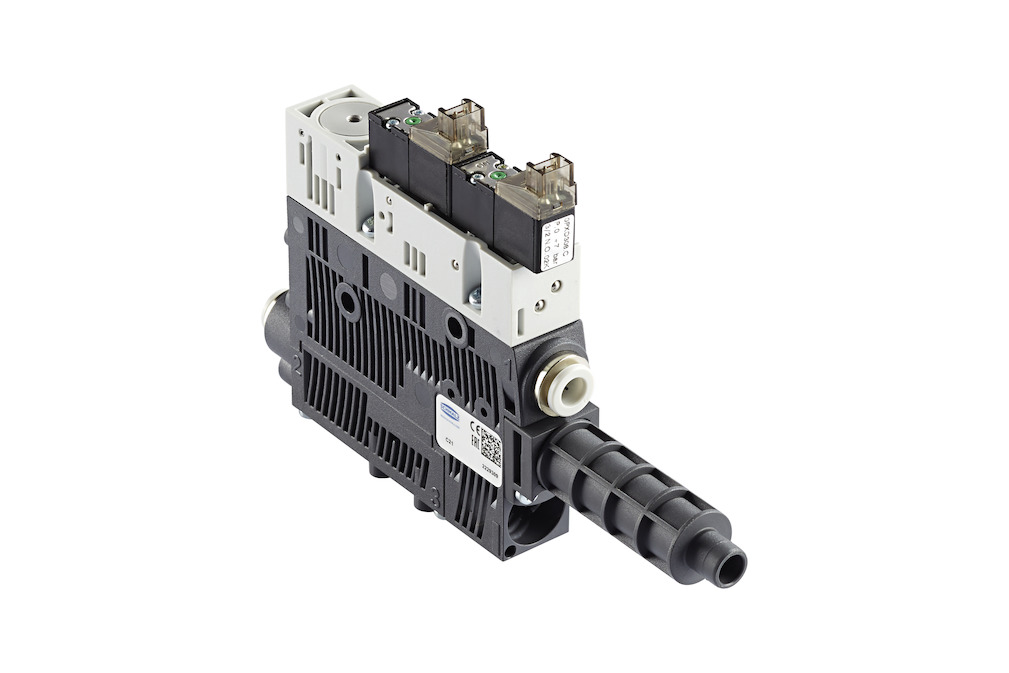

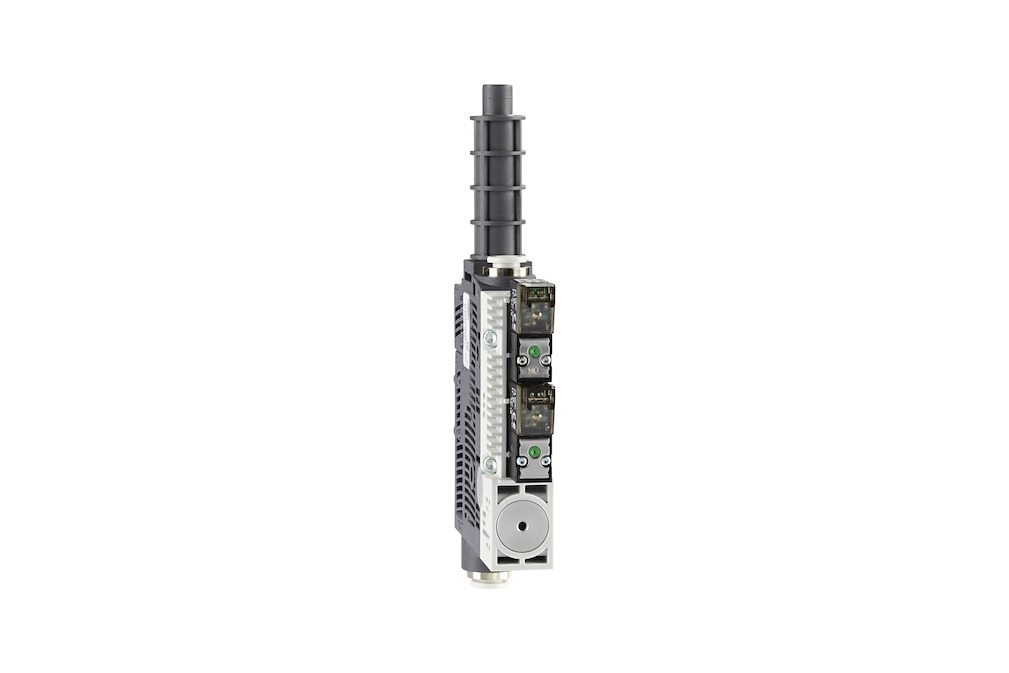

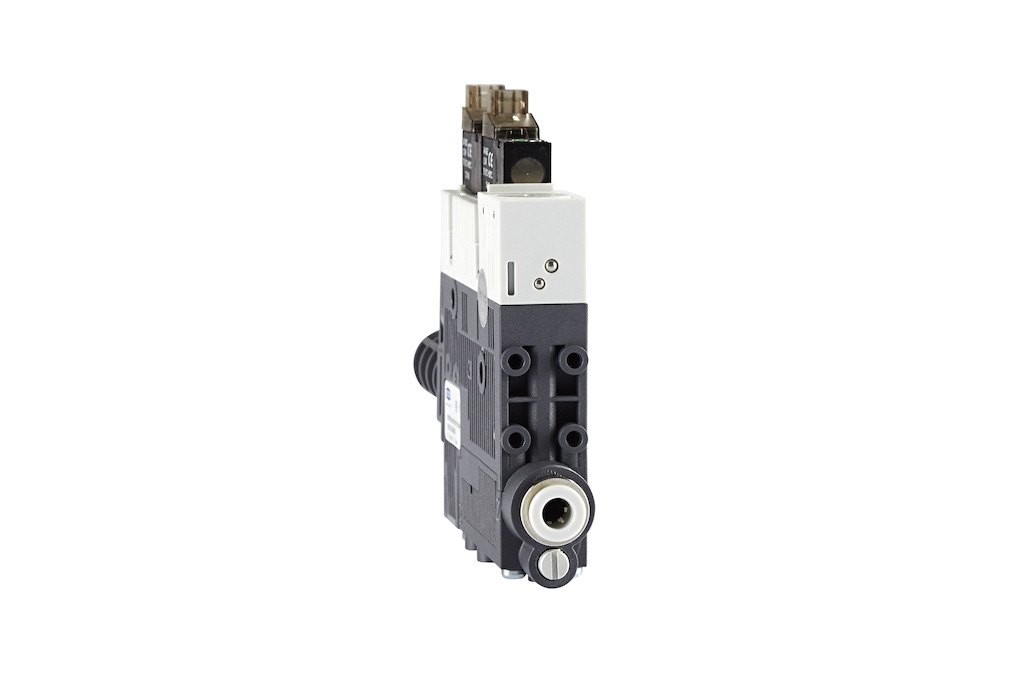

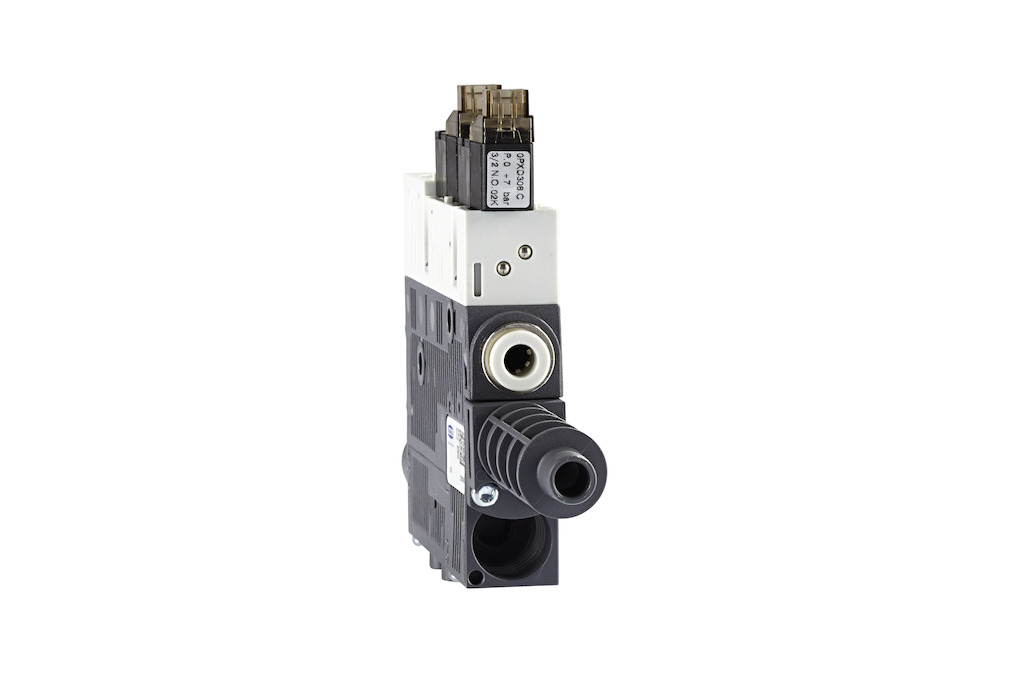

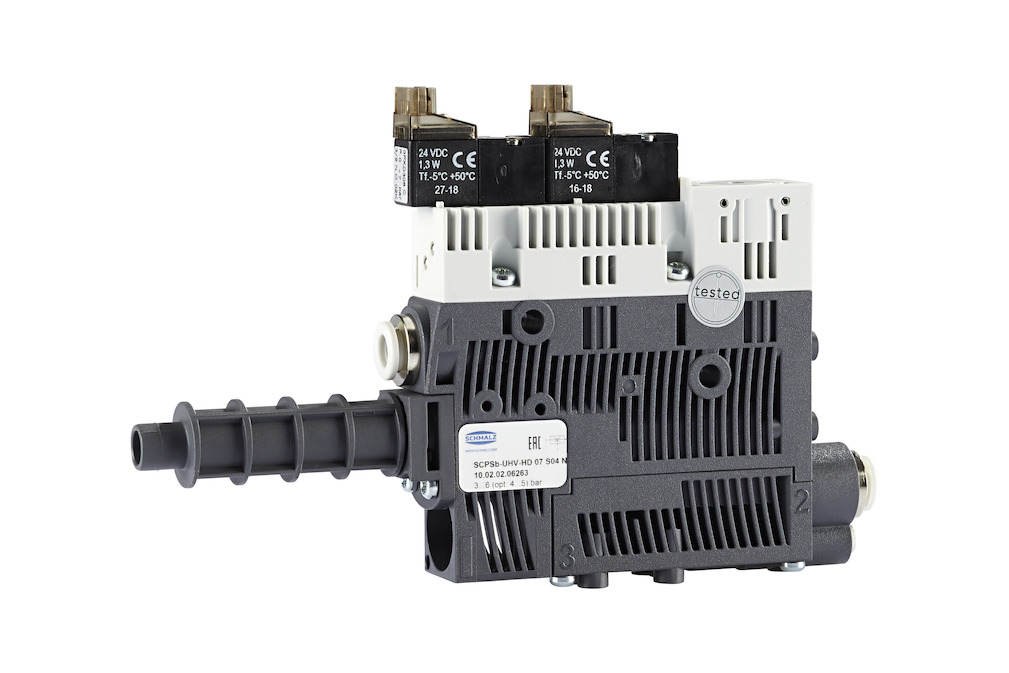

SCPSb-UHV-HD 07 S04 NO

Part no.: 10.02.02.06263

Compact ejector with special nozzle technology for increased vacuum level

construction shape compact ejectorsHD
Nozzle diameter7 mm
ConnectionHose D6(1)-D6(2)
Suction rate (max.)13 l/min
Air consumption suction17.2 l/min
Sound level free62 dB(A)
Pressure range (operating pressure)3.0 ... 6.0 bar
Max. vacuum-910 mbar
Control valveNormally open
Protection type IPIP 40 (with plug)
SCPSb-UHV-HD 07 S04 NO

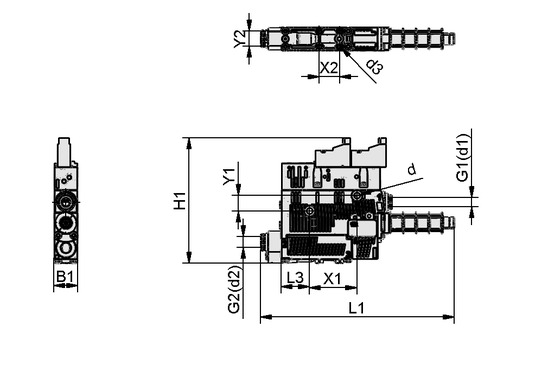

Attribute Value
B 18 mm
B1 18.60 mm
D 16.50 mm
d 4.40 mm
D2 9 mm
d3 2.60 mm
H 78 mm
H2 40.80 mm
H3 47.50 mm
H4 16.50 mm
H5 5.50 mm
H6 31.50 mm
L 135 mm
L1 151 mm
L2 81.60 mm
L3 22 mm
L4 31 mm
X1 36.90 mm
X2 16 mm
Y1 12 mm
Y2 12 mm
Attribute Value
Nozzle size 07
Degree of evacuation 91 %
Suction rate (max.) 13 l/min
Suction rate (max.) 0.80 m³/h
Air consumption suction 17.20 l/min
Air consumption suction 1 m³/h
Air consumption blow off 7.10 m³/h
Sound level free 62 dB(A)
Sound level suction 64 dB(A)
Pressure range (operating pressure) 3.0 ... 6.0 bar
Connection S04
Control valve Normally open
Weight 0.21 kg
Max. air consumption blow off 120 l/min
Operating temperature 5 ... 50 °C
Pressure range (operating pressure) 43.5 ... 87.0
Air consumption blow off 4.18 cfm
Air consumption suction 0.61 cfm
Suction rate (max.) 0.46 cfm
Max. vacuum -26.87 inHg
Product family SCPSb-UHV-HD
Metric       Imperial
The matching documentation for this product is available in this section.

Documents

Language

Operating instructions
English
Operating instructions
Deutsch
Operating instructions
Español
Operating instructions
Français
Operating instructions
Italiano
Operating instructions
Polski
Operating instructions
Türkçe
Operating instructions
Pусский
Operating instructions
한국어
Operating instructions
Suomalainen
Operating instructions
Nederlands
Operating instructions
Česky
Operating instructions
Hrvatski
Operating instructions
Slovenščina
Operating instructions
Srpski
Operating instructions
Tiếng Việt
UKCA declaration of conformity
English
UKCA declaration of conformity
Polski
UKCA declaration of conformity
Türkçe
UKCA declaration of conformity
Pусский
UKCA declaration of conformity
한국어
UKCA declaration of conformity
Suomalainen
UKCA declaration of conformity
Nederlands
UKCA declaration of conformity
Česky
UKCA declaration of conformity
Hrvatski
UKCA declaration of conformity
Slovenščina
UKCA declaration of conformity
Srpski
UKCA declaration of conformity
Tiếng Việt
EU declaration of conformity
English
EU declaration of conformity
Deutsch
EU declaration of conformity
Español
EU declaration of conformity
Français
EU declaration of conformity
Italiano
EU declaration of conformity
Polski
EU declaration of conformity
Türkçe
EU declaration of conformity
Pусский
EU declaration of conformity
한국어
EU declaration of conformity
Suomalainen
EU declaration of conformity
Nederlands
EU declaration of conformity
Česky
EU declaration of conformity
Hrvatski
EU declaration of conformity
Slovenščina
EU declaration of conformity
Srpski
EU declaration of conformity
Tiếng Việt
The documentation is also fully available in English.

Documents

Language

Operating instructions
English English
UKCA declaration of conformity
English English
EU declaration of conformity
English English

Accessories

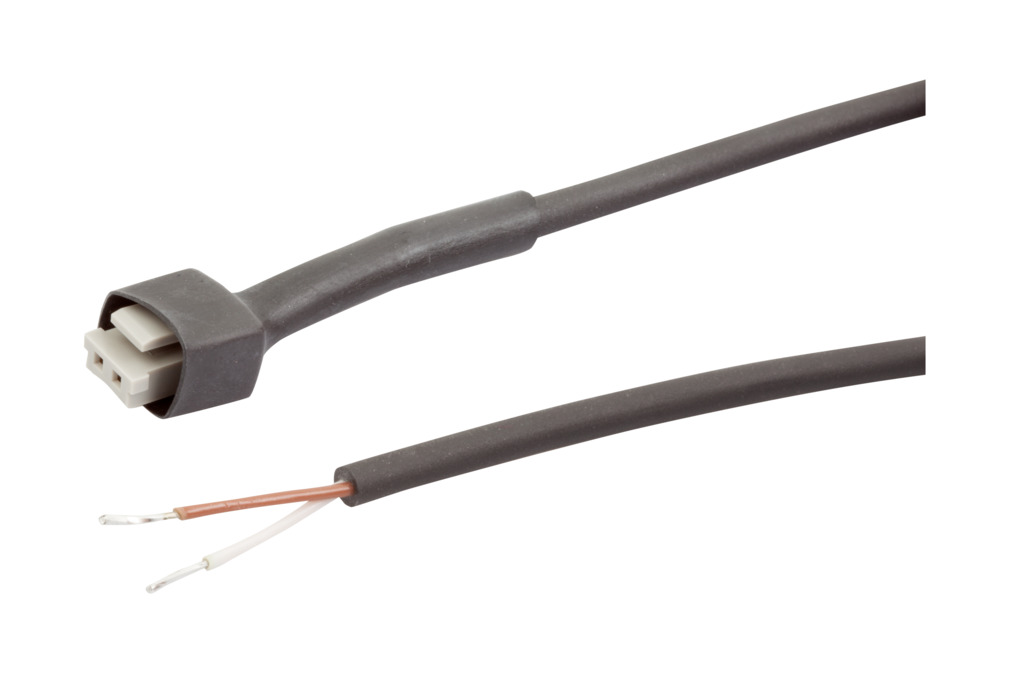

ASK B-MIC10 3000 K-2P
ASK B-MIC10 3000 K-2P
21.04.06.00086
Material hosePUR cable
Electrical connectionConnect. 10mm
ASK B-M12-5 1000 S-M12-5
ASK B-M12-5 1000 S-M12-5
21.04.05.00158
Pressure range (operating pressure) bar
Electrical connectionFem connect M12, 5 pol
Cable length1,000 mm
Material hosePUR cable
ASK B-M12-5 2000 S-M12-5
ASK B-M12-5 2000 S-M12-5
21.04.05.00211
Pressure range (operating pressure) bar
Electrical connectionFem connect M12, 5 pol
Cable length2,000 mm
Material hosePUR cable
ASV SM/CPi B-M12-5 2xS-M12-4
ASV SM/CPi B-M12-5 2xS-M12-4
10.02.02.03490
Pressure range (operating pressure) bar
Length L1,050 mm
HUT-SN-KL 75x18x9 SCPS
HUT-SN-KL 75x18x9 SCPS
10.02.02.04149
Length L75 mm
Width B18 mm
Height H9 mm
Construction useCompact ejectors SCPS / SCPSi
VFI CN6/4 50
VFI CN6/4 50
10.07.01.00241
ConnectionHose 6/4 with Cap nut
Filter pore size50 µm
VFI 6/4 50
VFI 6/4 50
schmalz-select
10.07.01.00328
ConnectionHose 6/4
Filter pore size50 µm

Ordering information: SCPSb-UHV-HD 07 S04 NO

Compact ejector SCPSb- / SCPS- / SCPSc- / SCPSi-UHV-HD is delivered as a ready-to-connect product (without connection cable).

Available accessories: connection cable, distributor, top-hat rail clamp, filter, compressed air connection plate, mounting set
